Beha-Amprobe 33XR-A Digital Multimeter
Designed for use by field service technicians, Beha-Amprobe's 33XR-A is a manual ranging digital multimeter with a wide variety of electrical testing procedures.
This digital multimeter can be used to test DC voltage, AC voltage, frequency, temperature, AC/DC current, continuity and diode across several measurement ranges and with high levels of accuracy.
If you accidentally manage to connect up the included test leads wrongly into the 33XR-A, this digital multimeter will sound an input warning tone to let you know about it. This digital multimeter also includes a MIN/MAX mode, allowing users to calculate the minimum/maximum values for a selected range over a period of time.
As a manual ranging multimeter, the 33XR-A gives users full control over measurement ranges using the built-in rotary dial. Measurements are shown on the 3999 count LCD screen as a digital readout plus as an analogue reading on the built-in 41-segment analogue bar graph display.
As standard Beha-Amprobe's 33XR-A digital multimeter ships with a magnetic mounting kit, allowing you to place the meter on a metallic surface for easy, hands-free use.
Beha-Amprobe 33XR-A Digital Multimeter Key Features
- DC Voltage to 1000V
- AC Voltage to 750V
- Frequency to 40MHz
- Temperature to 1000°C
- AC/DC current to 10A with full safety fuse
- Continuity with integrated beeper
- Diode with 1.0mA test current
- Input warning tone sounds alert when test leads are inserted into the wrong jack
- MIN/MAX mode calculates the minimum and maximum values taken over a period of time
- Relative, peak and data hold functions
- Automatic power off helps save battery life
- Separate door for easy access to batteries and fuses
- Mount hands-free on a surface with the included magnetic strap

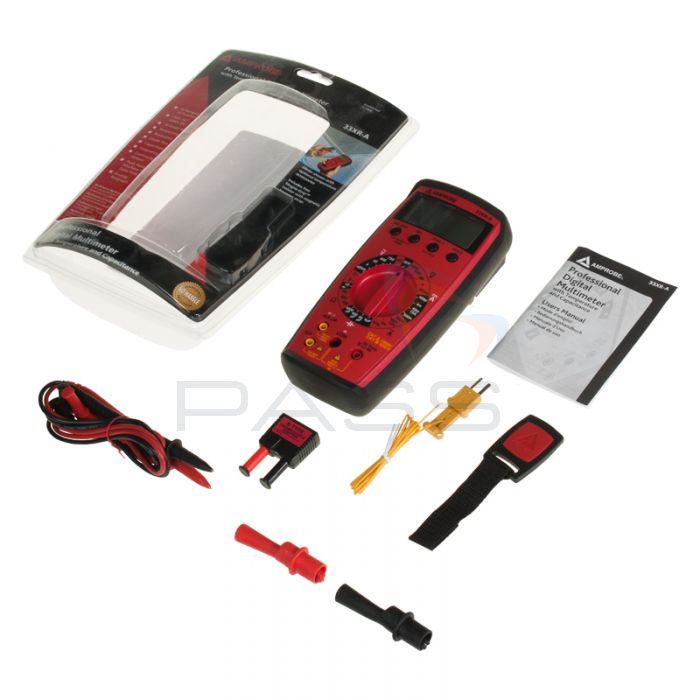

What's Included?
- Beha-Amprobe 33XR-A Digital Multimeter
- Magne-Grip Holder with Magnetic Hanging Strap
- User Manual
- Type-K Thermocouple
- Batteries (Installed)
- Test Leads
Beha-Amprobe 33XR-A Technical Specifications
| Display | 3 and 3/4 digit LCD, 3999 counts with 41 segment analogue bar graph |
| Display Update Rate | 2/sec, nominal |
| Power Battery | 9V NEDA 1604, JIS 006P, IEC 6F22 |
| Battery Life | 300 hours typical (alkaline) |
| Operating Temperature | 0 to 45°C at <70% RH |
| Storage Temperature | -20 to 60°C, 0 to 80% RH. with battery removed from meter |
| Dimensions | 196 x 92 x 60mm (7.7 x 3.5 x 2.3") |
| Weight | 400g (0.9lbs) without holster, including battery |
| DC Voltage | |
|---|---|
| Ranges | 400mV, 4V, 40V, 400V, 1000V |
| Accuracy | ±(0.7% rdg + 1 digit) |
| Input Impedance | 10MΩ |
| AC Voltage (45Hz to 500Hz) | |
| Ranges | 400mV, 4V, 40V, 400V, 750V |
| Accuracy | 4V range: 200Hz to 500Hz: ±(2.0% + 4 digits) All other ranges: ±(1.5% + 4 digits) |
| DC Current | |
| Ranges | 400μA, 4mA, 40mA, 300mA, 10A |
| Accuracy | 400μA to 300mA ranges: ±(1.0% rdg + 1 digit) 10A range: ±(2.0% rdg + 3 digits) |
| Resolution | 0.1μA |
| Voltage Burden | 400μA range: 1mV/μA 4mA range: 100mV/1mA 40mA range: 12mV/1mA 300mA range: 4mV/1mA 10A range: 100mV/1A |
| AC Current (45 to 500Hz) | |
| Ranges | 400μA, 4mA, 40mA, 300mA, 10A |
| Accuracy | 400μA to 300mA ranges: ±(1.5% rdg + 4 digits) 10A range: ±(2.5% rdg + 4 digits) |
| Resolution | 0.1μA |
| Voltage Burden | See DC current |
| Resistance | |
| Ranges | 400Ω, 40kΩ, 4MΩ |
| Accuracy | 400Ω and 40kΩ ranges: ±(1.0% rdg + 4 digits) 4M range: ±(1.2% rdg + 4 digits) |
| Resolution | 100mΩ |
| Open Circuit Voltage | 400Ω range: 3.0V DC All other ranges: 0.5V DC typical |
| Capacitance | |
| Ranges | 4μF, 40μF, 400μF, 4000μF |
| Accuracy | 4μF range: ±(5.0% rdg + 10 digits) 40μF, 400μF ranges: ±(5.0% rdg + 5 digits) |
| Resolution | 0.1μF |
| Test Voltage | <3.0V |
| Test Frequency | 10Hz |
| Input Protection μA/mA Input | 0.315A/1000V fast blow ceramic fuse 6.3 x 32mm |
| Temperature | |
| Ranges | -20 to 1000°C, -4 to 1832°F |
| Accuracy | -20 to 10°C: ±(2.0% rdg + 4°C) 10 to 200°C: ±(1.0% rdg + 3°C) 200 to 1000°C: ±(3.0% rdg + 2°C) -4 to 50°F: ±(2.0% + 8°F) 50°F to 400°F: ±(1.0% rdg + 6°F) 400 to 1832°F: ±(3.0% rdg + 4°F) |
| Resolution | 1°C, 1°F |
| Frequency (Autoranging) | |
| Ranges | 4kHz, 40kHz, 400kHz, 4MHz, 40MHz |
| Accuracy | ±(0.1% rdg + 3 digits) |
| Resolution | 1Hz |
| Sensitivity | 10Hz to 4MHz: >1.5V AC RMS 4MHz to 40MHz: >2V AC RMS, <5V AC RMS |
| Minimum Pulse Width | >25ns |
| Duty Cycle Limits | >30% and <70% |
| Continuity | |
| Audible Indication | <35Ω |
| Response Time | 100ms |
| Diode Test | |
| Test Current | 1.0mA (approx) |
| Accuracy | ±(1.5 % rdg + 3 digits) |
| Open Circuit Voltage | 3.0V DC typical |
| Peak Hold | |
| AC Voltage Accuracy | 40V to 750V: ±(3.0% rdg + 60 digits) |
| AC Current Accuracy | ±(3.0% rdg + 60 digits) |
| Response Time | >1ms |
| Overload Protection | |
| AC/DC Voltage | 400mV range: 1000V DC or 750V AC RMS 15 sec All other ranges: 1000V DC or 750V AC RMS |
| AC/DC Current | μA/mA input: 0.315A / 1000V fast-blow ceramic (6.3 x 32mm) 10A input: 10A/1000V fast-blow ceramic (10 x 38mm) (10A for 4 minutes maximum followed by a 12 minute cooling period) |
| Resistance | 1000V DC or 750V AC RMS |
| Continuity | 1000V DC or 750V AC RMS |
| Diode Test | 1000V DC or 750V AC RMS |
| Capacitance | 0.315A / 1000V fast-blow ceramic (6.3 x 32mm) |
| Temperature | 1000V DC or 750V AC RMS |
| Frequency | 1000V DC or 750V AC RMS |
| SKU | 2727788 |
|---|---|
| Manufacturer Part Code | 2727788 |
| Model Ref | Amprobe 33XR-A |
| Country of Origin | Taiwan |
