Applent AT810 Digital LCR Meter

SKU
AT810
Rating:
93%
(2)
Call For Pricing

We require additional information before you purchase this product

or Call 01642 931 329 to discuss product options

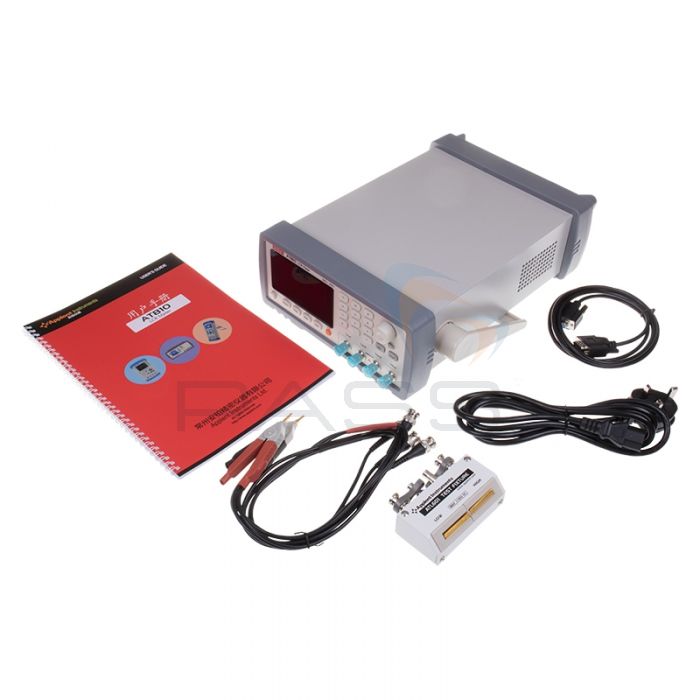

Applent AT810 Digital LCR Meter - Kit

High performance, high speed and affordable LCR meter suitable for use on production lines and as a benchtop-based instrument in laboratories.

Ideal for testing components, quality control and even for being integrated into automated testing procedures (needs component handler and system controller to work), the AT810 makes it easy to fully automate your component testing, sorting and quality control data processing.

Featuring multiple selectable testing functions (L-D, C-D, R-Q and Z-Q), adjustable testing signal frequency of 100Hz, 120Hz, 1kHz and 10kHz, adjustable signal level of 0.1V, 0.3V and 1V with high basic accuracy of 0.1%, the AT810 makes getting the measurements you need as simple as possible.

Applent AT810 Digital LCR Meter Key Features

  • Selectable testing functions: L-D, C-D, R-Q and Z-Q
  • Test signal frequency selection: 100Hz, 120Hz, 1kHz and 10kHz
  • Test signal level selection: 0.1V, 0.3V and 1V
  • Basic accuracy of 0.1%
  • Serial and parallel equivalent circuits
  • Automatic testing with 6 ranges
  • Measurement speed with 25 readings per second
  • Internal trigger, manual trigger and external handler trigger modes
  • High brightness VFD screen
  • Correction (zeroing) function
  • Built-in comparator sorting
  • Adjustable PASS/FAIL indicator limits

Applent AT810 Technical Specifications

Please note: accuracy is defined as meeting all of the following conditions.

  • Temperature: 23°C ±5°C
  • Humidity: ≤65% RH
  • Zeroing: open and short correction
  • Warm up time: 30 min or more
  • Rate: slow
  • 1 year calibration cycle
  • Test frequency accuracy: 0.02%
  • Test signal level: 10%
  • Basic accuracy: 0.1%
ParameterMeasurement Range
L 0.01μH to 9999H
C 0.01pF to 9999mF
R, Z 0.0001Ω to 99.99MΩ
D 0.0001 to 9.999
Q 0.0001 to 999.9
θd -179.99° to 179.99°
θr -3.1416 to 3.1416
Other Specs
Measurement Speed 25 times/sec
10 times/sec
3 times/sec
Output Impedance 30, 50 and 100Ω
Ranging Auto, Hold range. Total 6 ranges
Equivalent Circuit Series and parallel
Correction Function OPEN/SHORT
Beep Feature OFF/PASS/FAIL
Trigger Mode Internal, manual, external and bus trigger
Built-in Interface Handler interface and RS232 interface
Programming Language SCPI
Environmental Data
Temperature and Humidity Range 15 to 35°C, 80% RH or less
Storage Temperature and Humidity Range 0 to 50°C, 10 to 90% RH
Power Supply AC 198 to 252V, 48.5 to 62.5Hz
Fuse 1A slow-blow
Maximum Rated Power 30VA
Weight 3.5kg (net)
