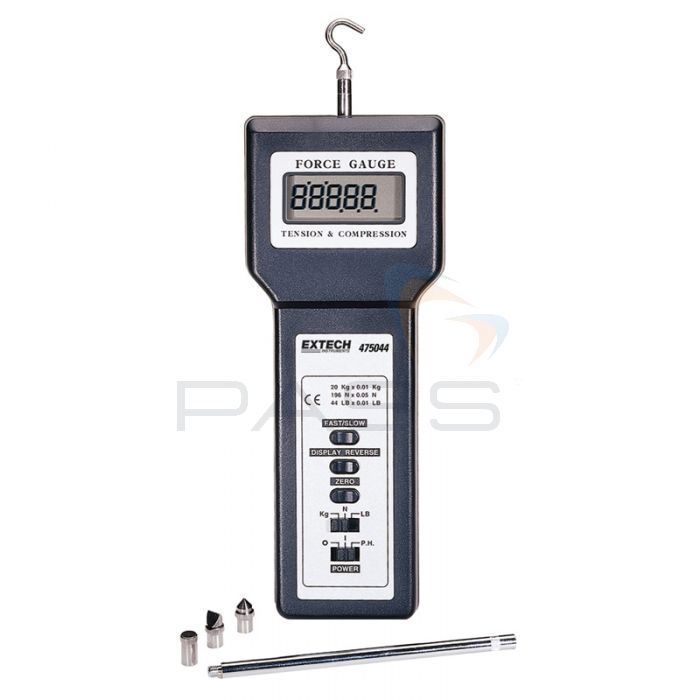

With the ability to measure push/pull force up to 20kg, 44lbs and 196 newtons, the Extech 475044 is ideal for measurements of force in absolutely any location.
All measurements on the 475044 are carried out with high accuracy and resolution to ensure that measurements are always exactly what you'd expect. Results are relayed through an LCD digital screen which is on a reversible display, allowing the angle to be adjusted when working in difficult areas.
It's possible to configure this force gauge to take readings at either fast slow rates, it comes with a zero adjust button and peak hold switch and includes indicators for overrange and low battery.
Extech 475044 High Capacity Force Gauge Key Features
- Measurement range to 44lbs, 20kg or 196 newtons
- High accuracy - ±(0.5% + 2 digits)
- 0.01lbs, 0.01kg and 0.05 newton resolution
- 30kg overload capacity
- Fast and slow update rates
- Peak hold function
- Reversible display
- Zero adjust push button
- Overange and low battery indicators
Full List of Products Included
- Extech 475044 High Capacity Force Gauge
- Hook Adapor
- Compression Adapters (Flat, Cone and Chisel Head)
- 5" Extension Rod
- 6 x AA Batteries
- Carrying Case
Extech 475044 Technical Specifications
Range | 44 lbs, 20kg, 196 Newtons |
Accuracy | ±(0.5% + 2 digit) |
Resolution | 0.01lbs, 0.01kg, 0.05 Newtons |
Overload Capacity | 30kg |
Display | 5 digits, 0.4" (10mm) LCD display |
Update Rate | Fast mode 0.2 secs; Slow mode 0.6 secs |
Full Scale Deflection | 2.00mm |
Transducer Type | Load Cell |
Peak Hold | Freezes Max reading on display |
Power Supply | Six 1.5V AA (UM-3) batteries or DC 9V adaptor (not included) |
Weight | 1.2lbs (551g) |
Size | 8.9 x 3.3 x 1.5" (227 x 83 x 39mm) |
0 Reviews
Overall Rating
Additional Information
SKU | 475044 |
---|---|
Manufacturer Part Code | 475044 |
Country of Origin | Taiwan |
