Fluke 115 Digital Multimeter

SKU
FLUDM2
Rating:
88%
(6)
Reward Points
:
204
£244.80 £204.00
In Stock
Advice & Support
Price Match Request
Best Seller

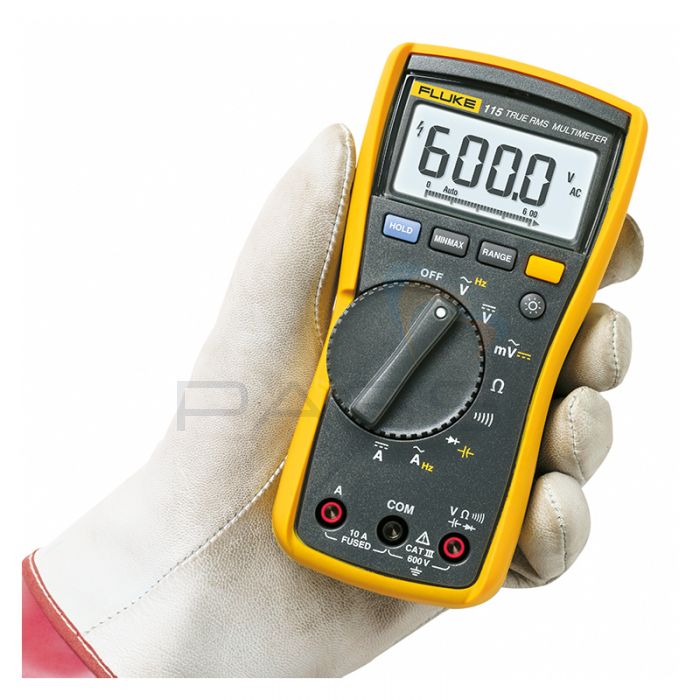

Fluke 115 Digital Multimeter in gloved hand
Buy a Fluke Get a Free Fluke Logo

* Buy a Fluke (Worth £150+ Ex VAT) and Choose a Free Fluke!

Available until 31/08/24. For more details and to see your choice of free Fluke tool - View Offer

Only available from authorised Fluke distributors, such as PASS Ltd. Terms and conditions apply.

An upgraded version of Fluke's 114 multimeter, the 115 includes the ability to measure resistance, continuity, frequency, capacitance and diode.

Fluke's 110 range of multimeters have been designed with electricians in mind, giving easy access to all needed functions via a rotary dial on the front of the tester. The 115 is small enough to hold in one hand, giving the user the flexibility to hold test leads in the other.

This tester can measure DC and AC voltage up to 600V, continuity to 600Ω, resistance up to 40MΩ, amps to 10A and frequency up to 50kHz. Testing results can be carried out with true-RMS enabled to accurately measure on irregular signals.

A built-in LoZ mode on the 115 also ensures that accuracy is maintained and filters out the effects of ghost voltages. MIN/MAX/AVG calculations are also possible using this meter, allowing signal fluctuations to be tracked and recorded.

Fluke 115 Multimeter Key Features

  • Resistance, continuity, frequency, capacitance and diode testing
  • Measures up to 10A (20A overload for 30 seconds)
  • Large size white backlit LCD screen ensures operation in poor lighting conditions
  • Compact ergonomic design makes the tester easy to hold in one hand
  • True-RMS
  • MIN/MAX/AVG readings
  • CAT III 600V safety rated

What's Included?

  • Fluke 115 Multimeter
  • TL75 Test Leads
  • Rubber Boot
  • User Manual
  • 9V Battery

Part of the Fluke 110 Series of Digital Multimeters

This digital multimeter is just one of four models available in the Fluke 110 series.

The following table outlines the difference between each model in the series.

Model Number 114 115 116 117
True RMS
Display Counts 6000 6000 6000 6000
Backlight
Analogue Bargraph
AutoVolt (Automatic AC/DC Voltage Selection) -
VoltAlert (Non-Contact Voltage Detector) - - -
Built-In Thermometer - - -
LoZ (Low Input Impedance) -
MIN/MAX/AVG Modes
Resistance/Continuity Tests
Frequency, Capactiance and Diode Tests -
Microamps Mode - - -
Display Hold
Auto/Manual Ranging
Low Battery Indication
Compact Case + Removable Holster

Fluke 115 Technical Specifications

Specifications
Maximum voltage between any terminal and earth ground

 600 V
Surge protection

 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
Display
Digital:  6,000 counts, updates 4 per second
Bar graph

 33 segments, updates 32 per second
Operating Temperature

 -10 °C to + 50 °C
Storage Temperature

 -40 °C to + 60 °C
Battery type

 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life

 400 hours typical, without backlight
Accuracy Specifications
DC millivolts
Range:  600.0 mV
Resolution:  0.1 mV
Accuracy:  ± ([% of reading] + [counts]): 0.5% + 2
DC volts
Range/Resolution:  6.000 V / 0.001 V
Range/Resolution:  60.00 V / 0.01 V
Range/Resolution:  600.00 V / 0.1 V
Accuracy:  ± ([% of reading] + [counts]): 0.5% + 2
AC millivolts1 true-rms
Range:  600.0 mV
Resolution:  0.1 mV
Accuracy:  1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)
AC volts1 true-rms
Range/Resolution:  6.000 V / 0.001 V
Range/Resolution:  60.00 V / 0.01 V
Range/Resolution:  600.0 V / 0.1 V
Accuracy:  1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)
Continuity
Range:  600 Ω
Resolution:  1 Ω
Accuracy:  Beeper on < 20 Ω, off > 250 Ω; detectsopens or shorts of 500 μs or longer.
Ohms
Range/Resolution:  600.0 Ω / 0.1 Ω
Range/Resolution:  6.000 kΩ / 0.001 kΩ
Range/Resolution:  60.00 kΩ / 0.01 kΩ
Range/Resolution:  600.0 kΩ / 0.1 kΩ
Range/Resolution:  6.000 MΩ / 0.001 MΩ
Accuracy:  0.9 % + 1
Range/Resolution:  40.00 MΩ / 0.01 MΩ
Accuracy:  5 % + 2
Diode Test
Range/Resolution:  2.00 V / 0.001 V
Accuracy:  0.9% + 2
Capacitance
Range/Resolution:  1000 nF / 1 nF
Range/Resolution:  10.00 µF / 0.01 µF
Range/Resolution:  100.0 µF / 0.1 µF
Range/Resolution:  9999 µF / 1 µF
Range/Resolution:  100 µF to 1000 µF
Accuracy:  1.9% + 2
Range/Resolution:  > 1000 µF
Accuracy:  5% + 20%
Lo-Z Capacitance
Range:  1 nF to 500 µF
Accuracy:  10% + 2 typical
AC amps true-rms (45 Hz to 500Hz)
Range/Resolution:  6.000 A / 0.001 A
Range/Resolution:  10.00 A / 0.01 A
Accuracy:  1.5% + 3

 20 A overload for 30-seconds max
DC amps
Range/Resolution:  6.000 A / 0.001 A
Range/Resolution:  10.00 A / 0.01 A
Accuracy:  1.0% + 3

 20 A overload for 30-seconds max
Hz (V or A input)2
Range/Resolution:  99.99 Hz / 0.01 Hz
Range/Resolution:  999.9 Hz / 0.01 Hz
Range/Resolution:  9.999 kHz / 0.001 kHz
Range/Resolution:  50 kHz / 0.01 kHz
Accuracy:  0.1% + 2

Notes:
1) All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V.
2) Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
3) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.
4) Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F

2) Frequency is ac coupled, 5Hz to 30 kHz for ac voltage

Mechanical & General Specifications
Size

 167 x 84 x 46 mm (6.57" x 3.31" x 1.82")
Weight

 550 g
Warranty

 3 years
