Fluke Connect v3001 FC Wireless DC Voltage Kit
Buy a Fluke Get a Free Fluke Logo

* Buy a Fluke (Worth £150+ Ex VAT) and Choose a Free Fluke!

Available until 31/08/24. For more details and to see your choice of free Fluke tool - View Offer

Only available from authorised Fluke distributors, such as PASS Ltd. Terms and conditions apply.

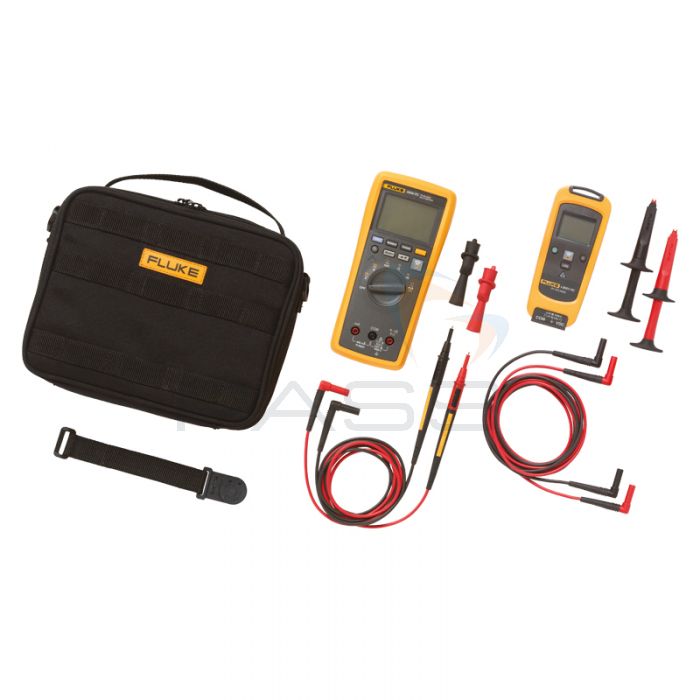

This bundle pack of Fluke Connect equipment includes everything you'll need for setting up a wireless network for monitoring DC voltage.

The kit includes:

  • Fluke 3000 FC Series Wireless Multimeter
  • Fluke v3001 DC Voltage Module
  • TL175 Test Leads
  • TL222 Test Leads
  • AC175 Alligator Clips
  • AC220 Alligator Clips
  • Magnetic Hanging Strap

Both the multimeter and the voltage module can be used either individually or can alternatively be used together to monitor voltage wirelessly (up to 20m away from the original measurement point).

What Is Fluke Connect?

With Fluke Connect, testing instruments can wirelessly interface with each other and send information over a wireless network. In this application, you'd set up the voltage module at a measurement point, stand at a safe distance and read back the results on the included multimeter.

Fluke Connect is also available on other Fluke instruments, PC (requires the use of the pc3000 adapter - sold separately) and can now even be used on your smartphone by using the Fluke Connect app!

The following video, courtesy of Fluke, has more information on Fluke Connect:

With Fluke Connect you can do absolutely everything from managing your testing data to live video calling colleagues using your smartphone.

Fluke 3000 FC Wireless Digital Multimeter

Carries out all standard electrical measurements and comes with Fluke wireless technology.

  • AC/DC voltage measurements to 1000V
  • AC/DC current measurements with 0.01mA resolution
  • Continuity, resistance, diode, capacitance and frequency measurements
  • MIN/MAX recording
  • CAT III 1000V and CAT IV 600V rated
  • IP54 ingress protection

Fluke v3001 FC Wireless DC Voltage Module

Connect and monitor DC voltage + read back the results on the included multimeter.

  • Wirelessly transmits data to other Fluke Connect certified equipment
  • DC voltage measurements to 1000V DC
  • Use as a standalone meter or as part of the system
  • Logging function stores up to 65000 readings

Fluke 3000 FC Wireless Multimeter Specifications

For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18 to 28°C with relative humidity of 0 to 90%. Accuracy specifications take the form of ± [[ % of reading ] + [ Number of least significant digits ]].

AC Voltage
Range Resolution Accuracy
    45Hz to 500Hz 500Hz to 1KHz
600.0mV 0.1mV 1.0% + 3 2.0% + 3
6.000V 0.001V
60.00V 0.01V
600.0V 0.1V
1000V 1V
Note

All AC voltage ranges are specified from 1% of range to 100% of range.
Crest factor of ≤ 3 at full scale up to 500V, decreasing linearly to crest factor < 1.5 at 1000V
For non sinusoidal waveforms, add ± (2% of reading + 2% of full scale) typical, for crest factor up to 3.
Do not exceed 10V Hz

DC Voltage, Continuity, Resistance, Diode Test and Capacitance
Function Range Resolution Accuracy
mV 600.0mV 0.1mV 0.09% + 2
V 6.000V 0.001V 0.09% + 2
60.00V 0.01V
600.0V 0.1V
1000V 1V 0.15% + 2
Ω 600.0Ω 0.1Ω 0.5% + 1
6.000kΩ 0.001kΩ
60.00kΩ 0.01kΩ
60.00kΩ 0.1kΩ
600.0kΩ 0.001MΩ
50.00MΩ 0.01MΩ 1.5% + 3
Diode Test 2.000V 0.001V 1% + 2
μF 1000nF 1nF 10% typical
10.00μF 0.01μF
100.0μF 0.1μF
9999μF 1μF
Note In the 9999μF range for measurements to 1000μF, the measurement accuracy is 1.2% + 2
AC and DC Current
Function Range Resolution Accuracy
mA AC (45Hz to 1KHz) 60.00mA 0.01mA 1.5% + 3
400.0mA
mA DC 60.00mA 0.01mA 0.5% + 3
  400.0mA 0.1mA
Note All AC current ranges are specified from 5% of range to 100% of range
Input burden voltage (typical): 400mA input 2mV/mA
400.0mA accuracy specified up to 600mA overload
Frequency
Range Resolution Accuracy
99.99Hz 0.01Hz 0.1% + 1
999.9Hz 0.1Hz
9.999kHz 0.001Hz
99.99kHz 0.01kHz
Input Characteristics
Function Overload Protection Input Impedance (Nominal) Common Mode Rejection Ratio (1kΩ Unbalance) Normal Mode Rejection
1100V rms >10MΩ < 100pF > 120 dB at dc, 50 Hz or 60 Hz > 60 dB at 50 Hz or 60 Hz
1100V rms >10MΩ < 100pF > 60 dB, dc to 60 Hz
1100V rms >10MΩ < 100pF > 120 dB at dc, 50 Hz or 60 Hz > 60 dB at 50 Hz or 60 Hz
Open Circuit Test Voltage Full Scale Voltage Typical Short Circuit Current
1100V rms <2.7V DC To 6MΩ: <0.7VDC
50MΩ: <0.9V DC
<350mA
1100V rms <2.7V DC 2.000V DC <1.1mA
Function Overload Protection
Overload
mA Fused, 44/100A, 1000V FAST Fuse
 600mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX Recording
Function Accuracy
DC Functions The specified accuracy of the measurement function ± 12 counts for changes > 350 ms in duration.
AC Functions The specified accuracy of the measurement function ± 40 counts for changes > 900 ms in duration.
General Specifications
Maximum Voltage Between Any Terminal and Earth Ground 1000V DC or AC RMS
Ω Fuse Protection From A Inputs 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD) Update rate: 4/sec
Votls, amps, ohms: 6000 counts
Frequency: 10,000 counts
Capacitance: 1,000 counts
Battery Type 3 x AA alkaline batteries, NEDA 15A IEC LR6
Battery Life 250 hours maximum
RF Communications 2.4GHZ ISM Band
RF Communication Range Open air, unobstructed: Up to 20m
Obstructed, sheetrock wall: Up to 6.5m
Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m
Temperature Operating: -10 °C to 50 °C
Storage: -40 °C to 60 °C
Temperature Coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Relative Humidity 0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C)
Altitude Operating: 2,000 m
Storage: 12,000 m
Electromagnetic Compatability EMI, RFI, EMC, RF EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249,
FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety Compliance ANSI/ISA 61010-1 / (82.02.01): 3rd edition
CAN/CSA-C22.2 No 61010-1-12: 3rd edition
UL 61010-1: 3rd edition
IEC/EN 61010-1:2010
Certifications CSA, FCC, CE
Ingress Protection (IP) Rating IP54
Pollution Degree 2
Size (H x W x L) 4.75 cm x 9.3 cm x 20.7 cm (1.87 in x 3.68 in x 8.14 in)
Weight 340g (12oz)

Fluke v3001 Technical Specifications

mV DC
Range 600mV
Resolution 0.1mV
Accuracy 0.09% + 3
V DC
Range 6V
60V
600V
Resolution 0.001V
0.01V
0.1V
Accuracy 0.09% + 3
Range 1000V
Resolution 1V
Accuracy 0.15% + 2
General Specifications
LCD w/ Backlight 3 1/2 digits, 6000 counts, 4/sec update rate
Battery Type 2 AA alkaline batteries, NEDA 15A, IEC LR6
Log Rate/Interval Adjustable by PC from 1 sec to 1hr, default 1 min
Battery Life 400 hours minimum
Memory Records up to 65000 readings
RF Communications 2.4GHz ISM band
RF Communication Range Open air, ubobstructed: Up to 20m
Obstructed, sheetrock wall: Up to 6.5m
Obstructed, concrete wall or steel electrical enclosure: Up to 3.5m
Operating Temperature -10 to 50°C
Storage Temperature -40 to 60°C
Temperature Coefficient 0.1X (specified accuracy)/°C (<18°C or >28°C)
Relative Humidity 0 to 90% (0 to 35°C)
0 to 75% (35 to 40°C)
0 to 45% (40 to 50°C)
EMC IEC 61236-1, portable
Safety Compliance IEC 61010-1, 600 V CAT IV/ 1000V CAT III, 3rd edition, pollution degree 2
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) Rating IP42
Size (H x W x D) 160mm x 66mm x 38mm (6.3in x 2.6in x 1.5in)
Weight 0.255kg (9oz)
