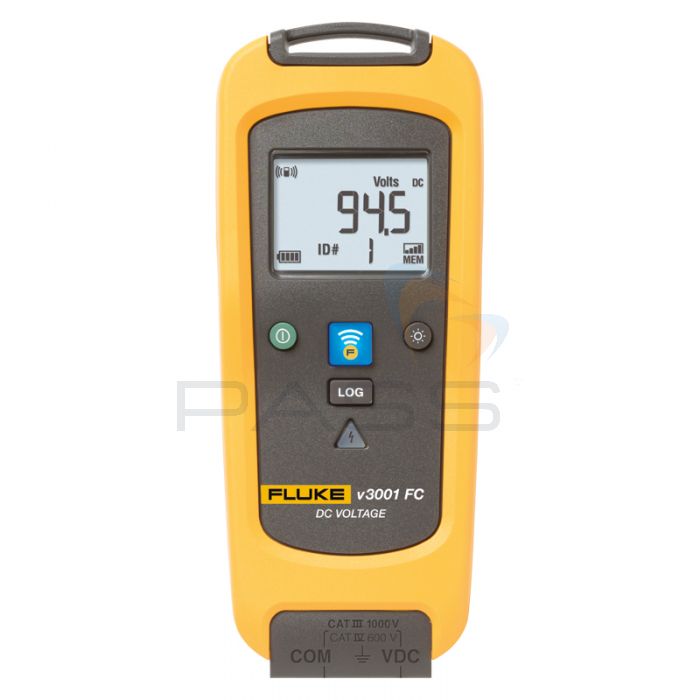

This portable, lightweight and easy-to-use DC voltage meter can be used to gain measurements of DC voltage up to 1000V and also contains the ability to wirelessly relay measurement data to other Fluke Connect enabled equipment!
To use, just set up the v3001 at the measurement point (you can even mount it on a metallic surface thanks to the included magnetic hanging strap) and stand up to 20m away from where the module is connected. You can then use a compatible meter, your PC or smartphone (requires PC adapter for PC - sold separately and Fluke Connect app for smartphones) to view back measurements completely wirelessly!
This is all possible thanks to Fluke's Connect technology which you can find out more about by watching the video below:
The v3001 is also suitable for use by itself as a standlone voltage meter. It has built-in storage of testing results and can save up to 65000 individual DC voltage readings.
Fluke v3001 FC Wireless DC Voltage Module Key Features
- Measurements of DC voltage up to 1000V
- Suitable for use by itself or as part of a measurement network
- Wireless connectivity with other Fluke Connect equipment
- Stores up to 65000 individual records
What's Included?
- Fluke v3001 Voltage Module
- TL222 Test Leads
- AC220 Alligator Clips
- Magnetic Hanging Strap
Compatibility
The v3001 can wirelessly interface with the following:
- Fluke 3000 FC Wireless Digital Multimeter
- Fluke Ti200/Ti300/Ti400 Thermal Camera
- PC (requires optional pc3000 Adapter)
- Fluke Connect Mobile app
Fluke v3001 Technical Specifications
mV DC | |
---|---|
Range | 600mV |
Resolution | 0.1mV |
Accuracy | 0.09% + 3 |
V DC | |
Range | 6V 60V 600V |
Resolution | 0.001V 0.01V 0.1V |
Accuracy | 0.09% + 3 |
Range | 1000V |
Resolution | 1V |
Accuracy | 0.15% + 2 |
General Specifications | |
LCD w/ Backlight | 3 1/2 digits, 6000 counts, 4/sec update rate |
Battery Type | 2 AA alkaline batteries, NEDA 15A, IEC LR6 |
Log Rate/Interval | Adjustable by PC from 1 sec to 1hr, default 1 min |
Battery Life | 400 hours minimum |
Memory | Records up to 65000 readings |
RF Communications | 2.4GHz ISM band |
RF Communication Range | Open air, ubobstructed: Up to 20m Obstructed, sheetrock wall: Up to 6.5m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5m |
Operating Temperature | -10 to 50°C |
Storage Temperature | -40 to 60°C |
Temperature Coefficient | 0.1X (specified accuracy)/°C (<18°C or >28°C) |
Relative Humidity | 0 to 90% (0 to 35°C) 0 to 75% (35 to 40°C) 0 to 45% (40 to 50°C) |
EMC | IEC 61236-1, portable |
Safety Compliance | IEC 61010-1, 600 V CAT IV/ 1000V CAT III, 3rd edition, pollution degree 2 |
Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
Ingress Protection (IP) Rating | IP42 |
Size (H x W x D) | 160mm x 66mm x 38mm (6.3in x 2.6in x 1.5in) |
Weight | 0.255kg (9oz) |
SKU | FLK-V3001 FC |
---|---|
Manufacturer Part Code | 4459421 |
