Either use the multimeter included with this kit to measure voltage or alternatively use the included voltage module to wirelessly and safely test voltage up to 20m away from the measurement point!

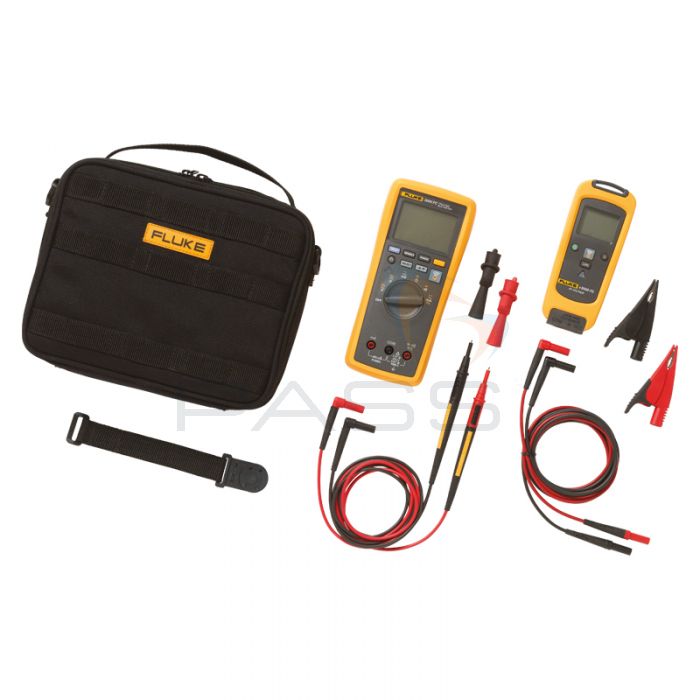

This kit comes with the following items:
- Fluke 3000 FC Series Wireless Multimeter
- Fluke v3000 AC Voltage Module
- TL175 Test Leads
- TL224 Test Leads
- AC175 Alligator Clips
- AC285 Alligator Clips
- Magnetic Hanging Strap
Wireless interfacing between the included module and the multimeter is possible thanks to Fluke's new technology, Fluke Connect.
What is Fluke Connect?
Thanks to this new technology, several of Fluke's testers can transmit their data between each other. It's now even possible to use Fluke Connect to view testing data and more on a smartphone or alternatively it can sent to PC via the use of an optional PC adapter (sold separately).
Want to learn more about Fluke Connect? Watch the video below.
Other modules are also available that allow measurements of AC current, temperature and more.
Fluke 3000 Wireless Digital Multimeter
All you need for convenient electrical measurements and troubleshooting. Easy to use, highly accurate and reliable as any other Fluke meter.
- AC/DC voltage measurements to 1000V
- AC/DC current measurements
- Continuity, resistance, diode, capacitance and frequency measurements
- MIN/MAX recording
- CAT III 1000V and CAT IV 600V rated
- IP54 ingress protection
- Wirelessly connects to other compatible Fluke meters, tools and even your own smartphone
Fluke v3000 FC Wireless AC Voltage Module
- Measure voltage and transmit it up to 20m away to a compatible tester
- Range of up to 1000V
- True RMS
- Suitable for use as a standalone voltage measurement tool or as part of a wireless system
- Stores up to 65000 individual test readings
Fluke 3000 FC Wireless Multimeter Specifications
For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18 to 28°C with relative humidity of 0 to 90%. Accuracy specifications take the form of ± [[ % of reading ] + [ Number of least significant digits ]].
AC Voltage | ||||
Range | Resolution | Accuracy | ||
45Hz to 500Hz | 500Hz to 1KHz | |||
600.0mV | 0.1mV | 1.0% + 3 | 2.0% + 3 | |
6.000V | 0.001V | |||
60.00V | 0.01V | |||
600.0V | 0.1V | |||
1000V | 1V | |||
Note |
All AC voltage ranges are specified from 1% of range to 100% of range. |
|||
DC Voltage, Continuity, Resistance, Diode Test and Capacitance | ||||
Function | Range | Resolution | Accuracy | |
mV | 600.0mV | 0.1mV | 0.09% + 2 | |
V | 6.000V | 0.001V | 0.09% + 2 | |
60.00V | 0.01V | |||
600.0V | 0.1V | |||
1000V | 1V | 0.15% + 2 | ||
Ω | 600.0Ω | 0.1Ω | 0.5% + 1 | |
6.000kΩ | 0.001kΩ | |||
60.00kΩ | 0.01kΩ | |||
60.00kΩ | 0.1kΩ | |||
600.0kΩ | 0.001MΩ | |||
50.00MΩ | 0.01MΩ | 1.5% + 3 | ||
Diode Test | 2.000V | 0.001V | 1% + 2 | |
μF | 1000nF | 1nF | 10% typical | |
10.00μF | 0.01μF | |||
100.0μF | 0.1μF | |||
9999μF | 1μF | |||
Note | In the 9999μF range for measurements to 1000μF, the measurement accuracy is 1.2% + 2 |
|||
AC and DC Current | ||||
Function | Range | Resolution | Accuracy | |
mA AC (45Hz to 1KHz) | 60.00mA | 0.01mA | 1.5% + 3 | |
400.0mA | ||||
mA DC | 60.00mA | 0.01mA | 0.5% + 3 | |
400.0mA | 0.1mA | |||
Note | All AC current ranges are specified from 5% of range to 100% of range Input burden voltage (typical): 400mA input 2mV/mA 400.0mA accuracy specified up to 600mA overload |
|||
Frequency | ||||
Range | Resolution | Accuracy | ||
99.99Hz | 0.01Hz | 0.1% + 1 | ||
999.9Hz | 0.1Hz | |||
9.999kHz | 0.001Hz | |||
99.99kHz | 0.01kHz | |||
Input Characteristics | ||||
Function | Overload Protection | Input Impedance (Nominal) | Common Mode Rejection Ratio (1kΩ Unbalance) | Normal Mode Rejection |
1100V rms | >10MΩ < 100pF | > 120 dB at dc, 50 Hz or 60 Hz | > 60 dB at 50 Hz or 60 Hz | |
1100V rms | >10MΩ < 100pF | > 60 dB, dc to 60 Hz | ||
1100V rms | >10MΩ < 100pF | > 120 dB at dc, 50 Hz or 60 Hz | > 60 dB at 50 Hz or 60 Hz | |
Open Circuit Test Voltage | Full Scale Voltage | Typical Short Circuit Current | ||
1100V rms | <2.7V DC | To 6MΩ: <0.7VDC 50MΩ: <0.9V DC |
<350mA | |
1100V rms | <2.7V DC | 2.000V DC | <1.1mA | |
Function | Overload Protection |
Overload | ||
mA | Fused, 44/100A, 1000V FAST Fuse |
600mA overload for 2 minutes maximum, 10 minutes rest minimum |
||
MIN/MAX Recording | ||||
Function | Accuracy | |||
DC Functions | The specified accuracy of the measurement function ± 12 counts for changes > 350 ms in duration. | |||
AC Functions | The specified accuracy of the measurement function ± 40 counts for changes > 900 ms in duration. | |||
General Specifications | ||||
Maximum Voltage Between Any Terminal and Earth Ground | 1000V DC or AC RMS | |||
Ω Fuse Protection From A Inputs | 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only | |||
Display (LCD) | Update rate: 4/sec Votls, amps, ohms: 6000 counts Frequency: 10,000 counts Capacitance: 1,000 counts |
|||
Battery Type | 3 x AA alkaline batteries, NEDA 15A IEC LR6 | |||
Battery Life | 250 hours maximum | |||
RF Communications | 2.4GHZ ISM Band | |||
RF Communication Range | Open air, unobstructed: Up to 20m Obstructed, sheetrock wall: Up to 6.5m Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m |
|||
Temperature | Operating: -10 °C to 50 °C Storage: -40 °C to 60 °C |
|||
Temperature Coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) | |||
Relative Humidity | 0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C) | |||
Altitude | Operating: 2,000 m Storage: 12,000 m |
|||
Electromagnetic Compatability EMI, RFI, EMC, RF | EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249, FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE |
|||
Safety Compliance | ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010 |
|||
Certifications | CSA, FCC, CE | |||
Ingress Protection (IP) Rating | IP54 | |||
Pollution Degree | 2 | |||
Size (H x W x L) | 4.75 cm x 9.3 cm x 20.7 cm (1.87 in x 3.68 in x 8.14 in) | |||
Weight | 340g (12oz) |
Fluke V3000 Technical Specifications
Range/Resolution | 6V / 0.001V 60V / 0.01V 600V / 0.1V 1000V / 1V |
Accuracy | 45Hz to 500Hz: 1.0% + 3 500Hz to 1kHz: 2.0% + 3 |
LCD w/ Backlight | 3 1/2 digits, 6000 counts, updates 4/sec |
Battery Type | 2 AA, NEDA 15A, IEC LR6 |
Battery Life | 400 hours |
Memory | Records up to 65000 readings |
RF Communications | 2.4GHZ ISM band |
RF Communication Range | Open air, unobstructed: Up to 20m Obstructued, sheetrock wall: Up to 6.5m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5m |
Operating Temperature | -10 °C to +50 °C |
Storage Temperature | -40 °C to +60 °C |
Temperature Coefficient | 0.1 X (specified accuracy)/°C (< 18 °C or > 28 °C) |
Operating Humidity | 90 % at 35 °C, 45 % at 40 °C, 45 % at 50 °C |
Altitude | Operating: 2000m Storage: 12000m |
EMC | EN 61326-1: 2006 |
Safety Compliance | ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1: 2010 |
Safety Rating | CAT IV 600V, CAT III 1000V |
Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
Ingress Protection (IP) Rating | IP42 |
Pollution Degree | 2 |
Size (H x W x D) | 16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) |
Weight | .22kg (8oz) |
SKU | FLK-V3000 FC KIT |
---|---|
Manufacturer Part Code | 4465641 |
Model Ref | FLK-V3000 FC KIT VOLT |
