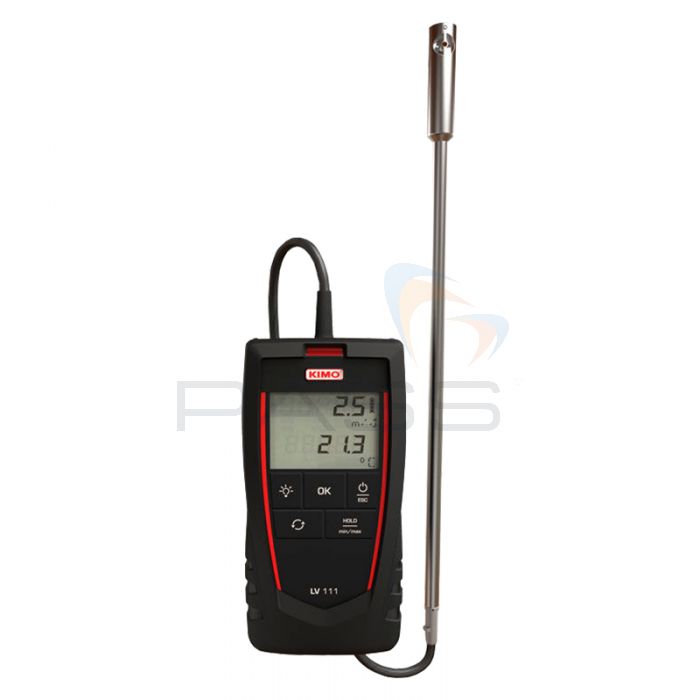

KIMO LV111 Thermo Anemometer w/ Remote 14mm Vane Probe
Work regularly with smaller ducts and find your anemometer simply won't fit? KIMO's LV111 is the tool you need.
Supplied as standard with an extra-small vane sensor (14mm diameter) attached to the body of the instrument by a coiled cable (max length of 2.4m), the KIMO LV111 is best suited for measurements in small applications, delivering high precision, reliable results when you need them without the hassle of using a larger vane.
The LV111 is a thermo-anemometer; it can be used to test air velocity, airflow and temperature. Air velocity can be measured in m/s, fpm and km/h across a range from 0.8 to 25m/s; airflow can be measured in m³/h, cfm, l/s and m³/s with range from 0 to 99,999m³/h and temperature can be measured in either Celsius/Fahrenheit across a range from -20 to +80³C.
There's more to this anemometer than just standard measurements - this instrument also includes a hold function which temporarily stores the current value shown on the screen, a backlit LCD screen and a MAX/MIN measurement mode (calculates the maximum/minimum values taken over a period of time).
KIMO LV111 Thermo Anemometer Key Features
- Precision thermo anemometer made for testing airflow, air velocity and temperature
- Small-size, 14mm diameter measurement vane attached via flexible coiled lead (max length of 2.4m)
- Ideal for use in smaller ducts and difficult applications where other anemometers may struggle
- Air velocity can be measured in m/s, fpm and km/h across a range from 0.8 to 25m/s
- Airflow can be measured in m³/h, cfm, l/s and m³/s with range from 0 to 99,999m³/h
- Temperature can be measured in either Celsius/Fahrenheit across a range from -20 to +80³C
- Automatic average
- Display of MAX/MIN values taken over a period of time
- HOLD function temporarily stores current values shown on the screen
- Backlit LCD screen
What's Included?
- KIMO LV111 Thermo Anemometer
- 14mm Vane Probe
- Calibration Certificate
- Transport Case
Optional Accessories
These may not be listed on the website. If not, please call the sales team quoting the part number (in bold) for pricing details.
- CQ15 - Magnetic Protective Housing
- RTE - Telescopic Probe Extender (1m Length) with 90° Bent End
- MT51 - ABS Transport Case
KIMO LV111 Technical Specifications
| Measuring Units | Measuring Range | Accuracy | Resolution |
|---|---|---|---|
| Air Velocity | |||
| m/s, fpm, km/h | From 0.8 to 25m/s | From 0.8 to 3m/s: ±3% of reading ±0.1m/s | 0.1m/s |
| From 3.1 to 25m/s: ±1% of reading ±0.3m/s | |||
| Airflow | |||
| m³/h, cfm, l/s, m³/s | From 0 to 99,999m³/h | ±3% of reading ±0.03 area (cm²) | 1m³/h |
| Temperature | |||
| Celsius/Farhenheit | From -20 to +80°C | ±0.4% of reading ±0.3°C | 0.1°C |
| General Specifications | |||
| Measuring Elements | Air Velocity: hall effect sensor Ambient Temperature: NTC sensor |
||
| Display | 4 lines, LCD technology. Size: 50 x 36mm 2 lines of 5 digits with 7 segments (value) 2 lines of 5 digits with 16 segments (unit) |
||
| Vane Probe Diameter | 14mm | ||
| Cable | Coiled, 0.45m extendable to 2.4m | ||
| Housing | ABS, protection: IP54 | ||
| Keypad | 5 keys | ||
| Conformity | Directives CEM 2004/108/CE and NF EN 61010-1 | ||
| Power Supply | 4 x AAA, LR03, 1.5V batteries | ||
| Battery Life | 120 hours | ||
| Ambience | Neutral gas | ||
| Operating Temperature (Instrument and Probe) | From 0 to +50°C | ||
| Storage Temperature | From -20 to +80°C | ||
| Automatic Shutoff | Adjustable from 0 to 120 minutes | ||
| Weight | 390g | ||
| SKU | K-LV111 |
|---|---|
| Manufacturer Part Code | LV 111 |
| Model Ref | LV 111 |
