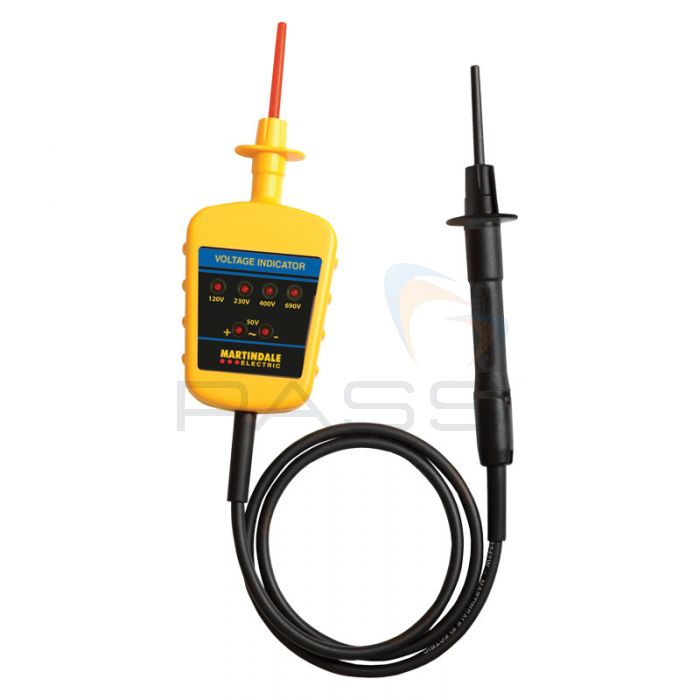

Martindale VI-15000 Voltage Indicator
Based on Martindale's popular range of voltage indicators, the VI-15000 has CAT IV safety rating, protecting it against voltage transients and enhancing the safety of the user.
This voltage indicator uses LED lights to show the level of voltage present in an electrical system. It can test from 50 to 690V (and above) and is designed to be fully compliant with GS38 regulations thanks to dual-insulated leads.
The tester requires absolutely no batteries to operate and is compatible with both AC and DC voltage.
An alternative version of this tester supplied alongside a proving unit and carrying case is also available.
Martindale VI-15000 Voltage Indicator Key Features
- Range from 50 to 690V AC/DC
- LED step voltage indicators
- Compliant with GS38 regulations
- CAT IV 1000V rated
- Finger guard and retractable/lockable prod sheath
- Doesn't require any batteries for operation
Martindale VI-15000 Technical Specifications
| Electrical | |
| Nominal Voltage Range | 50 to 1000V DC/AC RMS |
| Nominal Voltage Threshold Indications | 50, 120, 230, 400, 690V AC/DC RMS |
| Voltage Threshold Tolerance | Conforms to BS EN61243-3: 2010 |
| AC/DC Voltage Detection | Automatic |
| Range Detection | Automatic |
| Response Time | <0.1s |
| Frequency Range | DC, 1 to 400Hz |
| Test Current | <3.5mA at 1000V AC/DC RMS |
| Duty Ratio | 30s ON (operated) / 240s OFF (recovery) |
| Environmental | |
| Temperature and Humidity (Operating/Storage) | -10 to 55°C < 85% RH |
| Altitude | Up to 2000m |
| Pollution Degree | 2 |
| General | |
| Power | From circuit under test |
| Dimensions | 205 (L) x 67 (W) x 27mm (D) |
| Safety | |
| Conformance | BS EN61343-3: 2010, CAT IV 1000V Class II, double insulation |
| IP Rating | IP54 to BS EN60529 |
