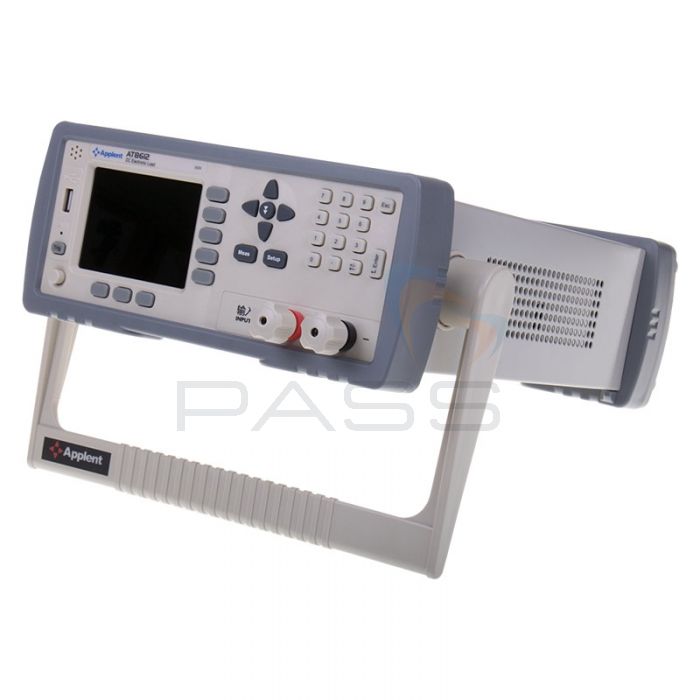

Applent AT8612 DC Electronic Load

Applent AT8612 DC Electronic Load
sku: AT8612
MPN: AT8612

Free UK Delivery On Orders Over £40
  • 300W, 150V, 30A input rating
  • CC, CV, CP and CR load modes
  • 6 measurement modes: NRM, TRN, SEQ, ATF, BAT and SHT

£530.00 Incl. VAT £636.00
Members earn 1060 points

Do you have a question or found it cheaper? Contact us

Description

Applent AT8612 DC Electronic Load Details

For a full teardown on the functionality and usefulness of the Applent AT8612 by a real customer, visit eevblog.com.

High performance, ARM-microprocessor powered electronic DC load from Applent.

Featuring a 3.5", full colour screen, Chinese/English operation and capable of delivering both superior speed and performance, this tester is ideal for use as a power supply, as a charger to batteries and for battery capacitor testing.

The unit has four load modes (CC, CV, CP and CR) and 6 different measurement modes (NRM, TRN, SEQ, ATF, BAT and SHT). It also has a built-in RS232C and USB interface, allowing the unit to be integrated into automated systems.

Applent AT8612 DC Electronic Load Key Features

  • 300W, 150V, 30A input rating
  • CC, CV, CP and CR load modes
  • 6 measurement modes: NRM, TRN, SEQ, ATF, BAT and SHT
  • High accuracy
  • RS232C, USB and handler interfaces
  • SCPI programming language
  • Battery testing
  • VFD full colour screen

What's Included?

  • Applent AT8612 DC Electronic Load
  • Printed Manual
  • Test Leads
  • RS232 Cable
  • Calibration/Test Data Sheet
Technical Specs

Part Code: AT8612

Applent AT8612 Technical Specifications

Accuracy is defined as meeting all of the following conditions.

  • Temperature: 23°C±5°C
  • Humidity: ≤65% R.H.
  • Correction: Short-circuit Clear Zero
  • Warming Time: >60min
  • Adjustment Time: 12months
  • Sampling rate: Slow: 3t/s, Medium: 5t/s, Fast: 10t/s
Constant Current Mode (CC) Measurement Range 0 to 3A 0 to 30A
Resolution 0.0001A 0.001A
Basic Accuracy 0.1%+0.1%FS 0.2%+0.1%FS
Constant Voltage Mode (CV) Measurement Range 0 to 18V 0 to 150V
Resolution 0.001V 0.01V
Accuracy 0.05%+0.02%FS 0.0%+0.025%FS
Constant Power Mode (CW) Measurement Range 0 to 100W 100 to 300W
Resolution 0.001W 0.01W
Accuracy 1%+0.1%FS 1%+0.1%FS
Constant Resistance Mode (CR) Measurement Range 0.1 to 99Ω 100 to 4KΩ
Resolution 0.01Ω
Accuracy 1%+0.3%FS 1%+0.8%FS
Voltmeter Measurement Range 0 to 18V 0 to 150V
Resolution 0.001V 10mV
Accuracy 0.05%+0.02%FS 0.05%+0.025%FS
Ammeter Measurement Range 0 to 3A 0 to 30A
Resolution 0.0001A 0.001A
Accuracy 0.1% + 0.1% FS 0.2% + 0.3% FS
Short-Circuit Test Short Circuit Current =30A
Internal Resistance =40mΩ
Battery Test Capacity 999.99AH
Discharge Time 999H
General Specifications
Display True colour TFT-LCD
Size: 3.5"
Rating Power 300W
Rating Voltage 0.1 to 150V
Rating Current 0 to 30A
Display Parameters Voltage, current, power, resistance, battery capacity and battery discharge time
Measurement Speeds Fast: 10t/s
Medium: 5t/s
Slow: 3t/s
Trigger Modes Internal, BUS and External Trigger
Sequence List Function (SEQ) 0.1Hz to 1kHz
10 files and 99 steps/file
Automatic Testing Function (ATF) 10 files and 20 steps/file
Interface Remote sensing, external trigger, built-in RS-232C, RS-485 (optional)
Programming Language SCPI
Operating Temperature/Humidity 10 to 40°C, 10 to 80% RH
Storage Temperature/Humidity 0 to 50°C, 10 to 90% RH
Power Supply 110/220V, 48.5Hz to 62.5Hz
Fuse 250V 1A Slow-blow
Maximum Rated Power 15VA
Weight 5kg, net
Reviews

1 Item(s)

per page

We'd really appreciate it if you'd review this product

Why not leave a review of this product? Reviews help us improve our service for customers looking for a product to make a decision.

well builded excellent product!!!

Review by Daniel (Posted on 03/05/2017)

Value
Quality
Price

Received it yesterday some test about some functions/features and i must confess it's more good than what i expected...so i'm really satisfy.!!
The Applent listened all the customers because all the defects it had now are been fixed from the manual (now is impressive inside i found also the programming/strings code to program the serial rs232 remote) to the firmware bugs (i read on th web the first unit fw had some bugs,but now are fixed, my unit works as expected)
thanks to all the PASS.LTD staff very patience and competent, good package (bomb proof box) and very fast service!
this was first time i bought from test.co.uk ,the next time i'll buy from them i'll do with confidence and quiet.
five star experience
