Martindale ET6500 Advanced Installation & Safety Kit
- Multifunction Installation Tester
- Two Pole Tester & Proving Unit
- Lock Out Kit
- LOTO Training Course
SKU
ET6500PROMO
MPN
6500PROMO
This Martindale ET6500 Kit is a single, practical bundle, making it well-suited to proving dead and working safely on electrical circuits.
The ET6500 Advanced Multifunction Installation Tester performs all measurements required to verify electrical safety in line with the latest 18th Edition Wiring Regulations. The ET6500 is also EV-ready and is supplied with the Martindale TL326-EV adapter. For further information, please visit our Martindale ET6500 page.
The VT25PD-S voltage testing set includes the VT25 two-pole tester and the PD690SRD proving unit. This combination safely and accurately tests AC and DC voltages, completes continuity checks, and performs phase rotation.
The kit also includes the Martindale LOKKIT1 lock-off kit, with nine locking devices, and the Lock-Out, Tag-Out (LOTO)introductory online course for one user.
Key Features
- Available until the April 30th 2026
- EV-ready multifunction tester
- Compact two-pole AC/DC tester
- 690V AC and DC Proving device
- Comprehensive lockout kit and training
What's Inlcuded?

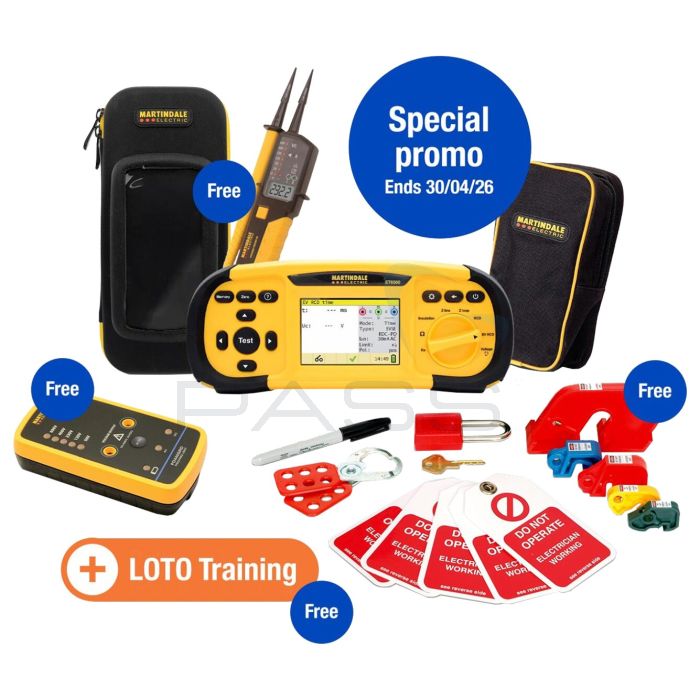

- Martindale ET6500 EV Ready Advanced Multifunction Installation Tester
- Martindale VT25PD-S - VT25 Two Pole Tester with PD690SRD 690V Proving Unit
- Martindale LOKKIT1 - Comprehensive lock out kit which inlcudes:
- Padlock with unique key (PAD11RD)
- Hasp (LOKHASP25)
- Yellow MCB lock, 10mm clip (LOK10)
- Red MCB lock, 6mm clip (LOK11)
- 5 “Equipment locked out” tags (TAG4)
- Black marker pen (LOKMP)
- TC55 soft carry case (TC55)
- LOTO Training - Online Lock out, Tag out introductory course
£995.00
£1,194.00 inc vat
Stock Due:
Typically 1-6 Days
Free Tyre Inflator (Spend £1000+)
Find Out More
Offers
Free Tyre Inflator (Spend £1000+)
Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
ET6500 Multifunction Tester
| Voltage | 0V - 500V |
|---|---|
| Frequency | 10Hz - 499Hz |
| Complies with | BS EN 61010-1 CAT III 600V CAT IV 300V BS EN 61557 BS 57671:2018 18th Edition BS EN 61326-1 |
| Dimensions | 250mm x 107mm x 135mm |
| Weight | 1.3kg approx. (excl. batteries) |
| Insulation Resistance | Nominal Voltages: 50, 100, 250, 500 and 1,000V DC |
| Continuity Resistance | Low R (200mA) |
| RCD Testing | Nominal residual currents: 6mA / 10mA / 30mA / 100mA / 300mA / 500mA / 650mA / 1000mA RCD type: A, AC, B, B+, F, G, S |
| Earth Resistance | Re (3-wire and 4-wire) 1Ω / 9999Ω Ro (Specific earth resistance testing) |
| Other Features | Systems: TT, TN, IT, LV (2 x 55V) Rechargeable batteries included EV ready & memory export |
TL326-EV Electric Vehicle Charger Test Adaptor
| Nominal Operating Voltage | 230V ~ / 400V 3~ |
|---|---|
| Operating Frequency | 50/60 Hz |
| Dimensions | approx. Plug 230 x 60 x 55mm |
| Weight | approx. 300g |
| Mains Socket and Lead Rating | max. 10 A |
| PP Simulation | Set up internally to 20 A |
| CP Simulation | States A, B, C |
| Error Simulation | CP error “E” |
| Test Connector Type | IEC 62196-2 Type 2 male |
| Location | Suitable for indoor and outdoor use in dry weather conditions only |
| Altitude | up to 2000m |
| Operating Temperature Range | 0°C to 40°C |
| Storage Temperature | -0°C to 50°C |
| Relative Humidity Range | 0 – 80%RH |
| Mains Supply Voltage Fluctuations | ±10% |
| Overvoltage Category | CAT II 300V |
| Pollution Degree: | 2 |
| Safety | Conforms to BS EN 61010-1, BS EN 61010-031 Class II, Reinforced insulation |
PD690SRD 690V AC/DC Proving Unit
| Power | Internal batteries |
|---|---|
| Internal Batteries | 6 x 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A) |
| Dimensions | 150 x 80 x 35mm |
| Weight Packed | 435g approx. (with batteries) |
| Includes | 6 x 1.5V AA alkaline batteries instructions |
| Location | Suitable for indoor use and outdoor use in dry weather conditions only |
| Operating Temperature | -10°C to 40°C at max. 70% R.H. |
| Altitude | up to 2000m |
VT25 Two-Pole Voltage and Continuity Tester
| Voltage Detector | |
|---|---|
| Maximum Working Voltage | 690V DC & AC rms |
| Nominal Voltage Threshold Indications | 12, 24, 50, 120, 230, 690V AC/DC |
| Nominal Voltage Threshold Tolerance | Conforms to BS EN 61243-3:2014 |
| Internal Impedance at ELV a.c. | 260kΩ |
| Polarity Indication | from 12V DC/AC rms |
| Range Detection | Automatic |
| Response Time | <1s to 100% of each nominal voltage |
| Frequency Range | DC, 16 to 400Hz |
| Test Current (In) | <3.5mA |
| Duty Ratio | 30s ON (operated) / 240s OFF (recovery) |
| Overvoltage Protection | 690V DC or AC rms |
| Single Pole Phase Test | |
| Voltage Range | 100 to 690V AC rms |
| Frequency Range | 50 to 60Hz |
| Phase Rotation Test | |
| Voltage Range | 120 to 400V AC rms (phase to earth) |
| Frequency Range | 50 to 60Hz |
| Continuity | |
| Resistance Range | 0 to 500kΩ + 50% |
| Test Current | 3μA |
| Overvoltage Protection: | 690V DC or AC rms |
| Environmental | |
| Temperature (Operating) | -10°C to 55°C |
| Temperature (Storage) | -20°C to 70°C, Non condensing |
| Humidity (Operating & Storage) | ≤ 85% R.H |
| Altitude | up to 2000m |
| Pollution Degree | 2 |
