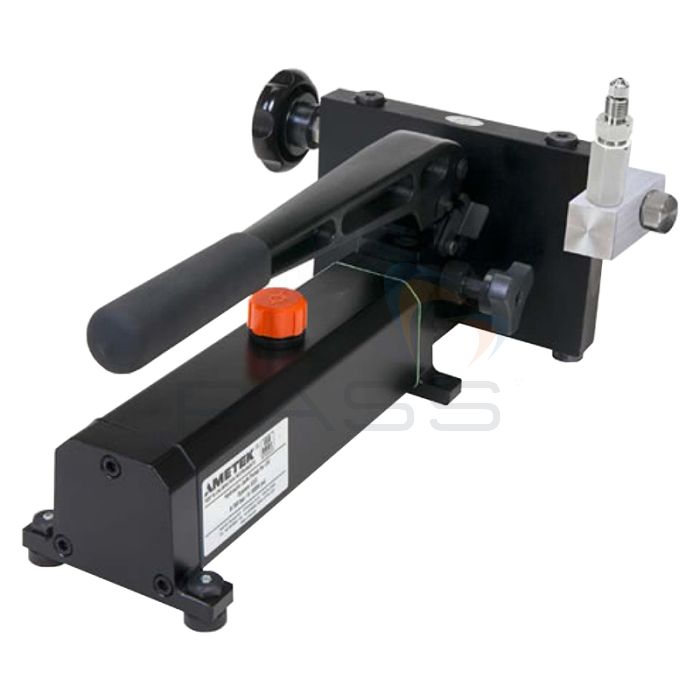

The Ametek Complete Pressure System E includes an Ametek P014 Hydraulic Jack Pump, an extremely effective pressure pump designed for easy, controlled, high-pressure generation. It offers a 0 to 10 000 psi/ 700 bar pressure range and includes a four-connection manifold which can be used for the reference indicator, the device under test, a fine adjust, an isolation valve, or a fluid reservoir.
Additionally, an adjustable reference port allows you to set your reference gauge to the best viewing angle while CPF fittings enable the bleeding/elimination of air. The Ametek Complete Pressure System E is portable; although, it is also suitable for permanent bench mounting.
The Ametek Complete Pressure System E can be ordered with (or without) an Ametek nVision, 30 Series, HPC40 Series, HPC50 Series, XP2i, or m1 Reference Indicator.
Ametek Complete Pressure System E Key Features
- Includes an Ametek P014 Hydraulic Jack Pump
- An extremely effective pressure pump designed for easy, controlled, high-pressure generation
- Pressure range: 0 to 10 000 psi/ 700 bar
- Four-connection manifold
- Can be connected to a reference indicator, the device under test, a fine adjustment, an isolation valve, or a fluid reservoir
- Adjustable reference pressure port
- Eliminate/bleed air with CPF fittings
- Portable and suitable for permanent bench mountings
- Can be ordered with or without an Ametek Reference Indicator
What’s Included?
- Ametek P014 Hydraulic Jack Pump
- Your Choice of Ametek Reference Indicator
- 2x CPF Male to Screw Pump Adapter
- ¼” BSP Female to ¼” BSP Female Fitting
- CPF Female to ¼” NPT Female Fitting
- CPF Female to ¼” BSP Female Fitting
- 2x 1/8” MPT Fitting (for 30 Series Calibrator)
- CPF Female Cap Fitting
- ¼” BSP Male to ¼” BSP Male Banjo Connector
- 4x ¼” Male BSP Plugs
- 5x ¼” Bonded Seals
- ¼” BSP Male Fine Adjust
- Red & Black Test Leads with Clips (for 30 Series)
- 4x Protective Vinyl Cap
- 1x Roll of Pack Tape
- Allen Key
- Shoulder Strap
- Aluminium Carrying Case
