Fully certified for use in environments where is a risk of combustion/explosion, this device is used to securely create a grounding point, thus diverting static electricity that is building up inside a system and ensuring it returns safely to earth.

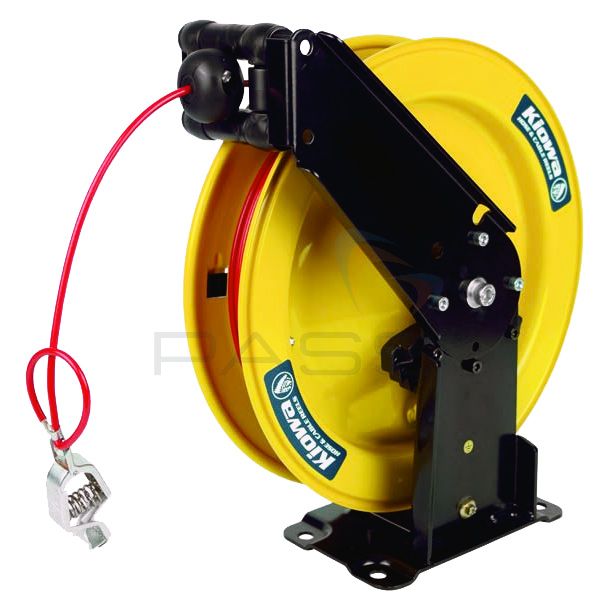

The cable reel includes a 25M PVC coated steel cable which is rigid enough to be secured in place and clamped to a grounding point. A 50A clamp is connected to the cable for this purpose and it is possible to either use the cable reel in a fixed position by mounting it to a floor, wall or ceiling or alternatively can be used in single applications to create a grounding point.
It's an ideal product for use by tankers, oil refineries, aviation, refuelling stations and many other areas and the devices' ATEX 94/9/EC II (3) 3 GD rating means it is totally certified for use in explosive environments.
The reel also contains a few extra functions such as a quick retraction function, adjustable cable stop and more.
ATEX Approved Grounding Reel Key Features
- Fully certified for use on in environments where this a risk of explosion
- Provides a safe method of discharging static electricity by creating a grounding point
- Copper cable reel (25m)
- 50A clamp equipped to cable
- Can be mounted on walls, ceiling or floor
- Latching mechanism
- Adjustable cable stop
External Dimensions: 368 (D) x 350 (H) x 148mm (W)
SKU | HR-535141-60252 |
---|---|
Manufacturer Part Code | HR-535141-60252 |
