Baty FTM Dial Thickness Gauge
The Baty FTM Series Dial Thickness Gauges measure sheet, strip, or rod materials. These gauges combine direct-read functionality with user-friendly ergonomics. Each model has a well-balanced frame and handgrip for comfortable handling.
The FTM-1 gauge has a measuring range of 10mm and a compact throat depth of 30mm. The FTM-5 has a wider measuring range of 25mm and an extended throat depth of 500mm.
Both gauges have 10mm flat contacts, a lifting lever, and a spring-loaded spindle to ensure consistent contact pressure. They come in protective wooden cases.
Product Range

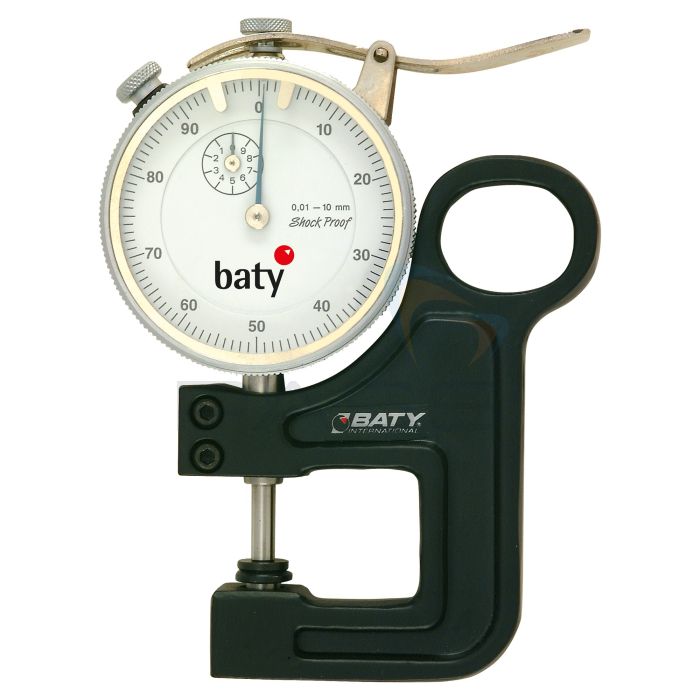

- Baty FTM-1 Dial Thickness Gauge, 10mm, 30mm Throat
- Baty FTM-5 Dial Thickness Gauge, 25mm, 500mm Throat
Technical Information
Specification
| FTM-1 | FTM-5 | |
|---|---|---|
| Range (mm) | 10 | 10 |
| Capacity (mm) | 10 | 25 |
| Depth (mm) | 30 | 50 |
| Resolution (mm) | 0.01 | 0.01 |
| Graduation | Dial-0-100 | Dial-0-100 |
Additional Information
SKU
BT-FTM-1/5
