Bowers DEMM Simmy Concentricity Gauge
- Ø1.5 - Ø50mm or Ø10 - Ø100mm
- Three different supports for the dial gauge
- Movable supports
SKU
BW-50-00879/80

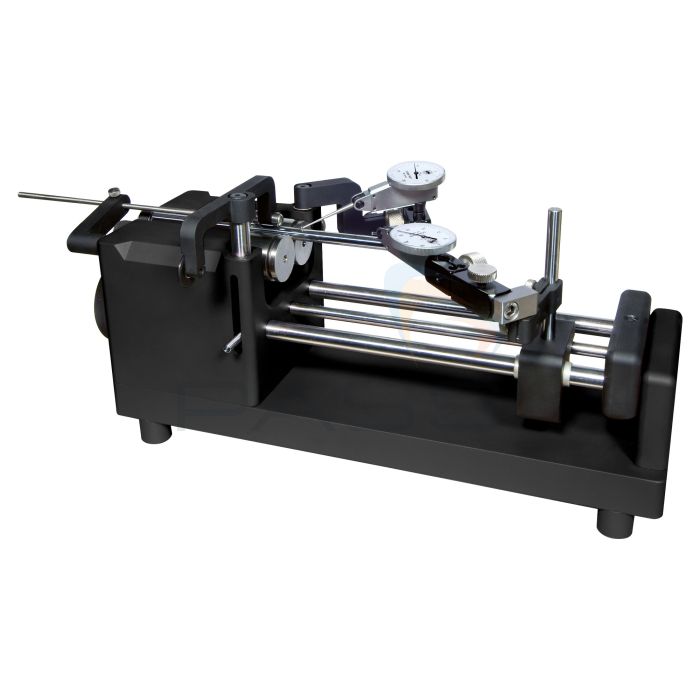

The Bowers DEMM Simmy Concentricity Gauges inspect concentricity, roundness, and axial runout across diameters ranging from Ø1.5–50mm and Ø10–100mm. Each unit has a hardened stainless steel rotor and a toothed belt transmission system. The lightweight frame has three adaptable dial gauge supports, all movable for optimal positioning depending on the part geometry. They come in a durable ABS case.
Dial gauge not included.
Simmy - Strumento di controllo | Measure Instrument
Key Features
- Lightweight
- Rotor on hardened stainless steel
- Three different supports for dial gauge
- Movable supports
- Transmission through toothed belt drive system
- Delivery: ABS case
Product Range
- Bowers 50-00879 DEMM Simmy Concentricity Gauge, Ø1.5 - Ø50mm
- Bowers 50-00880 DEMM Simmy Concentricity Gauge, Ø10 - Ø100mm
Technical Information
Specification
| Range (mm) | Repeatability (mm) | Weight | Diameter (mm) | |
|---|---|---|---|---|
| 50-00879 | 1.5-50 | 0.002 | 8.5kg | 1.5-50 |
| 50-00880 | 10-100 | 0.002 | 12.0kg | 10-100 |
Additional Information
SKU
BW-50-00879/80
Bowers DEMM Simmy Concentricity Gauge
£3,316.50
£3,979.80 inc vat
£3,316.50
£3,979.80 inc vat
