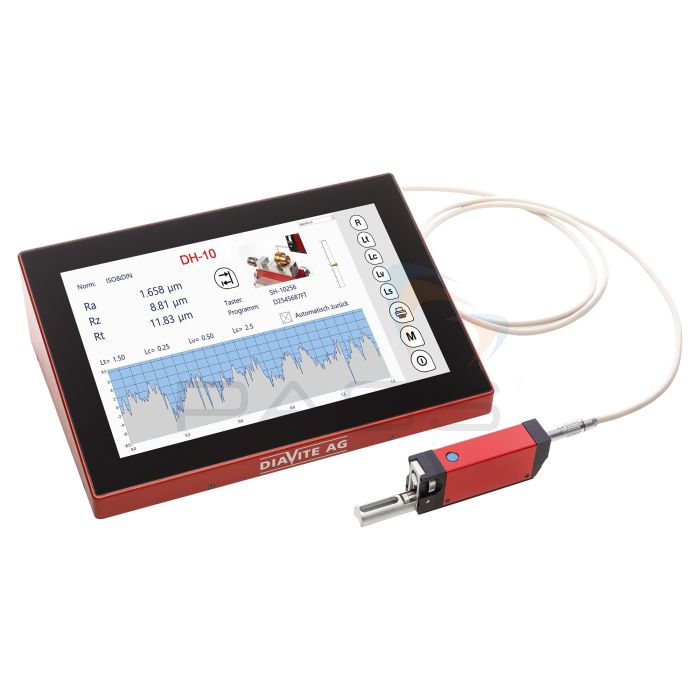

Bowers Diavite DH-10 TOUCH Surface Roughness Meter with SH Tracer

The Bowers Diavite DH-10 TOUCH is a fully featured measurement system for workshop and metrology lab environments. It has a tracer system that supports skid and skidless operation. The meter has a 10.1" Full HD touchscreen interface that provides intuitive control over parameters such as measurement length, filtering, and speed. It has up to five adjustable measuring lengths ranging from 0.5 mm to 15 mm. Additionally, measurements, images, and detailed protocols can be saved and exported in PDF, CSV, or TXT format via LAN, Wi-Fi, Bluetooth, USB, or directly to a server.

The DH-10 TOUCH includes automatic calibration support for up to eight tracer types, multilingual menus, and a built-in tolerance display. This device delivers fast and repeatable surface roughness readings, including Ra and Rq values of up to 20.00 μm. Its diamond-tipped stylus has a standard 90° tip with a 5 µm radius.

Key Features

• Save and export on-the-spot measuring reports
• High-precision roughness measuring instrument for use in workshops and measuring rooms.
• Automatic Calibration
• 5 measuring lengths adjustable 0.5mm to 15mm
• Adjustable measuring speeds
• Calibration of up to 8 tracers
• Save measurements with images
• Multitude of tracer types for all applications
• Simple menu navigation, multilingual
• Tolerance display
• Many available accessories
• Range:
  • Ra, Rq: 0 - 20.00 μm | 0 - 800 μin
  • All other measurement values: 0 - 350.0 µm | 0 - 1400 µin Ra, Rq: 0 - 20.00 μm | 0 - 800 μin
  • All other measurement values: 0 - 350.0 µm | 0 - 1400 µin
• Diamond tip: 5 µm, 90° (standard) or 2 µm, 60° (option) probe type
