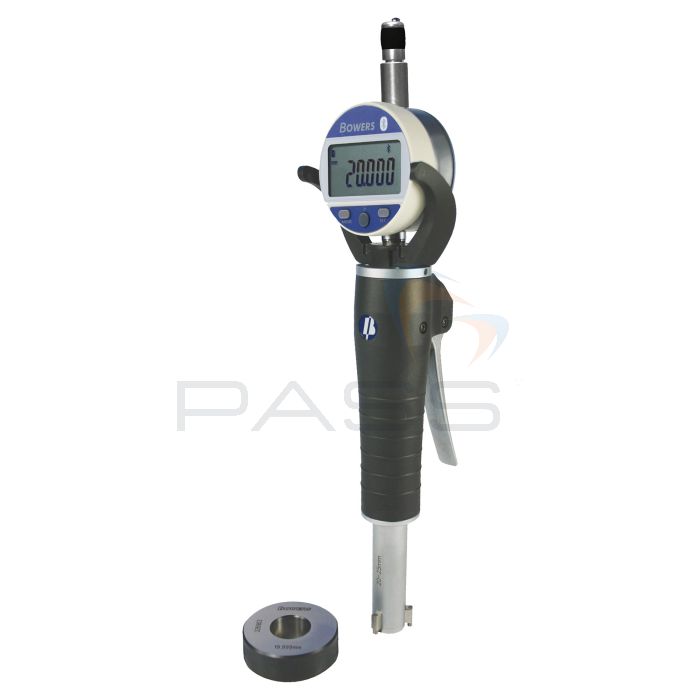

Bowers Digital Lever Bore Gauge with Bluetooth
- Measuring range 6-100mm
- Constant measuring pressure
- Fast, accurate measurement
- Resolution 0.001mm (0.00005")
SKU
BG-XTL-X-M-BT
The Bowers Bore Gauges provide a solution for vertical bore measurement in metric sizes ranging from 6mm to 100mm. They have extended-travel carbide anvils and IP65-rated digital indicators resistant to coolant, dust, and moisture.
Each gauge head is marked in metric units but permits quick switching between metric and imperial readings on the digital display. The built-in Bluetooth connectivity enables wireless data transfer to PCs, data collectors, or remote systems.
Key Features
- Measuring range 6-100mm
- Excellent for vertical bore measurement
- Large easy-to-read swivel display (20-100 sizes only)
- 2 preset memories
- RS-232C output
- Self-centering heads
- Constant measuring pressure
- Fast, accurate measurement
- Resolution 0.001mm (0.00005")
- Tungsten carbide measuring faces on all 3-point heads from 12.5mm
- Blind bore measurement above 12.5mm (0.500")
- Extensions available above 6mm for deep hole measurement
- Setting rings included with individual instruments and sets
- UKAS certificates supplied as standard with all setting rings
- UKAS certificates supplied with all gauges
- Serial number on all gauges and measuring heads
- Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines, etc)
- Bore gauges manufactured according to DIN863, part4
- Bluetooth indicator
Product Range
- Bowers XTL6M-BT Digital Lever Bore Gauge with Bluetooth, 6-8mm
- Bowers XTL8M-BT Digital Lever Bore Gauge with Bluetooth, 8-10mm
- Bowers XTL10M-BT Digital Lever Bore Gauge with Bluetooth, 10-12.5mm
- Bowers XTL12M-BT Digital Lever Bore Gauge with Bluetooth, 12.5-16mm
- Bowers XTL16M-BT Digital Lever Bore Gauge with Bluetooth, 16-20mm
- Bowers XTL20M-BT Digital Lever Bore Gauge with Bluetooth, 20-25mm
- Bowers XTL25M-BT Digital Lever Bore Gauge with Bluetooth, 25-35mm
- Bowers XTL35M-BT Digital Lever Bore Gauge with Bluetooth, 35-50mm
- Bowers XTL50M-BT Digital Lever Bore Gauge with Bluetooth, 50-65mm
- Bowers XTL65M-BT Digital Lever Bore Gauge with Bluetooth, 65-80mm
- Bowers XTL80M-BT Digital Lever Bore Gauge with Bluetooth, 80-100mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Accuracy (mm) | Depth (mm) | Setting Ring (mm) | |
|---|---|---|---|---|
| XTL6M-BT | 6-8 | 0.004 | 58 | 8.00 |
| XTL8M-BT | 8-10 | 8-10 | 58 | 8.00 |
| XTL10M-BT | 10-12.5 | 0.004 | 58 | 12.50 |
| XTL12M-BT | 12.5-16 | 0.004 | 62 | 12.50 |
| XTL16M-BT | 16-20 | 0.004 | 62 | 20.00 |
| XTL20M-BT | 20-25 | 0.004 | 66 | 20.00 |
| XTL25M-BT | 25-35 | 0.004 | 66 | 35.00 |
| XTL35M-BT | 35-50 | 0.004 | 80 | 35.00 |
| XTL50M-BT | 50-65 | 0.005 | 80 | 65.00 |
| XTL65M-BT | 65-80 | 0.005 | 80 | 65.00 |
| XTL80M-BT | 80-100 | 0.005 | 85 | 80.00 |
