    Home Scientific & Metrology Inside / Outside Micrometers & Bore Gauges Micrometer Heads

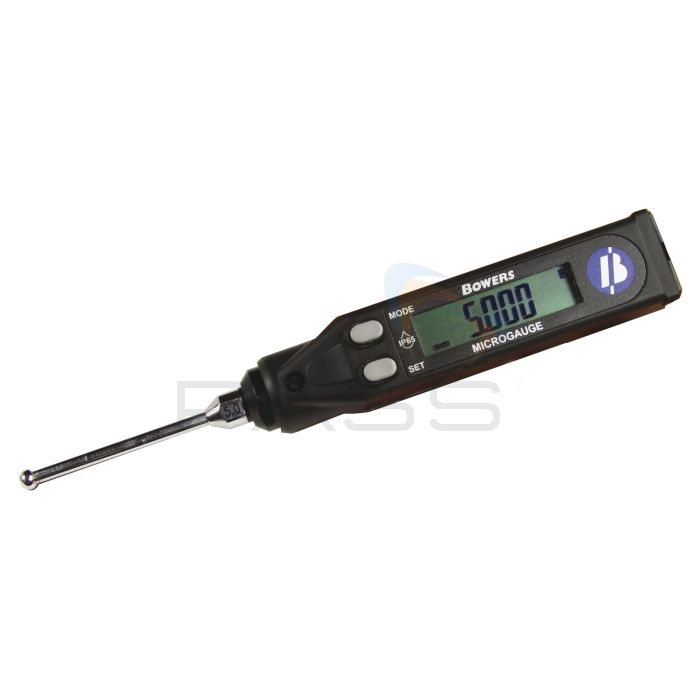

    Bowers MicroGauge 2-Point Bore Gauge Individual Head

    Free Tyre Inflator (Spend £1000+)
    Bowers MicroGauge 2-Point Bore Gauge Individual Head
    All Bowers Group Products
    • 0.95mm to 10.35mm
    • Hard-chromed spherical contact points
    SKU
    BG-MG0-X-W

    Read More

    View All Micrometer Heads

    The Bowers MicroGauge 2-point bore gauge heads span from 0.95mm to 10.35mm. Each head has hard-chromed spherical contact points.

    Please note that the MicroGauge display is not included.

    Product Range

    • Bowers MG011W MicroGauge 2-Point Bore Gauge Individual Head, 0.95-1.15mm
    • Bowers MG012W MicroGauge 2-Point Bore Gauge Individual Head, 1.07-1.25mm
    • Bowers MG013W MicroGauge 2-Point Bore Gauge Individual Head, 1.17-1.35mm
    • Bowers MG014W MicroGauge 2-Point Bore Gauge Individual Head, 1.27-1.45mm
    • Bowers MG015W MicroGauge 2-Point Bore Gauge Individual Head, 1.37-1.55mm
    • Bowers MG016W MicroGauge 2-Point Bore Gauge Individual Head, 1.50-1.90mm
    • Bowers MG017W MicroGauge 2-Point Bore Gauge Individual Head, 1.80-2.20mm
    • Bowers MG018W MicroGauge 2-Point Bore Gauge Individual Head, 2.05-2.45mm
    • Bowers MG019W MicroGauge 2-Point Bore Gauge Individual Head, 2.25-2.75mm
    • Bowers MG020W MicroGauge 2-Point Bore Gauge Individual Head, 2.50-3.00mm
    • Bowers MG021W MicroGauge 2-Point Bore Gauge Individual Head, 2.75-3.25mm
    • Bowers MG022W MicroGauge 2-Point Bore Gauge Individual Head, 3.00-3.50mm
    • Bowers MG023W MicroGauge 2-Point Bore Gauge Individual Head, 3.25-3.75mm
    • Bowers MG024W MicroGauge 2-Point Bore Gauge Individual Head, 3.50-4.00mm
    • Bowers MG025W MicroGauge 2-Point Bore Gauge Individual Head, 3.75-4.25mm
    • Bowers MG026W MicroGauge 2-Point Bore Gauge Individual Head, 3.65-4.35mm
    • Bowers MG027W MicroGauge 2-Point Bore Gauge Individual Head, 4.15-4.85mm
    • Bowers MG028W MicroGauge 2-Point Bore Gauge Individual Head, 4.65-5.35mm
    • Bowers MG029W MicroGauge 2-Point Bore Gauge Individual Head, 5.15-5.85mm
    • Bowers MG030W MicroGauge 2-Point Bore Gauge Individual Head, 5.65-6.35mm
    • Bowers MG031W MicroGauge 2-Point Bore Gauge Individual Head, 6.15-6.85mm
    • Bowers MG032W MicroGauge 2-Point Bore Gauge Individual Head, 6.65-7.35mm
    • Bowers MG033W MicroGauge 2-Point Bore Gauge Individual Head, 7.15-7.85mm
    • Bowers MG034W MicroGauge 2-Point Bore Gauge Individual Head, 7.65-8.35mm
    • Bowers MG035W MicroGauge 2-Point Bore Gauge Individual Head, 8.15-8.85mm
    • Bowers MG036W MicroGauge 2-Point Bore Gauge Individual Head, 8.65-9.35mm
    • Bowers MG037W MicroGauge 2-Point Bore Gauge Individual Head, 9.15-9.85mm
    • Bowers MG038W MicroGauge 2-Point Bore Gauge Individual Head, 9.65-10.35mm
    £74.00
    £88.80 inc vat
    Important Notice
    This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
    Free Tyre Inflator (Spend £1000+) Find Out More
    Available Models Select An Option
    1.50-1.90mm BW-MG016W £74.00 1.80-2.20mm BW-MG017W £74.00 2.05-2.45mm BW-MG018W £74.00 2.25-2.75mm BW-MG019W £74.00 2.50-3.00mm BW-MG020W £74.00 2.75-3.25mm BW-MG021W £74.00 3.00-3.50mm BW-MG022W £74.00 3.25-3.75mm BW-MG023W £74.00 3.50-4.00mm BW-MG024W £74.00 3.75-4.25mm BW-MG025W £74.00 3.65-4.35mm BW-MG026W £74.00 4.15-4.85mm BW-MG027W £74.00 4.65-5.35mm BW-MG028W £74.00 5.15-5.85mm BW-MG029W £74.00 5.65-6.35mm BW-MG030W £74.00 6.15-6.85mm BW-MG031W £74.00 6.65-7.35mm BW-MG032W £74.00 7.15-7.85mm BW-MG033W £74.00 7.65-8.35mm BW-MG034W £74.00 8.15-8.85mm BW-MG035W £74.00 8.65-9.35mm BW-MG036W £74.00 9.15-9.85mm BW-MG037W £74.00 9.65-10.35mm BW-MG038W £74.00 0.95-1.15mm BW-MG011W £106.50 1.07-1.25mm BW-MG012W £106.50 1.17-1.35mm BW-MG013W £106.50 1.27-1.45mm BW-MG014W £106.50 1.37-1.55mm BW-MG015W £106.50
    60 Days Return
    Ask An Expert
    Price Match

    Offers

    Free Tyre Inflator (Spend £1000+)

    Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
    Technical Information
    Specification
    Range (mm) Range (inch) Measuring Depth (mm) Setting Ring (mm)
    MG011W 0.95-1.15 0.037-0.045 0.6-11 1.00
    MG012W 1.07-1.25 0.042-0.049 0.6-11 1.10
    MG013W 1.17-1.35 0.046-0.053 0.6-11 1.20
    MG014W 1.27-1.45 0.050-0.057 0.6-11 1.30
    MG015W 1.37-1.55 0.054-0.061 0.6-11 1.40
    MG016W 1.50-1.90 0.059-0.075 0.9-17 1.75
    MG017W 1.80-2.20 0.071-0.087 0.9-17 2.00
    MG018W 2.05-2.45 0.081-0.096 0.9-17 2.25
    MG019W 2.25-2.75 0.089-0.108 1.2-22 2.50
    MG020W 2.50-3.00 0.098-0.118 1.2-22 2.75
    MG021W 2.75-3.25 0.108-0.128 1.2-22 3.00
    MG022W 3.00-3.50 0.118-0.138 1.2-22 3.25
    MG023W 3.25-3.75 0.128-0.148 1.2-22 3.50
    MG024W 3.50-4.00 0.138-0.157 1.2-22 3.75
    MG025W 3.75-4.25 0.148-0.167 1.2-22 4.00
    MG026W 3.65-4.35 0.144-0.171 2.0-40 4.00
    MG027W 4.15-4.85 0.163-0.191 2.0-40 4.50
    MG028W 4.65-5.35 0.183-0.211 2.0-40 5.00
    MG029W 5.15-5.85 0.203-0.230 2.0-40 5.50
    MG030W 5.65-6.35 0.222-0.250 2.0-40 6.00
    MG031W 6.15-6.85 0.242-0.270 2.0-40 6.50
    MG032W 6.65-7.35 0.262-0.290 2.0-40 7.00
    MG033W 7.15-7.85 0.281-0.309 2.0-40 7.50
    MG034W 7.65-8.35 0.301-0.329 2.0-40 8.00
    MG035W 8.15-8.85 0.321-0.349 2.0-50 8.50
    MG036W 8.65-9.35 0.340-0.368 2.0-50 9.00
    MG037W 9.15-9.85 0.360-0.388 2.0-50 9.50
    MG038W 9.65-10.35 0.380-0.408 2.0-50 10.00
    Additional Information
    SKU
    BG-MG0-X-W
