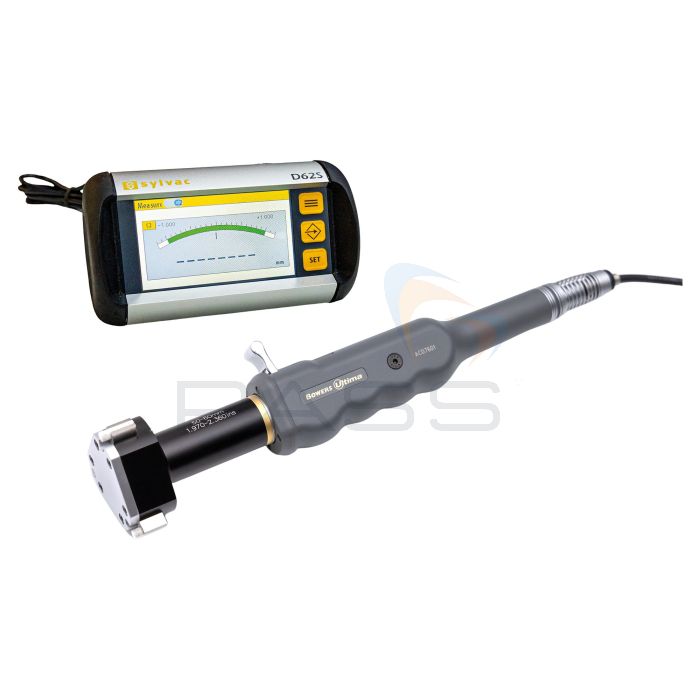

Bowers Ultima Bore Gauge Set
The Bowers Ultima Bore Gauge Sets are available with or without the Sylvac D62S digital display. They gauge internal diameters across ranges from 2 mm to 100 mm. Each set has Bowers’ innovative FASTFIT measuring heads, offering fast, tool-free interchangeability and extended measuring capability above 14 mm. The gauges apply a consistent measuring force via a smooth lever action, are capable of metric and imperial units, and have a resolution of up to 0.0001 mm.
Key Features
- UKAS certificates standard for all measuring heads and setting rings
- Measuring range 2-100mm
- Resolution: 0.0001mm (0.00001")
- Constant spring pressure for improved repeatability
- Good positive feel as heads self-centred in the bore
- Bowers 'Fastfit' measuring heads for rapid changeover
- Ceramic anvils on heads above 12mm
- Blind-bore measurement standard above 12mm
- Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station
- The complete range of Bowers special heads is available for the Ultima (grooves, threads, splines, deep-bores etc)
- Depth stops available for all heads
- Available without digital readout unit (if not required)
- Alternative Sylvac digital readouts are available
- Interchangeable probe option, to allow use of other manufacturers' probes and displays
Product Range
- Bowers USET2DW Ultima Bore Gauge Set, 2-6mm
- Bowers USET3DW Ultima Bore Gauge Set, 6-10mm
- Bowers USET4DW Ultima Bore Gauge Set, 10-20mm
- Bowers USET7DW Ultima Bore Gauge Set, 6-20mm
- Bowers USET8DW Ultima Bore Gauge Set, 20-50mm
- Bowers USET9DW Ultima Bore Gauge Set, 50-100mm
- Bowers USET10DW Ultima Bore Gauge Set, 20-100mm
- Bowers USET2D Ultima Bore Gauge Set with Sylvac D62S Display, 2-6mm
- Bowers USET3D Ultima Bore Gauge Set with Sylvac D62S Display, 6-10mm
- Bowers USET4D Ultima Bore Gauge Set with Sylvac D62S Display, 10-20mm
- Bowers USET7D Ultima Bore Gauge Set with Sylvac D62S Display, 6-20mm
- Bowers USET8D Ultima Bore Gauge Set with Sylvac D62S Display, 20-50mm
- Bowers USET9D Ultima Bore Gauge Set with Sylvac D62S Display, 50-100mm
- Bowers USET10D Ultima Bore Gauge Set with Sylvac D62S Display, 20-100mm
