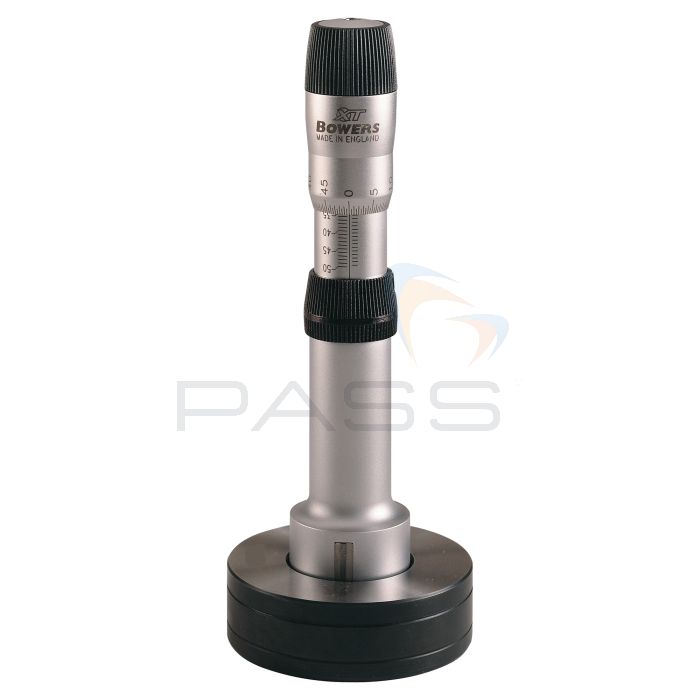

Bowers XT Analogue Bore Gauge - Imperial
Free Tyre Inflator (Spend £1000+)
- Range ¾"-12"
- Tungsten carbide measuring faces
- Ratchet stop
SKU
BG-XTA-X-I
The Bowers XT Analogue Bore Gauge range is suitable for applications ranging from ¾" to 12". The gauges have extended mechanical travel, removing the need to swap measuring anvils. They have a sturdy, easy-to-handle design and a clear analogue scale. UKAS-certified XT measuring heads and setting rings are included.
XT Analogue Micro Bore Gauge Overview & Quick Demo | Bowers Group
Key Features
- Range ¾"-12"
- 2-point contact from ¾"-1⅜", 3-point contact from 1⅜" upwards
- Graduation ¾"-1⅜": 0.00005", Above 1⅜": 0.0002"
- Tungsten carbide measuring faces on all 3-point heads from ½"
- Blind bore measurement from ¾"-1⅜" and above ½"
- Extensions available above 1⅜" for deep hole measurement
- Ratchet stop to ensure consistent measurement
- Setting rings included with individual instruments and sets
- UKAS certificates supplied as standard with all setting rings
- UKAS certificate supplied as standard with all XT mechanical micrometers
- Serial number on all gauges
- Bore gauges manufactured according to DIN 863, part 4
- Supplied in fitted wooden case
Product Range
- Bowers XTA20I XT Analogue Bore Gauge, 3/4-1"
- Bowers XTA25I XT Analogue Bore Gauge, 1-1.3/8"
- Bowers XTA35I XT Analogue Bore Gauge, 1.3/8-2"
- Bowers XTA50I XT Analogue Bore Gauge, 2-2.5/8"
- Bowers XTA65I XT Analogue Bore Gauge, 2.5/8-3.1/4"
- Bowers XTA80I XT Analogue Bore Gauge, 3.1/4-4"
- Bowers XTA100I XT Analogue Bore Gauge, 4-5"
- Bowers XTA125I XT Analogue Bore Gauge, 5-6"
- Bowers XTA150I XT Analogue Bore Gauge, 6-7"
- Bowers XTA175I XT Analogue Bore Gauge, 7-8"
- Bowers XTA200I XT Analogue Bore Gauge, 8-9"
- Bowers XTA225I XT Analogue Bore Gauge, 9-10"
- Bowers XTA250I XT Analogue Bore Gauge, 10-11"
- Bowers XTA275I XT Analogue Bore Gauge, 11-12"
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (inch) | Accuracy (inch) | Depth (inch) | Setting Ring (inch) | |
|---|---|---|---|---|
| XTA20i | 3/4-1 | 0.00015 | 2.62 | 0.750 |
| XTA25i | 1-1 3/8 | 0.00015 | 2.62 | 1.375 |
| XTA35i | 1 3/8-2 | 0.00015 | 3.15 | 1.375 |
| XTA50i | 2-2 5/8 | 0.00020 | 3.15 | 2.625 |
| XTA65i | 2 5/8-3 1/4 | 0.00020 | 3.15 | 2.625 |
| XTA80i | 3 1/4-4 | 0.00020 | 3.94 | 3.250 |
| XTA100i | 4-5 | 0.00025 | 4.53 | 5.000 |
| XTA125i | 5-6 | 0.00025 | 4.53 | 5.000 |
| XTA150i | 6-7 | 0.00030 | 4.53 | 7.000 |
| XTA175i | 7-8 | 0.00030 | 4.53 | 7.000 |
| XTA200i | 8-9 | 0.00030 | 4.65 | 9.000 |
| XTA225i | 9-10 | 0.00030 | 4.65 | 1.375 |
| XTA250i | 10-11 | 0.00035 | 4.65 | 11.000 |
| XTA275i | 11-12 | 0.00035 | 4.65 | 11.000 |
