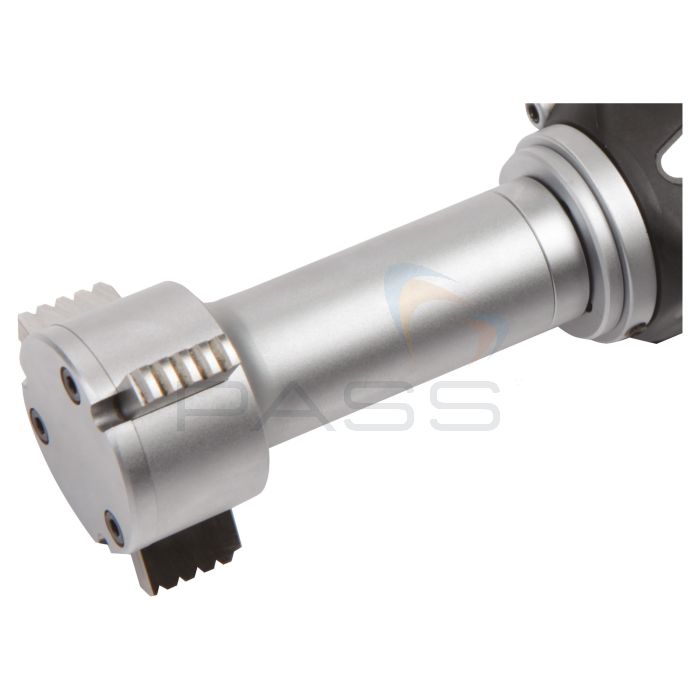

Bowers XT Thread Standard Head

The Bowers XT Thread Standard Heads, from M5 x 0.8 to 1"–12 UN, measure various metric and imperial thread types. Compatible with the Bowers Bluetooth XT range of internal micrometers, each head can be interchanged in seconds.

Key Features

• M4 – M300 (metric)
• No8 – 12” (imperial)
• Metric, UN, Buttress, Acme, Trapezoidal, Ball screw and non-standard forms available
• Left and right handed available
• 2 Point or 3 Point available
• Very rapid measurement of threads
• Reduce machining time by giving the operator an actual measurement when forming the thread
• Negates the need for many different hard gauges, incl. pre/post plate, pre/post H/T, different classes, etc. Therefore, annual recalibration costs have reduced massively
• Effective (Functional), Pitch & Major measurement
• Calibrate from thread rings (Plain ring for Major Diameter)
• Rings marked with actual PD
• Each of these application heads can be fitted directly to our Bluetooth XT range of internal micrometers in seconds for fast, efficient use with incredibly accurate results that can be digitally recorded.

Product Range

• Bowers THRH-1/4-20 XT Thread Standard Head, 1/4" - 20 UN
• Bowers THRH-3/4-16 XT Thread Standard Head, 3/4" - 16 UN
• Bowers THRH-5/16-24 XT Thread Standard Head, 5/16" - 24 UN
• Bowers THRH-5/8-11 XT Thread Standard Head, 5/8" - 11 UN
• Bowers THRH-5/8-18 XT Thread Standard Head, 5/8" - 18 UN
• Bowers THRH-7/16-20 XT Thread Standard Head, 7/16" - 20 UN
• Bowers THRH-9/16-18 XT Thread Standard Head, 9/16" - 18 UN
• Bowers THRH-1-12 XT Thread Standard Head, 1" - 12 UN
• Bowers THRH-M10X1.0 XT Thread Standard Head, M10 X 1.0
• Bowers THRH-M10X1.25 XT Thread Standard Head, M10 X 1.25
• Bowers THRH-M10X1.5 XT Thread Standard Head, M10 X 1.5
• Bowers THRH-M12X1.0 XT Thread Standard Head, M12 X 1.0
• Bowers THRH-M12X1.25 XT Thread Standard Head, M12 X 1.25
• Bowers THRH-M12X1.5 XT Thread Standard Head, M12 X 1.5
• Bowers THRH-M12X1.75 XT Thread Standard Head, M12 X 1.75
• Bowers THRH-M14X1.5 XT Thread Standard Head, M14 X 1.5
• Bowers THRH-M16X1.0 XT Thread Standard Head, M16 X 1.0
• Bowers THRH-M16X1.5 XT Thread Standard Head, M16 X 1.5
• Bowers THRH-M16X2.0 XT Thread Standard Head, M16 X 2.0
• Bowers THRH-M18X1.25 XT Thread Standard Head, M18 X 1.25
• Bowers THRH-M18X1.5 XT Thread Standard Head, M18 X 1.5
• Bowers THRH-M20X1.0 XT Thread Standard Head, M20 X 1.0
• Bowers THRH-M20X1.5 XT Thread Standard Head, M20 X 1.5
• Bowers THRH-M20X2.5 XT Thread Standard Head, M20 X 2.5
• Bowers THRH-M5X0.8 XT Thread Standard Head, M5 X 0.8
• Bowers THRH-M6X1.0 XT Thread Standard Head, M10 X 1.0
• Bowers THRH-M8X1.25 XT Thread Standard Head, M8 X 1.25
