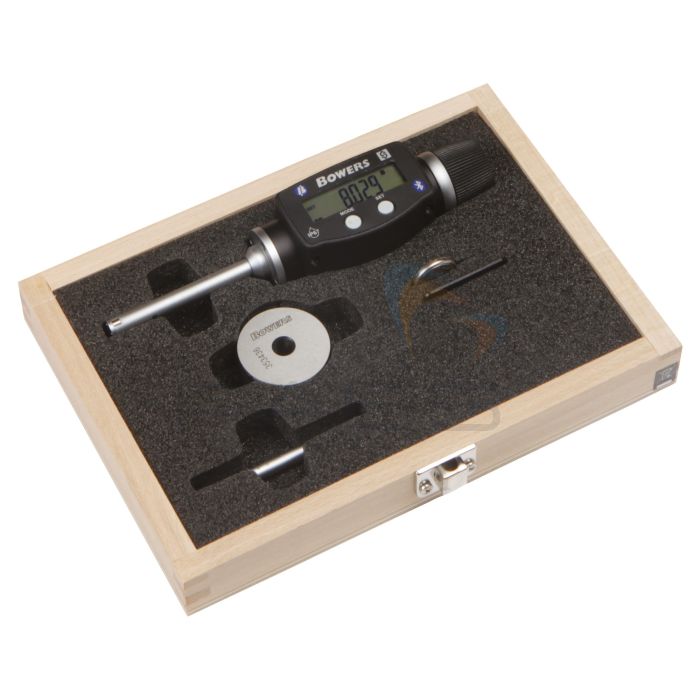

Bowers XT3 Digital Bore Gauge Set with Bluetooth - Imperial

The Bowers XT3 Sets deliver internal measurements across the 0.080" to 8" range. Each set has a digital display, ergonomic housing, a clear LCD screen, IP67-rated electronics, proximity output and integrated Bluetooth.

Key Features

• New ergonomic design with larger and clearer LCD
• IP67 electronics
• Simple 2-button operation
• 4 preset memories
• Proximity output with optional built-in Bluetooth
• Bi-directional communication
• RS-232C output
• Range: 0.080"–8"
• 0.080"–0.250" 2-point / 0.250"–8" 3-point measurement
• Resolution: 0.00005"
• Tungsten carbide measuring faces on all 3-point heads from 0.500"
• Blind bore measurement from 0.080"–0.250" and above 0.500"
• Extensions available above 0.250" for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied as standard with all gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines, etc)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case

Product Range

• Bowers SXTD1I-BT XT3 Digital Bore Gauge Set, 0.080-0.250"
• Bowers SXTD3I-BT XT3 Digital Bore Gauge Set, 1/4-3/8"
• Bowers SXTD4I-BT XT3 Digital Bore Gauge Set, 3/8-3/4"
• Bowers SXTD5I-BT XT3 Digital Bore Gauge Set, 3/4-2"
• Bowers SXTD6I-BT XT3 Digital Bore Gauge Set, 2-4"
• Bowers SXTD7I-BT XT3 Digital Bore Gauge Set, 4-6"
• Bowers SXTD8I-BT XT3 Digital Bore Gauge Set, 6-8"
• Bowers SXTD9I-BT XT3 Digital Bore Gauge Set, 4-8"
