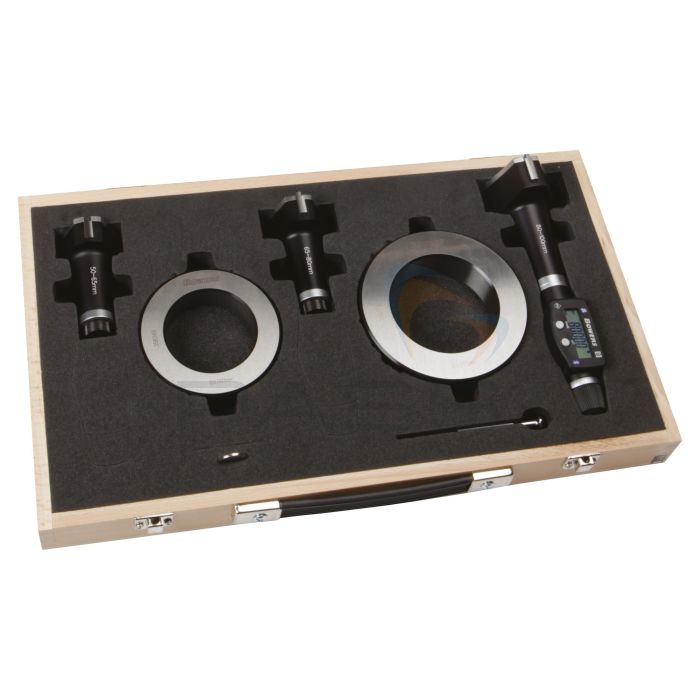

Bowers XT3 Digital Bore Gauge Set with Bluetooth - Metric
- Range 2-200mm
- Ratchet stop
- Setting rings included
- Supplied in a fitted wooden case
SKU
BG-SXTD-X-M-BT
The Bowers XT3 Metric Sets internally measure from 2 mm to 200 mm. Each set has the latest XT3 digital display unit, designed for clarity and comfort with its ergonomic form, large LCD screen, and IP67-rated electronics for use in demanding shop-floor environments. Integrated Bluetooth connectivity and proximity output enable bi-directional data communication, allowing for effortless data logging and transfer to external systems. Whether for fine, small-bore applications at 2–6 mm or larger diameters up to 200 mm, these advanced gauges provide consistent accuracy and enhanced workflow efficiency for modern manufacturing and quality control.
Key Features
- New ergonomic design with larger and clearer LCD
- IP67 electronics
- Simple 2-button operation
- 4 preset memories
- Proximity output with optional built-in Bluetooth
- Bi-directional communication
- RS-232C output
- Range 2-200mm
- 2-6mm 2 point/ 6-300mm 3 point measurement
- Resolution 0.001mm/0.00005”
- Tungsten carbide measuring faces on all 3-point heads from 12.5mm
- Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
- Extensions available above 6mm for deep hole measurement
- Ratchet stop to ensure consistent measurement
- Setting rings included with individual instruments and sets
- UKAS certificates supplied as standard with all setting rings
- UKAS certificates supplied as standard with all gauges
- Serial number on all digital readouts and measuring heads
- Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines, etc)
- Bore gauges manufactured according to DIN 863, part 4
- Supplied in fitted wooden case
Product Range
- Bowers SXTD1M-BT XT3 Digital Bore Gauge Set, 2-6mm
- Bowers SXTD3M-BT XT3 Digital Bore Gauge Set, 6-10mm
- Bowers SXTD4M-BT XT3 Digital Bore Gauge Set, 10-20mm
- Bowers SXTD5M-BT XT3 Digital Bore Gauge Set, 20-50mm
- Bowers SXTD6M-BT XT3 Digital Bore Gauge Set, 50-100mm
- Bowers SXTD7M-BT XT3 Digital Bore Gauge Set, 100-150mm
- Bowers SXTD8M-BT XT3 Digital Bore Gauge Set, 150-200mm
- Bowers SXTD9M-BT XT3 Digital Bore Gauge Set, 100-200mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Measuring Heads | Setting Ring (mm) | |
|---|---|---|---|
| SXTD1M-BT | 2-6 | 5 | 3 |
| SXTD3M-BT | 6-10 | 2 | 1 |
| SXTD4M-BT | 10-20 | 3 | 2 |
| SXTD5M-BT | 20-50 | 3 | 2 |
| SXTD6M-BT | 50-100 | 3 | 2 |
| SXTD7M-BT | 100-150 | 2 | 1 |
| SXTD8M-BT | 150-200 | 2 | 1 |
| SXTD9M-BT | 100-200 | 4 | 2 |
