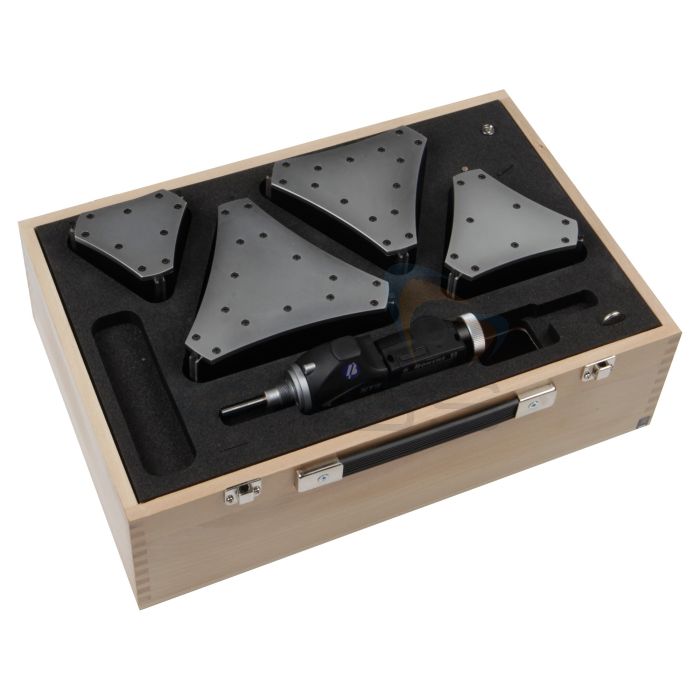

Bowers XT3 Digital Pistol Grip Bore Gauge Large Set with Bluetooth - Metric

The Bowers XT3 Sets combine ergonomic pistol-grip handling with the precision of the XT3 digital measurement system, which covers metric internal diameters ranging from 6 mm to 200 mm. Each set includes a durable digital readout featuring a large, high-contrast LCD and IP67-rated electronics. They also include integrated Bluetooth and proximity output.

Key Features

• New ergonomic design with larger and clearer LCD
• IP67 electronics
• Simple 2-button operation
• 4 preset memories
• Proximity output with optional built-in Bluetooth
• Bi-directional communication
• RS-232C output
• Range 2-200mm
• 2-6mm 2 point/ 6-300mm 3 point measurement
• Resolution 0.001mm/0.00005”
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied as standard with all gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines, etc)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case

Product Range

• Bowers SXTH10M-BT XT3 Digital Pistol Grip Bore Gauge Large Set, 6-20mm
• Bowers SXTH11M-BT XT3 Digital Pistol Grip Bore Gauge Large Set, 20-100mm
• Bowers SXTH9M-BT XT3 Digital Pistol Grip Bore Gauge Large Set, 100-200mm
