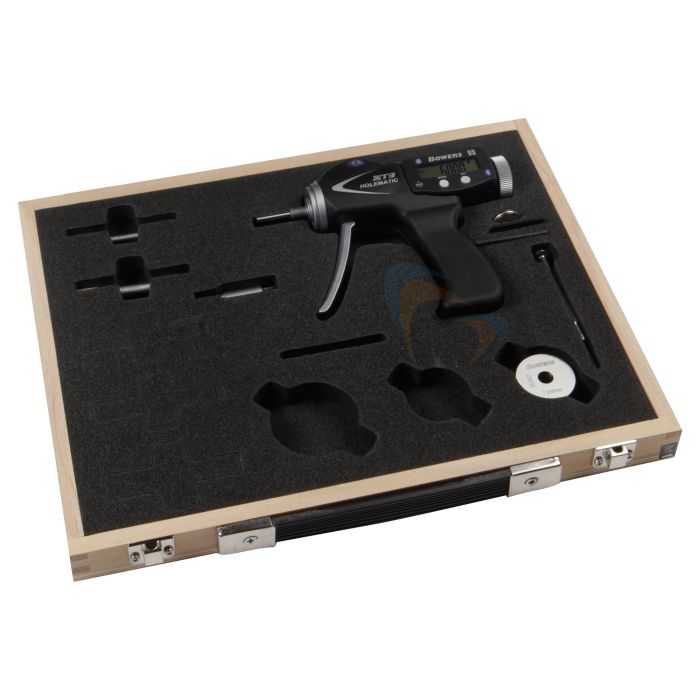

Bowers XT3 Digital Pistol Grip Bore Gauge Set with Bluetooth - Metric

The Bowers SXTHM-BT XT3 Digital Pistol Grip Bore Gauge Sets combine precise measurement capabilities with modern digital features for metric internal measurements ranging from 2 to 200mm. Designed with an ergonomic pistol grip for better handling, each set includes a clear, large LCD, durable electronics rated IP67, built-in Bluetooth, and proximity output.

Key Features

• New ergonomic design with larger and clearer LCD
• IP67 electronics
• Simple 2-button operation
• 4 preset memories
• Proximity output with optional built-in Bluetooth
• Bi-directional communication
• RS-232C output
• Range 2-200mm
• 2-6mm 2 point/ 6-300mm 3 point measurement
• Resolution 0.001mm/0.00005”
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied as standard with all gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines, etc)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case

Product Range

• Bowers SXTH1M-BT XT3 Digital Pistol Grip Bore Gauge Set, 2-6mm
• Bowers SXTH3M-BT XT3 Digital Pistol Grip Bore Gauge Set, 6-10mm
• Bowers SXTH4M-BT XT3 Digital Pistol Grip Bore Gauge Set, 10-20mm
• Bowers SXTH5M-BT XT3 Digital Pistol Grip Bore Gauge Set, 20-50mm
• Bowers SXTH6M-BT XT3 Digital Pistol Grip Bore Gauge Set, 50-100mm
• Bowers SXTH7M-BT XT3 Digital Pistol Grip Bore Gauge Set, 100-150mm
• Bowers SXTH8M-BT XT3 Digital Pistol Grip Bore Gauge Set, 150-200mm
