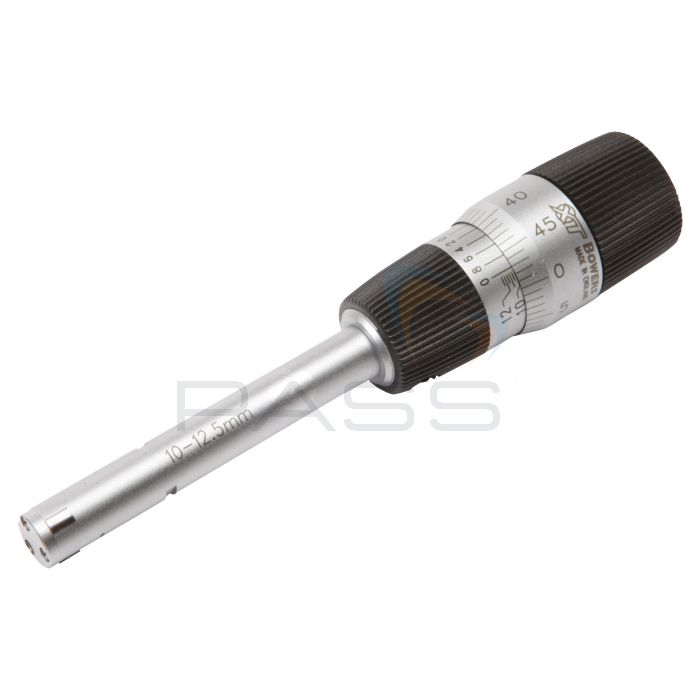

Bowers XTA Micro Analogue Bore Gauge - Without Ring
Free Tyre Inflator (Spend £1000+)
- Ten models available
- Improved functionality
- Vernier scale added
SKU
BG-XTA-M-WR
These Bowers Gauges have the same trusted performance and precision as the XTA line. A streamlined package that is ideal for users who have compatible setting rings. Covering metric ranges from 2 mm to 20 mm, the MXTA1W to MXTA16W models have a newly refined mechanical controller - smaller, lighter, and ergonomically enhanced for better handling during repeat use. The Vernier scale improves resolution from 5 µm to 2 µm, allowing for even finer measurements: 0.001 mm for the 2-6 mm range and 0.002 mm for 6-20 mm.
XT Analogue Micro Bore Gauge Overview & Quick Demo | Bowers Group
Key Features
- More compact mechanical controller
- Lighter and ergonomically designed
- Improved functionality
- Vernier scale added
- Graduation: 2-6mm range - 0.001mm. 0.080”-1/4” range: 0.0001”
- Graduation: 6-20mm range - 0.002mm. 1/4”-3/4” range: 0.0001”
Product Range
- Bowers MXTA1W XTA Micro Analogue Bore Gauge, 2-2.5mm
- Bowers MXTA2W XTA Micro Analogue Bore Gauge, 2.5-3.0mm
- Bowers MXTA3W XTA Micro Analogue Bore Gauge, 3-4mm
- Bowers MXTA4W XTA Micro Analogue Bore Gauge, 4-5mm
- Bowers MXTA5W XTA Micro Analogue Bore Gauge, 5-6mm
- Bowers MXTA6W XTA Micro Analogue Bore Gauge, 6-8mm
- Bowers MXTA8W XTA Micro Analogue Bore Gauge, 8-10mm
- Bowers MXTA10W XTA Micro Analogue Bore Gauge, 10-12.5mm
- Bowers MXTA12W XTA Micro Analogue Bore Gauge, 12.5-16mm
- Bowers MXTA16W XTA Micro Analogue Bore Gauge, 16-20mm
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Range (mm) | Accuracy (mm) | Depth (mm) | Setting Ring (mm) | |
|---|---|---|---|---|
| MXTA1W | 2-2.5 | 0.004 | 9 | 2.50 |
| MXTA2W | 2.5-3 | 0.004 | 9 | 2.50 |
| MXTA3W | 3-4 | 0.004 | 12 | 4.00 |
| MXTA4W | 4-5 | 0.004 | 18 | 4.00 |
| MXTA5W | 5-6 | 0.004 | 18 | 5.00 |
| MXTA6W | 6-8 | 0.004 | 58 | 8.00 |
| MXTA8W | 8-10 | 0.004 | 58 | 8.00 |
| MXTA10W | 10-12.5 | 0.004 | 58 | 12.50 |
| MXTA12W | 12.5-16 | 0.004 | 62 | 12.50 |
| MXTA16W | 16-20 | 0.004 | 62 | 20.00 |
Additional Information
SKU
BG-XTA-M-WR
Bowers XTA Micro Analogue Bore Gauge - Without Ring
£257.00
£308.40 inc vat
£257.00
£308.40 inc vat
