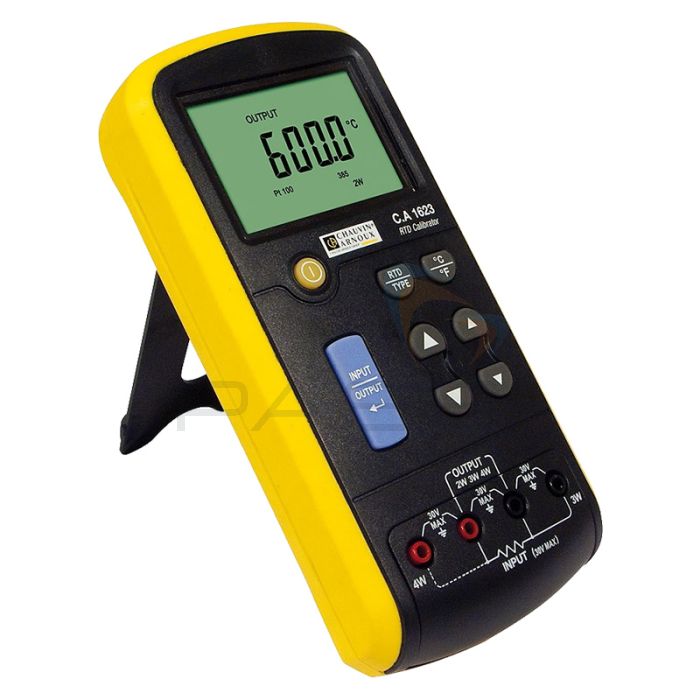

Chauvin Arnoux CA1623 Calibrator for Resistance & Temperature Probes Type PT
Compact and simple to use, the Chauvin Arnoux CA1623 calibrator is capable of measuring and simulating up to 7 different probes as well as resistance.
When used as a battery-powered stand-alone instrument, it offers a long battery life in the field. When connected to the mains, it can be used continuously without any time limit.
Designed to accurately measure, generate, or simulate all the low-level signals encountered in industry. Simple to use and ideal for on-site work. Due to the wide variety of sensors recognized, the instrument is suitable for all your applications.
Whether you are an installer or a maintenance technician, whether you belong to the maintenance department or technical and general services, and whether you work in metallurgy, the steel industry, agri-food, hospitals, or civil engineering, this instrument will meet your needs!
Key Features
- Temperature calibration range: -200°C to 800°C
- Resistance calibration range: 0 to 3200Ω
- Accuracy: ±0.02% of reading ±0.01°C
- Portable and battery-powered
- Clear screen and push-button interface
What's Included?
- CA1623 Calibrator
- 1 x Case
- 1 x Pair of test leads
- 2 x Alligator clips
- 6 x 1.5 V AAA batteries
- 1 x User manual in 5 languages
Manuals & Guides
Brochures & Catalogues
| Range | 4-wire Measurement Accuracy ± Ω | Simulation Accuracy ± Ω | Acceptable Excitation in mA |
|---|---|---|---|
| 0.00 Ω to 400.00 Ω | 0.1 0.1 |
0.15 0.1 |
0.1 to 0.5 0.5 to 3.0 |
| 400.0 Ω to 1,500.0 Ω | 0.5 | 0.5 | 0.05 to 0.8 |
| 1,500.0 Ω to 3,200.0 Ω | 1 2 |
1 | 0.05 to 0.4 |
| Mode | Range | Accuracy in °C | Acceptable Excitation in mA | ||
|---|---|---|---|---|---|
| 4-wire input | 2-wire/3-wire input | Output | |||
| Pt10 385 | - 200 to + 800 °C | 0.1 to 3.0 | |||
| Pt50 385 | - 200 to + 800 °C | 0.7 | 1.0 | 0.7 | 0.1 to 3.0 |
| Pt100 385 | - 200 to + 800 °C | 0.33 | 0.5 | 0.33 | 0.1 to 3.0 |
| Pt200 385 | - 200 to + 250 °C +250 to + 630 °C |
0.2 0.8 |
0.3 1.6 |
0.2 0.8 |
0.1 to 3.0 |
| Pt500 385 | - 200 to + 500 °C +500 to + 630 °C |
0.3 0.9 |
0.4 0.3 |
0.6 0.4 |
0.05 to 3.0 |
| Pt1000 385 | - 200 to + 100 °C +100 to + 630 °C |
0.2 0.5 |
0.2 0.2 |
0.4 0.2 |
0.1 to 3.0 |
| Pt100 JIS | + 200 to + 630 °C | 0.2 | 0.5 | 0.3 | 0.1 to 3.0 |
| Max. Voltage (Applied between a terminal and ground or between two terminals) |
30V |
|---|---|
| Resolution | RTD 0.1°C/°F - Resistance 0.01 / 0.1 Ω |
| Storage Temperature | - 40°C ~ 60°C |
| Service Temperature | - 10°C ~ 55°C |
| Service Altitude | 3000 metres max. |
| Temperature Coefficient | ±0.01%/°C on 0°C ~18°C and 28°C ~50°C |
| Relative Humidity | 95% up to 30°C, 75% up to 40°C, 45% up to 50°C, 35% up to 55°C |
| Shock | random, 2 g, 5 Hz to 500 Hz |
| Alimentation | 6 1.5 V AAA batteries |
| Dimensions | 205 mm x 98 mm x 46 mm |
| Mass | 472 g (with batteries) |
| SKU | P01654623 |
|---|---|
| Manufacturer Part Code | P01654623 |
| Country of Origin | China |
