Crowcon T4 Portable Personal Multigas Detector with Cradle Charger

Crowcon T4 Portable Personal Multigas Detector with Cradle Charger
sku: CROWCON-T4-C
MPN: T4-ZOZA-CRD

Free UK Delivery On Orders Over £40
  • Seven configurations available in a variety of regions and approvals
  • Can detect dangerous levels of oxygen, hydrogen sulphide, carbon monoxide and methane
  • Supplied with a charging cradle including a multi-region power supply

Was: £343.00
You Save: £25.30
£317.70 Incl. VAT £381.24
Was: £343.00
You Save: £25.30
£317.70 Incl. VAT £381.24
Members earn 635 points

Do you have a question or found it cheaper? Contact us

Description

Crowcon T4 Portable Personal Multigas Detector with Cradle Charger Details

The seven configurations of this product are selectable in the drop-down box above; please see below for information regarding the sensors available on each of these models:

  • T4-HOCA-CRD: four gas sensors which detect hydrogen sulphide (H2S), oxygen (O2), carbon monoxide (CO) and methane (CH4)
  • T4-ZOCA-CRD: three gas sensors which detect oxygen (O2), carbon monoxide (CO) and methane (CH4)
  • T4-HOZA-CRD: three gas sensors which detect hydrogen sulphide (H2S), oxygen (O2) and methane (CH4)
  • T4-ZOZA-CRD: two gas sensors which detect oxygen (O2) and carbon monoxide (CO)
  • T4-HOCA-H2-CRD: four gas sensors which detect hydrogen sulphide (H2S), oxygen (O2), carbon monoxide (CO – H2 resistant) and methane (CH4)
  • T4-ZOCA-H2-CRD: three gas sensors which detect oxygen (O2), carbon monoxide (CO – H2 resistant) and methane (CH4)

Above models are set to standard approval, for different regions/alarm levels, please contact our sales before purchase.

Please see the table below for further details regarding the regions and approvals available.

Region/Approval Default Alarm Levels (alarm 1/ alarm 2) Language  Approval
Standard O2: 19.0/23.5%, CH4: 20/40%, CO: 30/100 ppm, H2S: 5/10 ppm EN ATEX, IECEx, UL
S2 O2: 19.0/23.5%, CH4: 10/20%, CO: 30/100 ppm, H2S: 5/10 ppm EN
DE O2: 19.0/23.5%, CH4: 20/40%, CO: 30/100 ppm, H2S: 5/10 ppm DE
ES O2: 19.0/23.5%, CH4: 20/40%, CO: 30/100 ppm, H2S: 5/10 ppm ES
FR O2: 19.0/23%, CH4: 20/40%, CO: 30/100 ppm, H2S: 5/10 ppm FR
IT O2: 19.0/23.5%, CH4: 20/40%, CO: 30/100 ppm, H2S: 5/10 ppm IT
NL O2: 19.0/23.5%, CH4: 10/40%, CO: 25/50 ppm, H2S: 1.6/5 ppm NL
PL O2: 19.0/23%, CH4: 20/40%, CO: 20/100 ppm, H2S: 5/10 ppm PL
SG O2: 19.5/23.5%, CH4: 10/40%, CO: 25/100 ppm, H2S: 10/15 ppm EN
US O2: 19.5/23.5%, CH4: 10/20%, CO: 35/50 ppm, H2S: 10/15 ppm EN
BR O2: 19.0/23.5%, CH4: 20/40%, CO: 30/100 ppm, H2S: 5/10 ppm BP Inmento

Crowcon T4 Portable Personal Multigas Detector Description

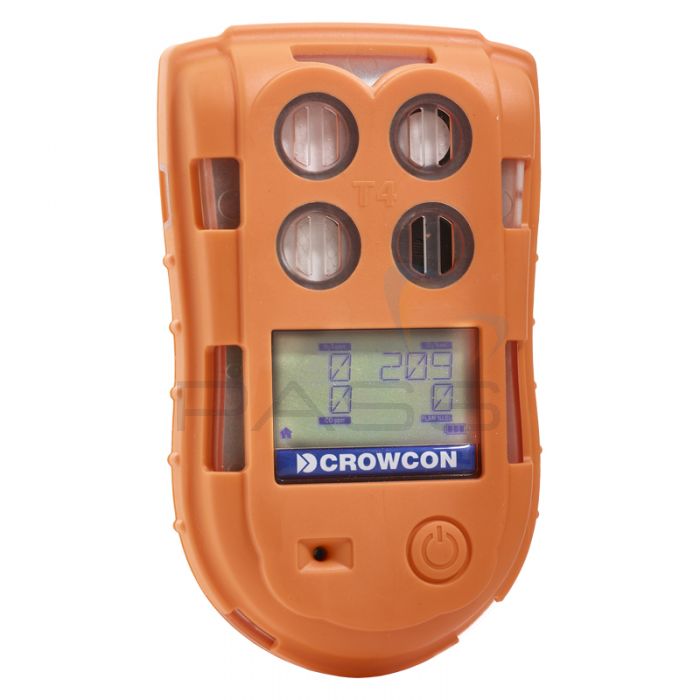

The Crowcon T4 Portable Personal Multigas Detectors have been optimised to protect the user against dangerous levels of oxygen, hydrogen sulphide, carbon monoxide and methane.

A new feature on the Crowcon T4 is its improved detection of long-chain hydrocarbons, such as pentane and hexane. For a quick introduction to the Crowcon T4 Portable Multigas Detector please consult the following video.

The T4 Personal Multigas Detector features sensors corresponding to each gas. Through ensuring that each gas has its own sensor, the Crowcon T4 can be trusted to deliver reliable, quick and effective detection. Should this product detect hazardous levels of one or more of the configured gases it will alert the user in a number of ways:

  • Audibly via a 95dB alarm
  • Visually via bright red/ blue LED lights
  • Via vibrating alerts

Unlike other gas detectors, the Crowcon T4 features a TWA (Time Weighted Average) function. When activated this function ensures that the levels of toxic gases detected are not lost once the T4 is turned off.  As these values are retained the user can safely switch the multigas detector off over the course of a break, knowing that when they switch it back on to resume work the detector will continue to add to these retained values throughout the rest of his/her shift, making sure the user does not expose him/herself to unsafe levels of any of the configured gases.  For further information regarding this function please consult the video below.

Further to this, the Crowcon T4 puts the user’s piece of mind at the forefront of its design and so features, in addition to a backlit display which can be flipped 180° for easy reading even when on the user’s person, a positive safety indicator. This indicator consists of two lights: red and green. The green light will shine when the Crowcon T4 Portable Personal Multigas Detector is operating correctly. The green light will cease shining and the red light will appear if there is an issue with the Crowcon T4, such as:

  • The battery is critically low
  • A bump test is required
  • A calibration is due
  • It is in gas alarm
  • There is a fault

In addition to being safe, reliable and accurate the Crowcon T4 Portable Personal Multigas Detector is easy-to-use and durable.

Its single button operation ensures that this product is simple-to-use even without training and/or when wearing gloves, whilst its eighteen-hour battery life and anti-shock rubber casing both protect this product’s longevity. This casing insulates the product against water and dust ingress (IP65 and IP67) and prevents damage should the Crowcon T4 fall from a height of up to 4m.

Therefore the Crowcon T4 Portable Personal Multigas Detector is a practical, reliable and accurate instrument.

Crowcon T4 Portable Personal Multigas Detector Key Features

  • Gas detectors available in seven different standard configurations
  • Can detect oxygen, hydrogen sulphide, carbon monoxide and methane
  • Improved detection of long-chain hydrocarbons, such as pentane and hexane
  • Each gas has its own sensor for quick, effective detection
  • Audible 95db alarm
  • Visual red/blue LED light alarm
  • Vibration alarms
  • Time Weighted Average function
  • Positive safety indicator
  • Single button operation
  • Backlit display which can be rotated 180°
  • Eighteen-hour battery life
  • Anti-shock rubber casing
  • Water and dust proof (IP65 and IP67)
  • Protected from falls of up to 4m
  • Intrinsically safe: ATEX approved  and UL Class 1 Div 1 for use in hazardous environments

Crowcon Cradle Charger for T4 Portable Personal Multigas Detectors Description

The Crowcon Cradle Charger for T4 Portable Personal Multigas Detectors features a docking station design, for easy charging, and a multi-region power supply.

These chargers are compatible with all of Crowcon’s T4 Portable Personal Multigas Detectors.

Crowcon Cradle Charger for T4 Portable Personal Multigas Detectors Key Features

  • Compatible with Crowcon’s T4 Portable Personal Multigas Detectors
  • Docking station design
  • Multi-region power supply

 What’s Included?

  • Your choice of Crowcon T4 Portable Personal Multigas Detector
  • One Crowcon Cradle Charger for T4 Portable Personal Multigas Detectors

Optional Accessories

Product Code  Description
T4 Chargers
T4-TWC T4 10 way charger and multi region power supply
Includes power cords for North America, Europe, UK
T4-VHL T4 vehicle charger and vehicle charging adaptor
Inmetro Certified
T4-VHL-BR T4 vehicle charger - Inmetro
Includes vehicle charging adaptor
Charging and Commns Cables
CH0106 Vehicle charging adaptor
For use with CH0102 charging lead
CH0102 Charging lead
For use with CH0106 vehicle charging adapter
CH0103 USB communications lead (not powered)
CH0104 USB dual communication and power lead
E011166 Power supply for 10 way charger
Includes power cords for North America, Europe, UK
Charging and Comms Cables - Inmetro Certified
CH0203 USB communications lead (not powered) - Inmetro
CH0204 USB communication and power lead - Inmetro
Hand Aspirator
T4-ASP-KIT T4 aspirator kit, 20 metre
Contains aspirator plate, hand operated bulb and 20 metre hose
T4-ASP-CAP T4 aspirator plate
AC0504 Hand aspirator bulb
(Hose available separately)
C01757 Telescopic aspirator probe
M04032 Aspirator hose - per metre
Technical Specs

Part Code: T4-ZOZA-CRD

Crowcon T4 Portable Personal Multigas Detector with Cradle Charger Technical Specifications

Gas Specifications Range  Resolution
Carbon Monoxide (CO) 0-1000ppm 1ppm
Methane (CH4) 0-100% LEL 1% LEL
Hydrogen Sulphide (H2S) 0-100ppm 1ppm
Oxygen (O2)  0-30% vol. 0.1% vol.
General Specifications
Size W135 x H80 x D35 mm (5.3 x 3.1 x 1.4in)
Weight 282g (9.9oz)
Durality Drop tested to 4m onto concrete
Alarms Audible >95dB
Bright red/blue visual LEDs
Integrated vibrating alert
Display Front mounted, backlit. Optional 180° flip for easy viewing whilst worn
Logging  130 hours of data logging; Up to 3500 events
Battery Rechargeable Li-ion
18 hour typical runtime
5.5 hour recharge
Operating Temperature -20°C to +55°C (-4°F to +131°F)*
Humidity 10 to 95% RH @ 40°C non-condensing
Ingress Protection Independently tested to IP65 and IP67
Approvals IECEx: Ex d ia IIC T4 Gb Tamb -20°C to +55°C
ATEX: Ex II 2 G Ex d ia IIC T4 Gb Tamb -20°C to +55°C
UL: Use in hazardous locations Class 1 Div 1, groups A, B, C and D only as to intrinsic safety
INMETRO: Ex d ia IIC T4 Gb Tamb -20°C to +55°C
Compliance EMC Directive 2014/30/EU
Interface USB communications lead
* Toxic and oxygen sensors are not rated for continuous operation above 50°C (122°F)
