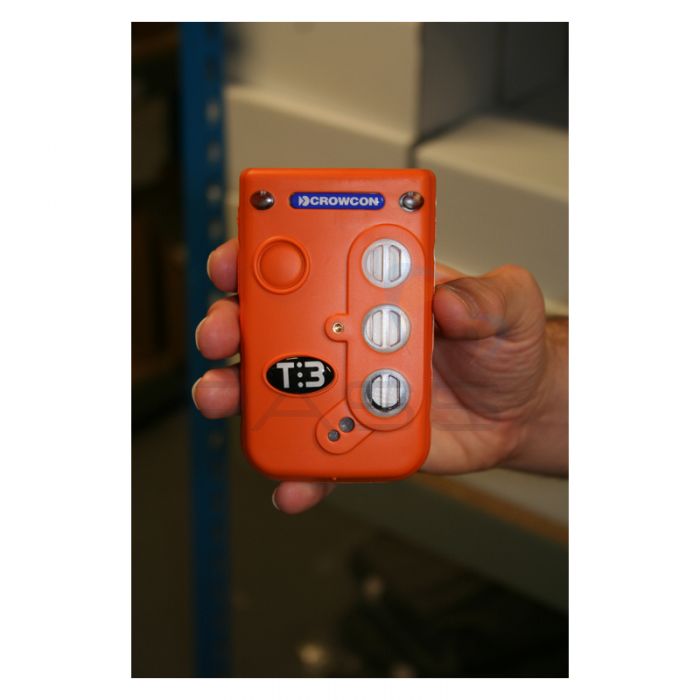

Crowcon Tetra 3 Multigas Personal Monitor - CH4, O2 (3yr) & H2S
Don't take risks in the workplace when gas is involved; with the Crowcon Tetra 3, users can be instantly alerted to the presence of hydrogen sulphide (HS2), oxygen content (O2) and methane gas (CH4).
Made for personal use, the Tetra 3 is small and lightweight enough to be carried comfortably or alternatively can be worn completely hands-free on your clothing thanks to the included clip. When attached to clothing it's easy to get a reading of gas content thanks to the innovative top-integrated LCD screen (just look down to see a reading without taking the meter off your clothes!).
Ultra rugged and protected from water damage thanks to IP67 rating (it can even be submerged in water) the Crowcon Tetra 3 is also ATEX designated for use in hazardous environments. Make sure you check before use that the environment you're entering is suitable for use with the Tetra 3 (more information about ATEX certification is available in the tech specs box below).
When one of the three gasses is detected the Crowcon Tetra 3 will both provide a reading of the concentration and will also alert the user to the gasses' presence. This gas detector features three separate alerts that will all work simultaneously and uses vibration feedback, bright LED lights and a loud, 95dB audible tone to make sure it gets the users' attention.
Crowcon Tetra 3 Multigas Personal Monitor Key Features
- Detects and measures methane, O2 and hydrogen sulphide
- Small, lightweight design for use in practically any application
- Single button operation for all functions - easy to use even when wearing cumbersome protective gloves
- Rugged, impact resistant design provides extra shock and vibration protection
- Fully rechargeable batteries give average battery life of 16 hours
- IP67 water and dust protection
- 95dB audible alarm, extremely bright LED indicators and vibration alerts
- Top mounted backlit display shows gas readings, diagnostics and battery life
What's Included?
- Crowcon Tetra 3 Multi-Gas Personal Gas Monitor
- Battery
- Charger
- Power Pack
- Manual
- 2 Year Warranty
Crowcon Tetra 3 Technical Specifications
| Weight | 269g | ||
| Dimensions | 112 x 72 x 49mm (tapers to 20mm) 4.4 x 2.8 x 1.9" |
||
| Gas | Range | Alarm UK/ROW | Alarm USA |
| Flammable | 0-100% LEL | 20% LEL | 10% LEL |
| Oxygen | 0-25% | 19/23.5% | 19.5/23.5% |
| Hydrogen Sulphide | 0-50ppm | 5ppm | 10ppm |
| Carbon Monoxide | 0-500ppm | 30ppm | 35ppm |
| Typical Response Times | Flammable 20s, Toxic Gas 30s, Oxygen 10s | ||
| Audible Alarms | 95dBa Multiple alarm sounds allow selection of distinctive tones for different alarm levels |
||
| Visible Alarms | Dual colour red/blue flashing LED pairs in gas hazard | ||
| Vibrating Alarm | Internal vibrating alarm | ||
| Display | Graphic LCD with backlight, giving simultaneous display for all gas channels. Graphic symbols for battery (with proportional indication of remaining operation time), healthy operation or fault warning. Start up indication when calibration is due within 30 days, calibration overdue or service required |
||
| Display Mode | Normal display for real time gas concentration levels. Display recall for peak readings and TWA |
||
| Battery | Rechargeable Li-Ion | ||
| Operating Time | Based on four gas unit with flammable sensor > 16 hours | ||
| Sampling | Diffusion or hand aspirator | ||
| Operating Temp Range | -20 to +55°C (-4 to 131°F) | ||
| Humidity | 0-99% RH | ||
| Ingress Protection | IP65 and IP67 | ||
| Approval Codes: Europe | ATEX II 2G EEx iad IIC T4 (tamb -20 to 55°C) BASEEFA05AATEX0187 |
||
| Approval Codes: International | IECEx Ex iad IIC T4 (tamb -20 to +55°C) BAS05.0059 |
||
| Approval Codes: USA | Class I Division 1 Groups A, B, C, D pending | ||
| Safety Standards: Europe | EN50014, EN50020, EN50018, 94/9/EC | ||
| Safety Standards: USA & Canada | UL913, CSA22.2, 152 | ||
| Operation Standards | EN50270, EN50271, IEC61508, EN61779 | ||
| SKU | T3R-07-EA |
|---|---|
| Manufacturer Part Code | T3R-07-EA-Z |
