Extech CG206 Coating Thickness Tester

SKU
CG206
Rating:
0%
(0)
Reward Points
:
179
£214.80 £179.00
Lead Time: 1-2 Weeks
Advice & Support
Price Match Request
Extech CG206 Coating Thickness Tester kit

The Extech CG206 is a handheld, portable tester for measuring the thickness of a coating on various types of surface.

Suitable for use with both ferrous and non-ferrous materials (with automatic recognition of the material type), the CG206 is suitable for measuring automotive paint thickness, quality/inspection and monitoring of the process of anodising and galvanising. for use by paint manufacturers, painting inspectors, painters and anti-corrosion painting contractors and for use by machine tool manufacturers, in the pipeline industry and for aeronautical applications.

Testing with the Extech CG206 is completely non-destructive - simply place the sensor on the material and it'll automatically recognise the type of material before providing you with an accurate measurements of coating thickness.

There are many additional benefits to the CG206 including memory storage for 1500 readings (30 group reading), zero point calibration and the ability to connect the thickness tester to a PC using USB connection for further analysis using software.

Extech CG206 Coating Thickness Tester Key Features

  • Measure the thickness of a coating on pipes, cars and various other applications
  • Suitable for use with ferrous and non-ferrous materials
  • Automatically recognises material type
  • Magnetic induction for ferrous substrates
  • Eddy current measurements for non-ferrous substrates
  • Easy-to-use menu system
  • Two working modes: direct and group
  • Internal memory with storage for 1500 readings (30 group reading) with USB download to PC
  • 8 level adjustable backlight
  • Low battery indicator

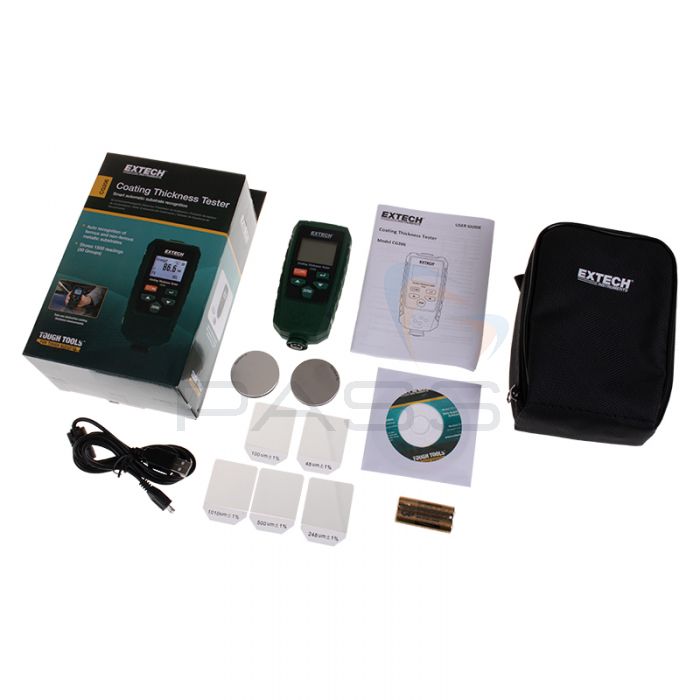

What's Included?

  • Extech CG206 Coating Thickness Tester
  • 2 x AAA Batteries
  • USB Cable
  • Software
  • Calibration Iron
  • Calibration Aluminium
  • Precision Standards
  • Pouch

Extech CG206 Technical Specifications

 FerrousNon-Ferrous
Measuring Range 0 to 1350μm (0 to 53 mils) 0 to 1350μm (0 to 53 mils)
Resolution 0.1μm (0.004mils) 0.1μm (0.004mils)
Accuracy ±2.5% ±2.5%
Minimum Curvature Radius 1.5mm (59.06 mils) 3mm (118.1mils)
Minimum Diameter 7mm (275.6mils) 5mm (118.1mils)
Minimum Thickness 0.5mm (19.69mils) 0.3mm (11.81mils)
Dimensions 113.5 x 54 x 27mm
Weight 110g
