Fluke 700LTP-1 Low Pressure Test Pump

Made for use with Fluke's 700 series pressure modules and 717 pressure calibrator, this low pressure test pump is used to generate either vacuum to -13psi/-/90 bar or pressures to 100psi/6.9bar.

It's an ideal product for various low pressure testing scenarios and Fluke have designed the pump to be easily cleaned after use without disassembling the unit. It also allows the user to adjust the slow release pressure at a controlled rate thanks to integrated slow-bleed capabilities.

Also included as part of this pump are two quick fit connectors; one of which is used for connection to a 700 series pressure module while the other connects to a unit that is being subjected to a test. The devices' test hoses are also terminated with 1/4-NPT female fittings that can be adapted using the included BSP/ISO adapters.

Fluke 700LTP-1 Low Pressure Test Pump Key Features

• For use with Fluke 700 series pressure modules and 717 pressure calibrator
• Generates vacuum to -13psi/-.90bar.
• Generates pressures to 100psi/6.9bar
• Easy cleaning without de-constructing the unit
• Adjustable pressure with slow bleed capability
• Quick fit connectors
• Slim design

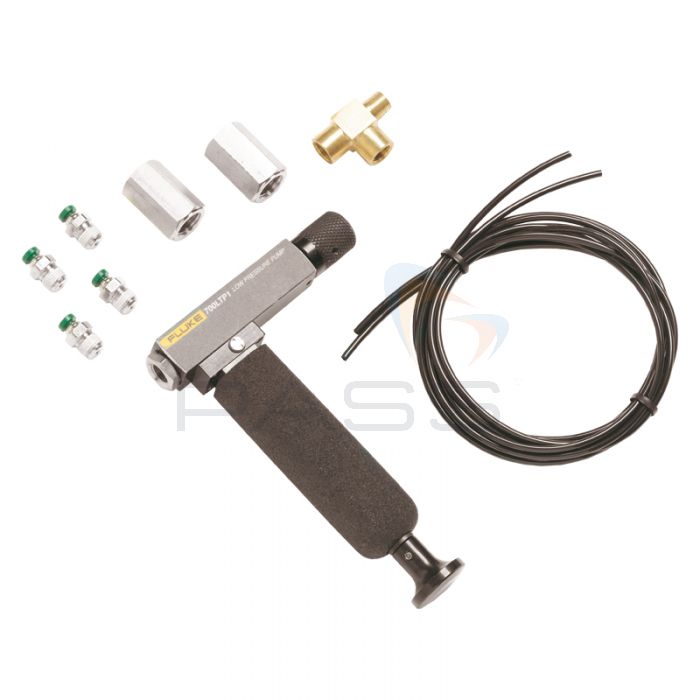

Full List of Products Included

• Fluke 700LTP-1 Low Pressure Test Pump
• 2 x Adapters to Convert the Reference and UUT Port Hose Fitting to 1/4" BSP Female
• Seal Kit
• Instruction Manual In English
