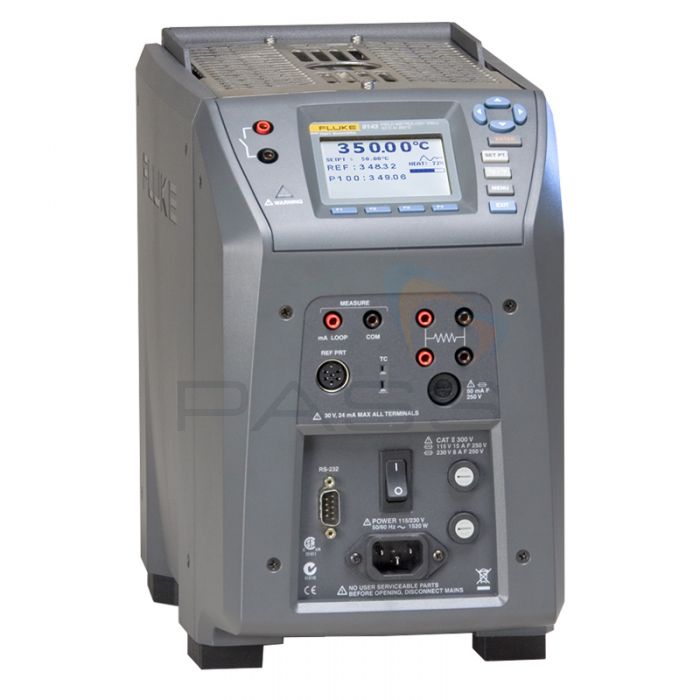

Fluke 9143-X-256 Field Metrology Well with Selectable Disk

The Fluke 9143-X-256 Field Metrology Well has a temperature range of 33°C to 350°C and takes 5 minutes to reach the maximum temperature from 33°C. This product is ideal for temperature calibrating 4-20mA transmitters, simple thermostatic switches, as well as a number of other sensors.

This product is available in seven models which differ only in regards to their disc inserts. Please see the table below for further information.

Fluke 9143-X-256 Field Metrology Well Model Name 9143 Disc Insert Name Disc Insert Part Number  Hole Types
9143-A-256 A 9143-INSA Imperial Misc Holes
9143-B-256 B 9143-INSB Imperial Comparison Holes
9143-C-256 C 9143-INSC 0.25-inch Holes
9143-D-256 D 9143-INSD Metric Comparison Holes
9143-DW-256 DW N/A **INDICATES THAT A DISC IS NOT INCLUDED**
9143-E-256 E 9143-INSE Metric Misc Holes with 0.25-inch Hole
9143-F-256 F 9143-INSF Metric Comparison Misc Holes with 0.25-inch hole
For a visual indication of how these discs will appear, please see the attached datasheet listed under 'Technical Specifications'.

** Please be aware that these models do not include integrated process electronics, the Fluke 9143-X-P-256 Field Metrology Well with Process Electronics is available here.

All of the above models feature two types of automated thermostatic switch test procedures: auto setup and manual setup. The manual setup enables the user to customise the calibration procedure, for example by adding extra cycles or altering the ramp rate, whilst the auto setup (once the user has entered the nominal switch temperature) will run an automatic 3-cycle calibration procedure and provide the user with a final result for the dead band temperature.

This raw data can then be exported into a calibration report using the included Model 9930 Interface-It Software or is viewable via the large, easy-to-read LCD screen. It is easy to access the Fluke 9143-X-256 Field Metrology Well’s memory, and subsequently its pre-programmed calibration routines, as well as all its inputs, via the front panel which includes function and menu navigation buttons for easy operation. This product even includes a ‘SET PT’ button for the easy and simple entering of block temperature values.

In addition to being easy-to-use and tailorable, the Fluke 9143-X-256 Field Metrology Well is also practical and accurate. Its compact, robust design makes it ideal for field work, and it is particularly well suited for industrial environments.  However, despite its size, this instrument does not compromise on key EA criteria:

  • Accuracy
  • Stability
  • Axial (vertical) uniformity
  • Well-to-well uniformity
  • Loading
  • Hysteresis

To this end, the Fluke 9143-X-256 Field Metrology Well is supplied with IEC-17025 NVLAP accredited calibration certificate, backed by a thorough uncertainty analysis which takes into consideration temperature gradients, loading effects and hysterics. This instrument is also calibrated with high-quality, traceable and accredited PRTs and as a result, this product has a full range display accuracy of ±0.2°C. It also features new control technology which helps to ensure excellent performance in extreme conditions, providing stability from ±0.02°C at 33°C to ±0.03°C at 350°C. Furthermore, each Fluke 9143-X-256 Field Metrology Well is built with a stability indicator.

The Fluke 9143-X-256 Field Metrology Well provides an efficient, accurate, versatile and practical alternative to dry well temperature calibrators.

Fluke 9143-X-256 Field Metrology Well with Selectable Disc Insert Key Features

  • Practical, efficient, accurate, versatile alternative to dry well temperature calibrators
  • Available in seven different models with different disc inserts
  • Temperature range: 33°C - 350°C
  • 5 minutes to reach 350°C from 33°C
  • Ideal for temperature calibrating 4-20mA transmitters, simple thermostatic switches, as well as a number of other sensors
  • Auto setup of automated thermostatic test procedure
  • Manual setup of automated thermostatic test procedure
  • Export raw data into a calibration report or ASCII file using the included Model 9930 Interface-It Software
  • Large, easy-to-read, LCD display
  • Pre-programmed calibration procedures
  • Easily access all the instrument’s inputs via front panel
  • Function keys
  • Menus navigation buttons
  • ‘SET PT’ button for the easy and simple entering of block temperature values
  • Compact
  • Robust
  • Lightweight
  • Ideal for field work, particularly in industrial environments
  • Does not compromise of key EA requirements
  • Supplied with IEC-17025 NVLAP accredited calibration certificate
  • Calibrated with high-quality, traceable and accredited PRTs
  • Full range display accuracy of ±0.2°C
  • New control technology ensuring excellent performance even in extreme environments
  • Stable between  ±0.02°C at 33°C and ±0.03°C at 350°C
  • Stability indicator

What’s Included?

  • Your choice of Fluke 9143-X-256 Field Metrology Well with Selectable Disc Insert
  • User Manual
  • Technical Manual on CD
  • Serial Cable
  • Model 9930 Interface-It Software
  • Report of Calibration
  • Insert Removal Tool

Fluke 9143-X-256 Field Metrology Well with Selectable Disc Insert Technical Specifications and Fluke 914X-X-256 Comparison Table

Technical Specifications 9142 - X-256 9143-X-256 9144-X-256
Temperature Range at 23°C –25 °C to 150 °C(–13 °F to 302 °F) 33 °C to 350 °C(91 °F to 662 °F) 50 °C to 660 °C (122°F to 1220 °F)
Display Accuracy ± 0.2 °C Full Range ± 0.2 °C Full Range

± 0.35 °C at 50 °C

± 0.35 °C at 420 °C

± 0.5 °C at 660 °C

Stability  ± 0.01 °C Full Range



± 0.02 °C at 33 °C

± 0.02 °C at 200 °C

± 0.03 °C at 350 °C





± 0.03 °C at 50 °C

 ± 0.04 °C at 420 °C

± 0.05 °C at 660 °C

Axial Uniformity at 40 mm (1.6 in) ± 0.05 °C Full Range

± 0.04 °C at 33 °C

± 0.1 °C at 200 °C

± 0.2 °C at 350 °C

± 0.05 °C at 50 °C

± 0.35 °C at 420 °C

± 0.5 °C at 660 °C

Radial Uniformity ± 0.01 °C Full Range



± 0.01 °C at 33 °C

± 0.015 °C at 200 °C

± 0.02 °C at 350 °C

± 0.02 °C at 50 °C

± 0.05 °C at 420 °C

± 0.10 °C at 660 °C

Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes) ± 0.006 °C Full Range ± 0.015 °C Full Range



± 0.015 °C at 50 °C

± 0.025 °C at 420 °C

± 0.035 °C at 660 °C



Hysteresis 0.025 0.03 0.1
Operating Conditions 0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
Environmental Conditions (for all specifications except temperature range) 13 °C to 33 °C
Immersion (Well) Depth 150 mm (5.9 in)
Insert OD 30 mm (1.18 in) 25.3 mm (1.00 in) 24.4 mm (0.96 in)
Heating Time

16 min: 23 °C to 140 °C

23 min: 23 °C to 150 °C

25 min: –25 °C to 150 °C



5 min: 33 °C to 350 °C



15 min: 50 °C to 660 °C

Cooling Time

15 min: 23 °C to –25 °C

 25 min: 150 °C to –23 °C

32 min: 350 °C to 33 °C

14 min: 350 °C to 100 °C

35 min: 660 °C to 50 °C

25 min: 660 °C to 100 °C



Resolution 0.01 °
Display  LCD, °C or °F user-selectable
Size (HxWxD) 290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
Weight 8.16 kg (18 lb) 7.3 kg (16 lb) 7.7 kg (17 lb)
Power Requirements 100 V to 115 V (± 10 %) 50/60 Hz, 635 W 230 V (± 10 %) 50/60 Hz, 575 W 100 V to 115 V (± 10 %), 50/60 Hz, 1400 W 230 V (± 10 %), 50/60 Hz  1800W
Computer Interface RS-232 and 9930 Interface-it control software included
Fluke 914X Field Metrology Well - Datasheet Datasheets Fluke 914X Field Metrology Well Series - User Manual Manuals & Guides
