The Fluke SPLT is a free-standing accessory designed to protect the PPC from liquid contamination returning from the system or device under test.

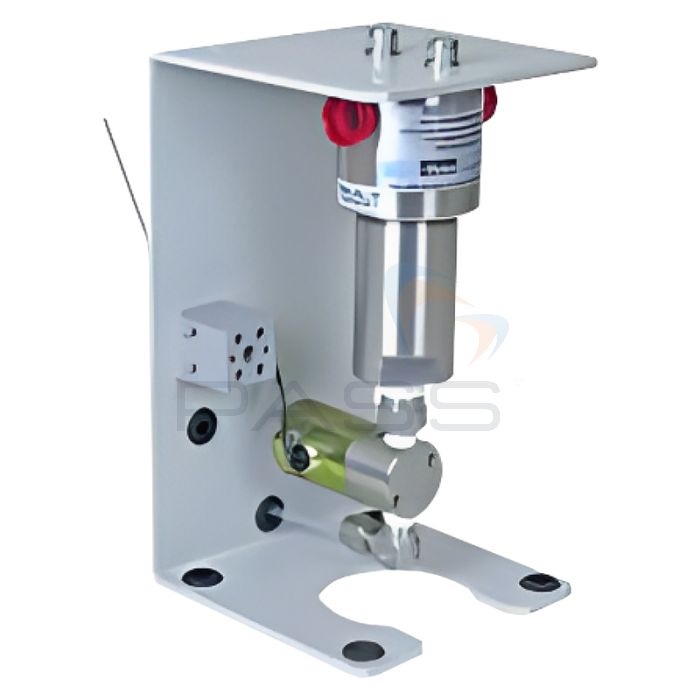

The SPLT is made up of a stainless steel body with an internal X-Type coalescing filter and a bottom drain port fitting with an electrically actuated purge valve. The filter and valve assembly are installed in a mounting stand.
The SPLT is intended to collect and exhaust liquid contaminants that may be present in the device or system under test so that they do NOT return to the PPC.
Specifications | |
---|---|
Pressure Connections | 1/4 in. NPT F |
Power Requirements | Apply 12 V to actuate the valve, 6 watts |
Weight | 1.7 kg (3.8 lb) |
Dimensions | 10 cm H x 10 cm W x 17.5 cm D (3.9 in. x 3.9 in. x 6.9 in.) |
Maximum Working Pressure | 2000 psi |
Maximum Differential Across Filter | 80 psi |
Operational Capacity of Filter Body | 10 cc |
SKU | SPLT |
---|---|
Manufacturer Part Code | 3069823 |
Made to Order item: This item is made-to-order with a lead time once the order is placed. Once an order is placed it cannot be cancelled or returned unless the unit is found to be faulty.
