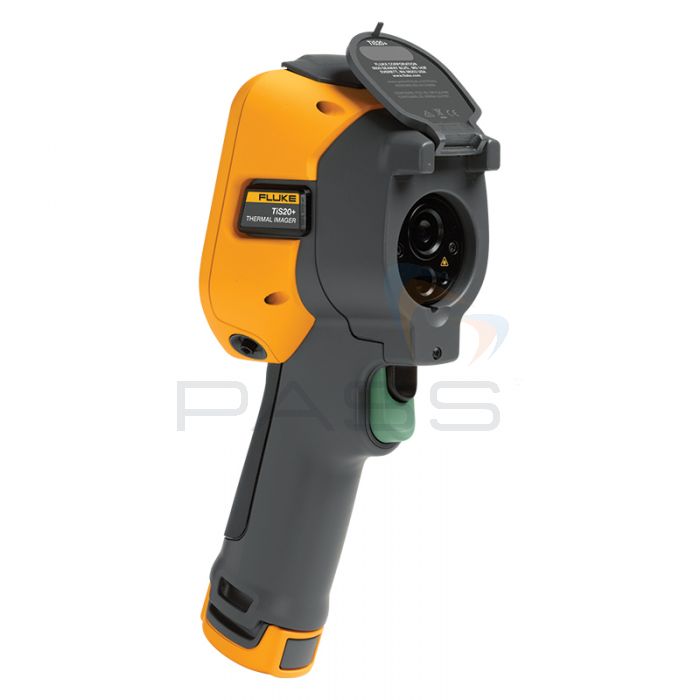

Fluke TiS20+ Max Thermal Imaging Camera (9Hz)

Fluke TiS20+ Max Thermal Imaging Camera

The Fluke TiS20+ Max Thermal Imaging Camera is an infrared imager capable of capturing thermal images and measuring temperatures between -20°C to +400°C to ±2°C/ 2%. It is ideal for commercial electricians, maintenance technicians, and heating, ventilation, air conditioning and refrigeration technicians.

Thermal Imaging

The Fluke TiS20+ Max Thermal Imaging Camera has an IR resolution of 120 x 90px which provides 10 800 measurement points. It also features a thermal sensitivity of 60mK, a fixed focus, a field-of-view of 50°x 38° (HxV), and a frame rate of 9Hz. Moreover, it includes several imaging tools such as hot and cold spot markers and six selectable thermal palettes: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal and Greyscale.

IR-Fusion™

Additionally, the TiS20+ Max features IR-Fusion™ technology which is designed to facilitate faster inspections and better reporting. Using the IR-Fusion™ function, the thermographer can slide his/her finger across the 3.5” touchscreen LCD display to combine infrared and visible images to varying degrees. The IR-Fusion™ scale ranges from fully infrared to fully visible. Overlaying visible details onto IR images increases the depth and clarity of thermal pictures, and allows the user to pinpoint the source of faults more easily.

Fluke Connect™ Asset Tagging

To improve inspection efficiency and to simplify reporting, the Fluke TiS20+ Max supports Fluke Connect™ Asset Tagging. This feature automatically sorts captured thermal images according to the relevant asset; the user needs only scan the asset’s QR code prior to commencing the inspection. Fluke Connect™ Asset Reporting eliminates time spent organising thermal pictures allowing thermographers to spend more time analysing images and creating reports.

Memory

Thermographers can save non-radiometric (jpeg) and fully radiometric (.is2) images to the camera’s internal 4GB memory. It also includes a slot for an additional micro SD card (up to 32GB). Images can be transferred to a PC via a mini USB.

Rugged & Ergonomic

This pistol-shaped thermal camera is easy to operate; thermographers can capture, review and save thermal images using a single hand. In addition to this, it has been drop-tested from 2m and is resistant to dust and water ingress (IP54). This makes it suitable for use in rugged environments. Furthermore, the camera has a battery life of five hours and includes an Auto Shutdown function designed to conserve power.

The Fluke TiS20+ Max Thermal Imaging Camera is an easy-to-use, ergonomic and efficient infrared imager optimised for inspection and troubleshooting applications.

Key Features

• An infrared imager capable of capturing thermal images and measuring temperatures
• Temperature range: -20°C to +400°C
• Accuracy: ±2°C/ 2%
• Ideal for commercial electricians, maintenance technicians, and heating, ventilation, air conditioning and refrigeration technicians
• IR resolution: 120x90px (10 800 measurement points)
• Thermal sensitivity: 60mK
• Fixed focus
• FOV: 50°x 38° (HxV)
• Frame rate: 9Hz
• Hot and cold spot markers
• Six selectable thermal palettes: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal and Greyscale
• IR-Fusion™ Technology: combine infrared and visible images to varying degrees by sliding a finger across the display
• 3.5” touchscreen LCD display
• Fluke Connect™ Asset Tagging: automatically sorts images according to the relevant asset
• Save non-radiometric images as jpeg files
• Save fully radiometric images as .is2 files
• Slot for additional SD card (up to 32GB)
• Easy to operate: capture, review and save thermal images using a single hand
• Drop-tested from 2m
• IP54: resistant to dust and water ingress
• Battery life: five hours
• Auto Shutdown function
• An easy-to-use, ergonomic and efficient infrared-imaging camera optimised for inspection and troubleshooting applications

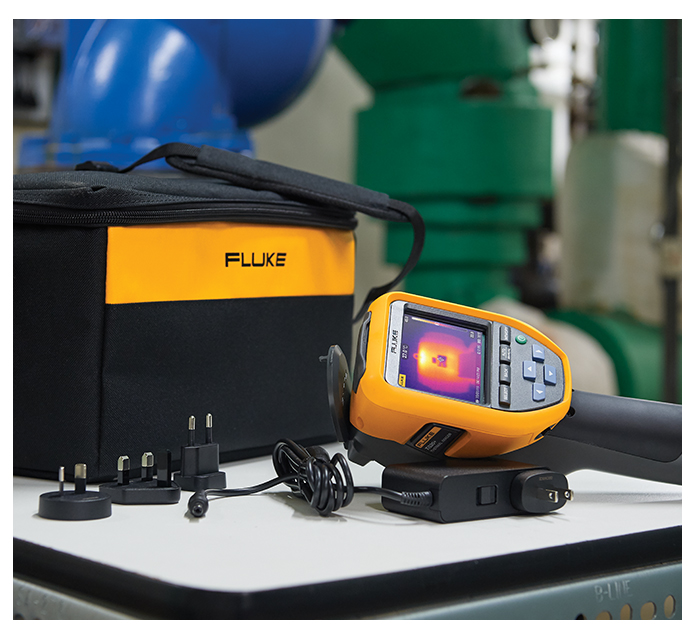

What’s Included?

• Fluke TiS20+ Max Thermal Imaging Camera
• AC Power Supply (including Universal AC Adapters)
• Lithium-ion Smart Battery
• USB Cable
• Soft Transport Bag

The camera's User Manual and Fluke's Connect Desktop Software are available as a FREE download from Fluke.
