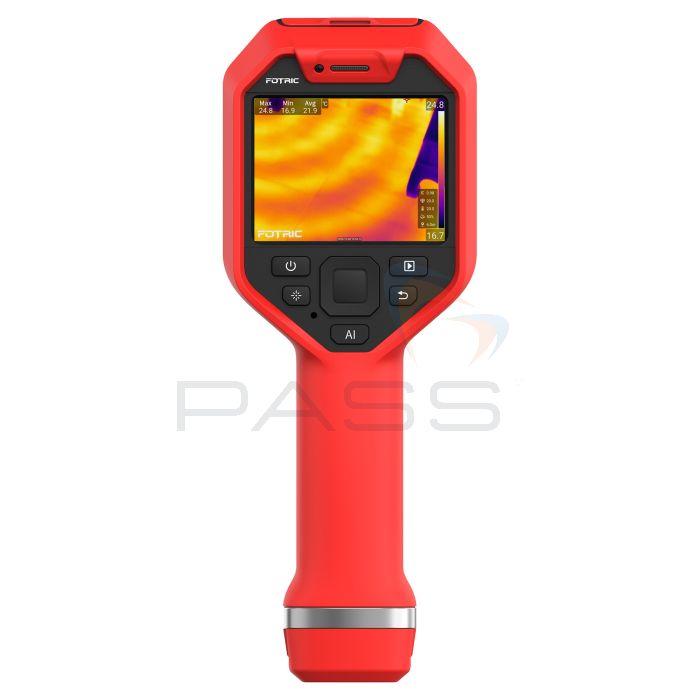

FOTRIC C Series Handheld Thermal Camera
- 46° or 49° Lens
- 160 x 120px or 384 x 288px resolution
- 3.5 inch display
SKU
FOTRIC-C
The FOTRIC C-series is a compact handheld thermal camera with an IR resolution of up to 384x288 and a sensitivity of 40 mK. The Android-based interface delivers a user-friendly experience.
Data can be imported into the AnalzyIR software via WiFi for quick and efficient report generation. The IRExplorer offers remote access and control of thermal cameras through a cross-platform analysis system.
Two models are available. The C2 has an IR resolution of 160 x 120px, Manual Focus mode, and a 46° Lens. The C5 has an IR resolution of 384 x 288px, Focus Free and Manual Focus modes, and a 49° Lens.
Key Features
- Compact size and professional power.
- 730g camera that fits comfortably in the pocket
- Radiometric video recording capability, making sure no spot is left unchecked
- Detect Mechanical, Electrical and Building-hidden thermal abnormalities with enhanced images
- Reveal low visibility details with LED flash lamp and Laser pointer
- Aim and shoot large scenes with a wide-angle lens
- Assembled with world-class components-Lynred sensor, Qualcomm chips, Texas Instrument FPGA
- Up to one day shift of combined battery life makes it the perfect companion for long shifts
- IP54 enclosure rating, 2 meters-drop tested. Highly durable against common field environment
- AI button allows instant access to frequently used features
- Achieve sharper details by easily switching from focus-free to manual focus (C5 model)
- Get as close as 0.1 m from targets to capture more details
- Total focus control
- Full Radiometric Video
- Highly-responsive 3.5” touch-screen
- Record voice notes and listen to alarms via a Bluetooth headset
- Tag images with equipment names using a QR-code scanner
- One-click automatic reports via FOTRIC AnalyzIR software
- Easy-sharing JPEG thermal pictures with embedded temperature values
- On-device radiometric video recording
- Transfer images in seconds via Wi-Fi or Memory Card (64GB)
- TWB (thermal white balance) Feature
- Up to 40 mK Thermal Sensitivity
- Up to 384 x 288 IR resolution
- 46° or 49° Lens
- Up to -20~650℃ Temperature range
- Up to 1.14mrad IFOV
- FOTRIC IRExplorer
What's Included?
- Thermal Camera
- USB-C to USB Cable
- USB
- SD Card Reader
- MicroHDMI to HDMI Cable
- Charger
- Charger Dock
- Certificates and User Manuals
- Battery
- Adaptors
- Wrist Strap
- Soft Bag
- Hard Case
Product Range
- FOTRIC C2-L46 Handheld Thermal Camera, Manual Focus, 46° Lens (160 x 120px)
- FOTRIC C5-L49 Handheld Thermal Camera, Focus Free & Manual Focus, 49° Lens (384 x 288px)
Call for Pricing
Call 01642 931 329 or complete the form:
Technical Information
Specification
| C2 | C5 | |
|---|---|---|
| Infrared Resolution | 60 x 120 | 384 x 288 |
| Super Resolution | Yes | |
| Remote Control Function | Yes | |
| Thermal Sensitivity(NETD) | <0.05℃ (50mk)@30℃ (86 ℉ ) | <0.04℃ (40mk)@30℃ (86 ℉ ) |
| Accuracy | ±2℃ or 2% , whichever is greater (at 25℃ ambient temperature) | |
| Temperature Range | -20℃ ~ 120℃, 0℃ ~ 550℃ (-4℉ ~ 248℉, 32℉ ~ 1022℉) |
-20℃ ~ 120℃, 0℃ ~ 650℃ (-4℉ ~ 248℉, 32℉ ~ 1202℉) |
| Field of View(FOV) | 46° x 35° | 49° x 37° |
| Focus Mode | Manual focus | Focus free & Manual focus |
| Display | 3.5 inch | |
| ROIs | Spot: 6 Line: 1 Rectangle/Circle: 6 |
Spot: 10 Line: 2 Rectangle/Circle: 8 |
| On-Device Analysis | Yes | |
| Connectivity | USB to USB-C cable HDMI to Micro HDMI cable Bluetooth WLAN; Hotspot FTP Transfer Web service(IRExplorer) |
|
| Video Format | MP4 Radiometric |
|
| Laser | Yes, as a pointer | |
| Palettes | 8 standard & 8 inverted | |
| Storage Memory | TF card, 64 GB | |
