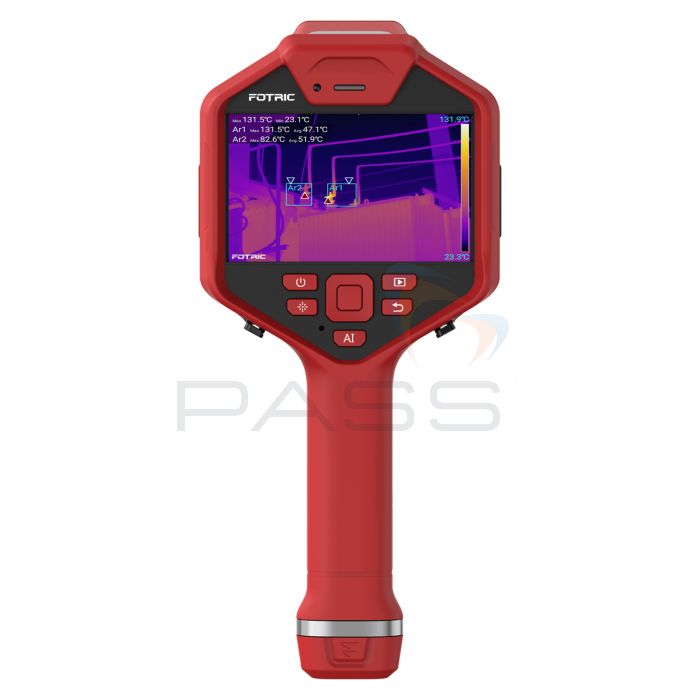

FOTRIC V5 Series Handheld Thermal Camera (30Hz), 384 x 288px
- 12°, 25°, or 44° lenses
- 384 x 288px IR resolution
- 20~1550°C Temperature range
The FOTRIC V5-series industrial thermal cameras have an impressive IR resolution of up to 384 x 288 and a 30 mK NETD. These cameras offer exceptional imaging on a 5-inch LCD touchscreen. Advanced features like laser-assisted autofocus, interchangeable lenses, and the powerful AnalyzIR report software enhance their performance.
The TWB (Temperature Weighting Balance) feature refines the palette ribbon based on pixel density across temperature ranges. Meanwhile, the IRedge function enhances the visibility of object contours.
FOTRIC NaviPdM, powered by AI, improves inspection precision and efficiency, the AnalyzIR software optimises thermal analysis and reporting, while the IRExplorer enables remote access and control of thermal cameras through WiFi.
Three cameras to choose from with either 12°, 25°, or 44° lenses.
Key Features
- Handwork eased like never before with a programmable AI Quick-Access button
- Turbo-Focus system enables swift and meticulous measurements
- Interchangeable lenses provide coverage for any target, any scene
- Complimentary access to the Face Detection feature
- Cutting-Edge Image Algorithms
- TWB (thermal white balance) Feature
- Up to 30 mK Thermal Sensitivity
- 384 x 288px IR resolution
- -20~1550°C Temperature range
- Up to 0.19mrad IFOV
- IREdge Imaging Algorithm
- FOTRIC NaviPdM
- FOTRIC IRExplorer
- FOTRIC AnalyzIR
What's Included?
- Thermal Camera
- Wrist Band
- Wide-Angled Lens
- USB-C to USB Cable
- USB
- Ultra Telephoto Lens
- Telephoto Lens
- Strap
- Soft Bag
- SD Card Reader
- MicroHDMI to HDMI Cable
- Lens Bag
- Hard Case
- Charger
- Charger Dock
- Certificates and User Manuals
- Battery
- Adaptors
Product Range
- FOTRIC V5-L12 Handheld Thermal Camera (30Hz), -20°C to 1550°C, 384 x 288px, 12° Lens
- FOTRIC V5-L25 Handheld Thermal Camera (30Hz), -20°C to 1550°C, 384 x 288px, 25° Lens
- FOTRIC V5-L44 Handheld Thermal Camera (30Hz), -20°C to 1550°C, 384 x 288px, 44° Lens
Call 01642 931 329 or complete the form:
| V5 | V7 | |
|---|---|---|
| Infrared Resolution | 384 x 288 | 640 x 480 |
| Super Resolution | Yes | |
| Remote Control Function | Yes | |
| Thermal Sensitivity(NETD) | <0.03℃ (30mk)@30℃ (86 ℉ ) | |
| Accuracy | ±2℃ or 2% , whichever is greater (at 25℃ ambient temperature) | |
| Temperature Range | -20℃ ~ 1550℃ (-4℉ to 2822℉ ) | |
| Field of View(FOV) | 25° x 19° | |
| Focus Mode | Manual focus+ thermal contrast/laser-assisted AF Continuous AF Touch AF |
|
| Alternative Lenses | 44° 12° 7° |
|
| Display | 5 inch | |
| ROIs | Spot: 16 Line: 8 Rectangle/Circle: 12 |
|
| On-Device Analysis | Yes | |
| Connectivity | USB to USB-C cable HDMI to Micro HDMI cable Bluetooth WLAN; Hotspot FTP Transfer Web service(IRExplorer) |
|
| Video Format | MP4 Radiometric |
|
| Laser | Yes, as a ranger and measurement tool | |
| Palettes | 16 standard & 16 inverted | |
| Storage Memory | SD card, 128 GB | |
