Gagemaker Groove Gauge - Diameter & Width Measurement
- Diameter or width options
- Replaces traditional GO/NOT GO templates
SKU
GM-90-BX/BXG1000

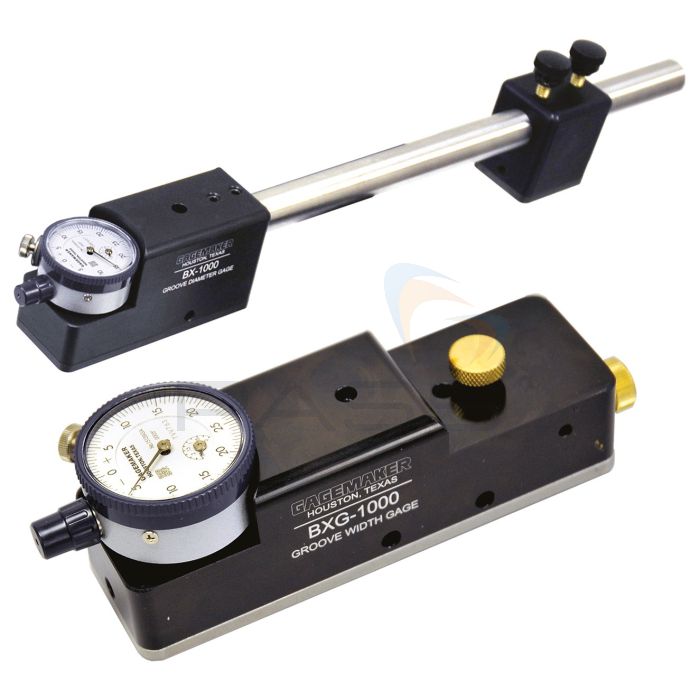

The Gagemaker BX-1000 and BXG-1000 Groove Gauges measure API ring groove diameters and widths on R, RX, and BX connections. They replace traditional GO/NO GO templates and require presetting with a micrometer or a Gagemaker MIC TRAC system.
The BX-1000 can measure both straight and tapered groove diameters, shallow bores, and hole locations within a range of 2.6" to 13", with the option to extend up to 37" using additional rails. It includes .188" contact points for precise measurements. The BXG-1000, with .072" contact points, accommodates groove widths from 0.375" to 1.5" and is suitable for straight and tapered profiles.
Key Features
- Diameters 2.6-13"
- Widths 0.375-1.5"
- Measures face grooves for a range of diameters
- Replaces traditional GO/NOT GO templates
- Provides accurate measurements at the critical sealing point of the face groove
- Allows use in a manufacturing or field environment due to durable construction
- Requires presetting using a micrometer or Gagemaker's MIC TRAC measurement centre (setting dimensions and tolerances for API ring grooves supplied with the gauge)
Product Range
- Gagemaker 90-BX1000 Groove Diameter Gauge
- Gagemaker 90-BXG1000 Groove Width Gauge
Technical Information
Additional Information
SKU
GM-90-BX/BXG1000
Gagemaker Groove Gauge - Diameter & Width Measurement
£1,346.00
£1,615.20 inc vat
£1,346.00
£1,615.20 inc vat
