Gagemaker MRP Air Pitch Diameter & Ovality Gauge
- External and internal
- Various reach depths
- Sturdier carbon fibre frame
SKU
GM-90-MRP-AIR
The Gagemaker MRP Air range inspects internal and external pitch diameters on tapered threaded connectors. Constructed with a lightweight yet durable carbon fibre frame, these gauges provide improved stability, reduced deflection, and improved accuracy.
The MRP series has two pivoting thread shoes that rest gently on the thread crests, eliminating the need for damaging guide rails through an innovative block and clamping assembly. They are available in various reach depths from 3⅜ inches to 10 inches and size capacities (including models for ranges up to 24 inches). The series includes dedicated internal, external, and dual-function gauges.
These gauges offer real-time variation feedback through a sensitive indicator. Each gauge must be preset using the Gagemaker setting standards or a MIC TRAC measurement centre.
Key Features
- Measure both external and internal parts with one gauge
- Avoid damaging rails with new block and clamping assembly
- Sturdier carbon fibre frame
- Minimises deflection for increased accuracy
- Save time with easier gauge setup
Product Range

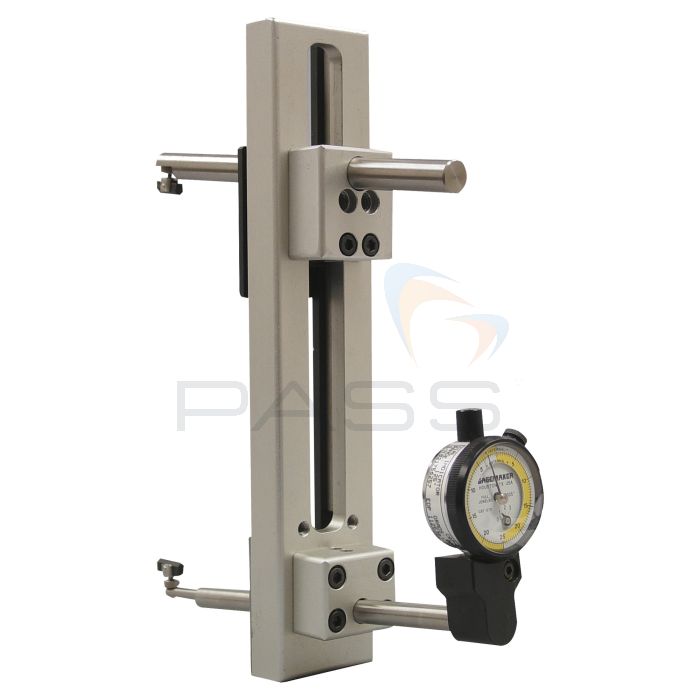

- Gagemaker 90-MRP1500 MRP Air Pitch Diameter & Ovality Internal/External Gauge, Solid Frame Style
- Gagemaker 90-MRP-AIR-2001 MRP Air Pitch Diameter & Ovality External Gauge, 4¼" Reach
- Gagemaker 90-MRP-AIR-2003 MRP Air Pitch Diameter & Ovality Internal/External Gauge, 4¼" Reach
- Gagemaker 90-MRP-AIR-2003-7 MRP Air Pitch Diameter & Ovality Internal/External Gauge, 7" Reach
- Gagemaker 90-MRP-AIR-2003-10 MRP Air Pitch Diameter & Ovality Internal/External Gauge, 10" Reach
- Gagemaker 90-MRP2511 MRP Air Pitch Diameter & Ovality External Gauge, 4" Reach (4½-9⅝")
- Gagemaker 90-MRP2512 MRP Air Pitch Diameter & Ovality Internal Gauge, 3-3/8" Reach (4½-9⅝")
- Gagemaker 90-MRP2521 MRP Air Pitch Diameter & Ovality External Gauge, 4" Reach (4½-13⅜")
- Gagemaker 90-MRP2522 MRP Air Pitch Diameter & Ovality Internal Gauge, 3-3/8" Reach (4½-13⅜")
- Gagemaker 90-MRP2523 MRP Air Pitch Diameter & Ovality Internal/External Gauge, 3-3/8" Reach (4½-13⅜")
- Gagemaker 90-MRP3001 MRP Air Pitch Diameter & Ovality External Gauge, 3-3/8" Reach
- Gagemaker 90-MRP3003 MRP Air Pitch Diameter & Ovality Internal/External Gauge, 3-3/8" Reach (8⅝-24")
- Gagemaker 90-MRP3503 MRP Air Pitch Diameter & Ovality Internal/External Gauge, 6¼ Reach
Technical Information
Specification
| Description | Range (inch) | |
|---|---|---|
| 90-MRP1500 | Internal / External PD Gauge (Solid Frame Style) | 1 1/2-4 1/2 |
| 90-MRP-AIR-2001 | External PD Gauge with 4 1/4" reach | 2 3/8-20 |
| 90-MRP-AIR-2003 | Internal / External PD Gauge with 4 1/4" reach | 2 3/8-20 |
| 90-MRP-AIR-2003-7 | Internal / External PD Gauge with 7" reach | 2 3/8-20 |
| 90-MRP-AIR-2003-10 | Internal / External PD Gauge with 10" reach | 2 3/8-20 |
| 90-MRP2511 | External PD Gauge with 4" reach | 4 1/2-9 5/8 |
| 90-MRP2512 | Internal PD Gauge with 3 3/8" reach | 4 1/2-9 5/8 |
| 90-MRP2521 | External PD Gauge with 4" reach | 4 1/2-13 3/8 |
| 90-MRP2522 | Internal PD Gauge with 3 3/8" reach | 4 1/2-13 3/8 |
| 90-MRP2523 | Internal / External PD Gauge with 3 3/8" reach | 4 1/2-13 3/8 |
| 90-MRP3001 | External PD Gauge with 3 3/8" reach | 2,690.00 |
| 90-MRP3003 | Internal / External PD Gauge with 3 3/8" reach | 8 5/8-24 |
| 90-MRP3503 | Internal / External PD Gauge with 6 1/4" reach | 8 5/8-24 |
