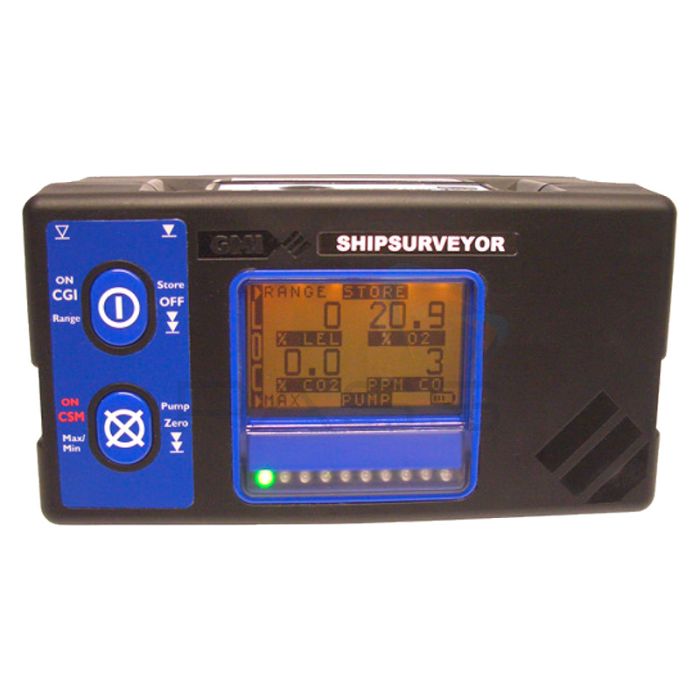

GMI Shipsurveyor Portable Gas Detector - Choice of Model

The GMI Shipsurveyor is a portable gas detector that is designed for marine applications, such as confined space monitoring, cargo monitoring, and inerting. It can measure and display up to five gases simultaneously, using infrared technology for hydrocarbon and carbon dioxide detection.

Up to 5 gases can be simultaneously measured and displayed. The hydrocarbon range, which utilises the latest infrared technology, can be calibrated with Butane, Propane, or Methane, depending on the application.

It has a built-in pump, datalogging software, and easy calibration features. It is approved by ATEX and MED for shipping use.

The Shipsurveyor also comes complete with an impressive and practical suite of application software. Our bespoke software not only allows simple on-board calibration but crucially provides the ability to print calibration certificates. In addition, complete datalogging software comes as standard allowing logged gas readings, with vessel locations, to be uploaded to a PC.

Note: The default calibration gas is Butane. If another calibration gas is required (i.e. Methane, Propane or Pentane), please specify when ordering.

Key Features

• Easy to use 2-Button Instrument
• Infrared technology for inert atmosphere measurements
• Simple calibration with certificate printing
• Large display - all gas readings are simultaneously displayed
• Dual Mode - Combustible Gas Indicator (CGI) and Confined Space Monitor (CSM )
• Configurable Audible and Visual Alarms (CSM)
• Internal pump with superior flow rate to minimise tank sampling times
• Enhanced datalogging with 'Location'
• Innovative 'quick-connect' range of accessories
• Fault detection and reporting
• Language options

What's Included

• Shipsurveyor
• Hard Carrying Case
• User Handbook
• Probe Handle w/Dust & Water Filters
• 1m Conductive Tubing w/Quick Connect
• 15cm Probe
• Neck/Shoulder and Waist Harness
• Hex Driver
• 10 x Dust Filters
• Quick Op Guide
• Calibration Certificate
• Configuration Report
• Data Downloading Software & Calibration Software (Flexical Pro)

Product Range

• GMI 48021 Shipsurveyor 1, LEL / VOL
• GMI 48022 Shipsurveyor 2, LEL / VOL / O2
• GMI 48023 Shipsurveyor 3, LEL / VOL / O2 / H2S
• GMI 48024 Shipsurveyor 4, LEL / VOL / O2 / CO2
• GMI 48025 Shipsurveyor 5, LEL / VOL / O2 / CO2 / CO
• GMI 48026 Shipsurveyor 6, LEL / VOL / O2 / H2S / CO
• GMI 48027 Shipsurveyor 7, O2 / CO2
• GMI 48028 Shipsurveyor 8, LEL / VOL / O2 / CO2 / H2S
