Description

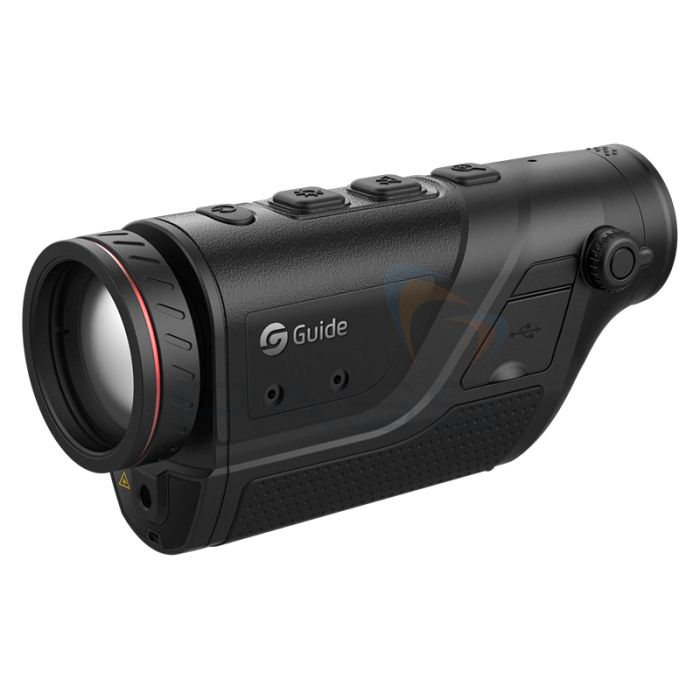

The Guide TD Gen2 Series follows the design of traditional optical equipment. It is a lightweight, portable, simple operation with a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness OLED display, the TD Gen2 Series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.
Four models with different focal lengths, fields of view, and detection ranges. Choose from 10mm, 19mm, 25mm, or 35mm lenses with 12μm.
Key Features
- Boot up in 2 seconds and ready to use
- High-brightness OLED display for a comfortable observation
- Upgraded image algorithm for richer details
- Super long battery life of up to 10 hours
- IP66 encapsulation, rugged and durable
- New UI and interaction design for easier operation
- OTA firmware upgrade by connecting APP
Applications
- Outdoor
- Wild Adventure
- Law Enforcement
- Search & Rescue
- Personal Security
- Livestock Breeding
What's Included?
- Thermal Imaging Monocular
- Lens cover and lanyard
- Battery charger
- Single 18650 battery
- USB Type-C cable
- Wrist strap
- Carry bag
- Eye mask
- Quick use guide
- Guide warranty card
Product Range
- Guide TD211 Thermal Monocular - 256 x 192 px, 12μm, 10mm Lens (50Hz)
- Guide TD411 Thermal Monocular - 384 x 288 px, 12μm, 19mm Lens (50Hz)
- Guide TD421 Thermal Monocular - 384 x 288 px, 12μm, 25mm Lens (50Hz)
- Guide TD431 Thermal Monocular - 384 x 288 px, 12μm, 35mm Lens (50Hz)
Downloads
Brochures & Catalogues
Tech Specs
TD211 | TD411 | TD421 | TD431 | |
---|---|---|---|---|
Infrared Detector | ||||
Detector Type | VOx, 8 to 14 μm | |||
Detector Resolution | 256 x 192, 12 μm | 384 x 288, 12 μm | ||
NETD | ≤50mk | ≤40mk | ||
Frame Rate | 50Hz | |||
Lens | ||||
Focal Length | 10 mm; F1.0 | 19 mm; F1.0 | 25 mm; F1.1 | 35 mm; F1.0 |
Field of View | 17.5° x 13.2° | 13.6° x 10.3° | 10.4° x 7.9° | 7.5° x 5.6° |
Optical Zoom | 0.7x | 1.4x | 1.9x | 2.6x |
Digital Zoom | 1x, 2x | 1x, 2x and 4x | ||
Focus | Focus-free | Manual | ||
Display | ||||
Display Type | 0.23' OLED | |||
Resolution | 640 x 400 | |||
Eyepiece | Monocular, exit pupil distance≥12 mm, diopter adjustment: -4 to +2 | |||
Eyepiece Zoom | 18x | |||
Video Output | Analog video | |||
Functions | ||||
Scene Modes | Enhanced, Highlight, and Natural | |||
Colour Palettes | Black Hot, White Hot, Red Hot, Iron Red, Blue Hot | |||
Hot Spot Tracking | Available | |||
WiFi | Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 meters | |||
Rough Ranging | Available with APP | |||
PIP | Upper left, Upper middle, Upper right, Closed | |||
Compensation Modes | Automatic, shutter and scene compensation | |||
Power | ||||
Battery Type | Single, replaceable 18650 battery | |||
Operating Time | ≥ 12 hours | ≥ 10 hours | ||
Environmental | ||||
Storage temperature | -30 °C to 60 °C | |||
Humidity | 10 % to 95 % non-condensing | |||
Shock | 30 G at 11 ms half-sine pulse (as per IEC60068-2-27) | |||
Vibration | 10 Hz~150 Hz~10 Hz 0.15 mm (as per IEC60068-2-6) | |||
Drop | 1 m | |||
Encapsulation | IP66 | |||
Certification | IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2 | |||
Detection Range | ||||
Range | 400 m | 800 m | 1000 m | 1400 m |
Physical | ||||
Weight | ≤280 g | ≤330 g | ≤325 g | ≤345 g |
Size | 140 x 45 x 74 mm | 150 x 45 x 74 mm | 150 x 49 x 74 mm |
