Description

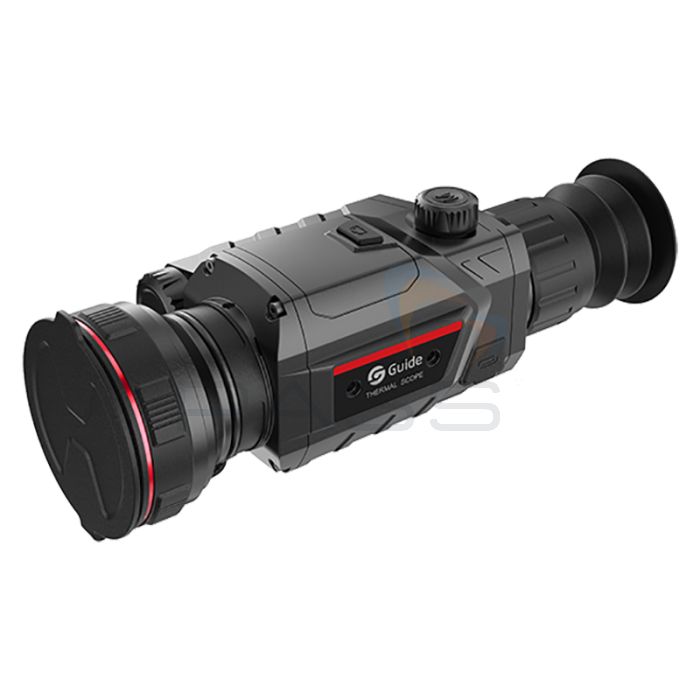

The Guide TR Series is an economical civilian infrared thermal imaging scope that adopts a high-sensitivity thermal detector with three different lens options - 25 mm, 35 mm, and 50 mm.
Introducing the TR Series thermal imaging scope!
The TR Series offers sharp and detailed images with 384 x 288 IR resolution, depending on the model, while retaining accuracy. Compact size, waterproof and dustproof, high shock resistance, rugged and durable, performs impressively in harsh weather.
Suitable for hunting, border defense, law enforcement, and outdoor activities.
Unboxing of the #guidesensmart TR Series Thermal Imaging Scope
Key Features
- Fast and easy replaceable 18650 battery for 8 hours of operation
- 1024 x 768 resolution HD AMOLED display for image detail
- Support photo and video, record wonderful moments at any time, easy to share
- Screen freezing for quick and easy zeroing
- Support device firmware updates by connecting the TargetIR APP
- Get precise 600m laser ranging using an external range finder
- A wide range of operating temperatures (-30°C to 50°C )
- IP 67 dustproof and waterproof rated
Applications
- Law Enforcement
- Outdoor Observing
What's Included?
- Thermal Imaging Scope
- Type C cable
- 5V2A adapter (US, UK, AU, and EU)
- 18650 battery
- Battery charger
- Lens cap
- Eye mask
- Quick start guide
Product Range
- Guide TR420 Thermal Scope - 384x288 px, 12μm, 25mm Lens (50Hz)
- Guide TR430 Thermal Scope - 384x288 px, 12μm, 35mm Lens (50Hz)
- Guide TR450 Thermal Scope - 384x288 px, 12μm, 50mm Lens (50Hz)
Downloads
Brochures & Catalogues
Tech Specs
TR420 | TR430 | TR450 | |
---|---|---|---|
Sensor | |||
Type | Uncooled VOx Infrared Detector, 8 to 14 μm | ||
Resolution | 384 x 288, 12 μm | ||
NETD | NETD ≤30mK | ||
Frame Rate | 50 Hz | ||
Lens | |||
Focal Length | 25 mm, F1.0 | 35 mm, F1.0 | 50 mm, F1.0 |
Field of Angle | 10.44° x 7.87° | 7.50° x 5.64° | 5.27° x 3.95° |
Optical Zoom | 2.4x | 3.3x | 4.7x |
Digital Zoom | 1x ~ 4x | ||
Focus | Manual | ||
Display | |||
Display type | 0.39' AMOLED | ||
Resolution | 1024 x 768 | ||
Eyepiece | Exit pupil distance ≥ 48 mm; Diopter ± 4; Zoom: 14x | ||
Video Output | Analog video | ||
Range Performance | |||
Detection Range | 1000 m | 1400 m | 2000 m |
Functions | |||
Scene Modes | Enhanced, Highlight, and Natural | ||
Colour Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot | ||
Recording Function | Photo/Video | ||
WiFi | 2.4G | ||
Supported Application | TargetIR | ||
Firmware OTA | Upgrade device firmware via app connection | ||
Others | PIP, Hot spot tracking, Rough ranging | ||
Power | |||
Battery Type | Single, replaceable 18650 battery | ||
Operating Time | ≥ 8 hours | ||
Interface | |||
USB | USB Type-C | ||
Mechanical Interface | Picatinny | ||
System | |||
Language Settings | English / Russian / German / French / Italian / Spanish / Japanese / Korean | ||
Memory Capacity | 32GB | ||
Environmental | |||
Operating Temperature | -30°C to 50°C | ||
Storage Temperature | -45°C to 70°C | ||
Humidity | 10 % to 95 % non-condensing | ||
Shock | 800 G at 1 ms half-sine pulse (as per IEC60068-2-27) | ||
Drop | 1m | ||
Encapsulation | IP67 | ||
Certification | IP67, FCC, CE, RoHS, EAC, WEEE, UKCA, un38.3 | ||
Physical | |||
Weight | ≤540 g | ≤590 g | |
Size | 202 x 88 x 66 mm | 208 x 88 x 66 mm | 219 x 88 x 66 mm |
