Hikmicro Pocket 2 Thermal Camera
Hikmicro Pocket 2 Thermal Camera
A portable, high-performance thermal camera for professionals, the Hikmicro Pocket 2 Thermal Camera is an infrared imager with a 256x192px VOx thermal sensor, 8MP optical lens, -20°C to +400°C temperature range, and 3.5” LCD touchscreen. Ideal for building inspections as well as HVAC, electrical, and mechanical equipment maintenance, the Hikmicro Pocket 2 can be used to locate faults faster and measure temperatures more accurately. A 25Hz frame rate delivers smooth thermal imaging while Wi-Fi connectivity allows images to be shared in real-time to a smartphone/tablet with the Hikmicro Viewer App installed. Via this app, you can also analyse images and generate reports; Hikmicro’s Analyser PC Software may also be used to create reports.
Images and videos are captured and saved to the camera’s built-in 16GB memory. They may be played back on the camera as required. Image contrast can be easily adjusted using the three-level and span modes (manual, automatic, and 1-tap) to highlight potential problems. Moreover, a built-in speaker and LED torch issue audio and visual alerts when high temperatures are detected, while different user presets facilitate full-screen measurement.
In addition to providing visual alerts, the Hikmicro Pocket 2 Thermal Camera’s built-in LED torch also allows you to work safely in dark or dim environments. Furthermore, the thermal camera is IP54-rated, protecting it against dust and water ingress, and has been drop tested from 2m, making it suitable for use in industrial environments.
Portable, powerful, and precise, the Hikmicro Pocket 2 Thermal Camera is a professional, pocket-sized thermal imager.
Videos
Key Features
- A portable, high-performance thermal camera for professionals
- 256x192px VOx thermal sensor
- 8MP optical lens
- Temperature range: -20°C to +400°C
- 3.5” LCD touchscreen
- Ideal for building inspections as well as HVAC, electrical, and mechanical equipment maintenance
- Frame rate: 25Hz
- Built-in Wi-Fi
- Share images in real-time to a smartphone/tablet with the Hikmicro Viewer App installed
- Analyse images and generate reports using Hikmicro's Viewer App
- Create reports with Hikmicro's Analyser PC Software
- Built-in 16GB memory
- Three level and span modes (manual, automatic, and 1-tap)
- Built-in speaker
- LED torch
- IP54-rated
- 2m drop-tested
- A professional, pocket-sized, powerful thermal imager
What's Included?
- Hikmicro Pocket 2 Thermal Camera
- Pouch
- Wrist Strap
- USB Cable
- Power Supply
- Quick Start Guide
- Calibration Certificate
Hikmicro Pocket 2 Thermal Camera Technical Specifications
| Thermal Module | Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| IR Resolution | 256 x 192 (49,152 pixels) | |
| NETD | < 0.04°C (40 mK) at 25°C (77°F) Ambient Temperature, F#=1.0 | |
| Focal Length | 3.5 mm | |
| FOV (Field of View) | 50.0 °H × 37.2 °V | |
| Image Frequency | 25 Hz | |
| Focus | Fixed | |
| IFOV (Spatial Resolution) | 3.43 mrad | |
| Optical Module | Picture Resolution | Configurable: 2 MP, 5 MP, 8 MP |
| Image Display | Display | 640 × 480 Resolution, 3.5’’ LCD Touch Screen |
| Colour Palettes | 7: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain | |

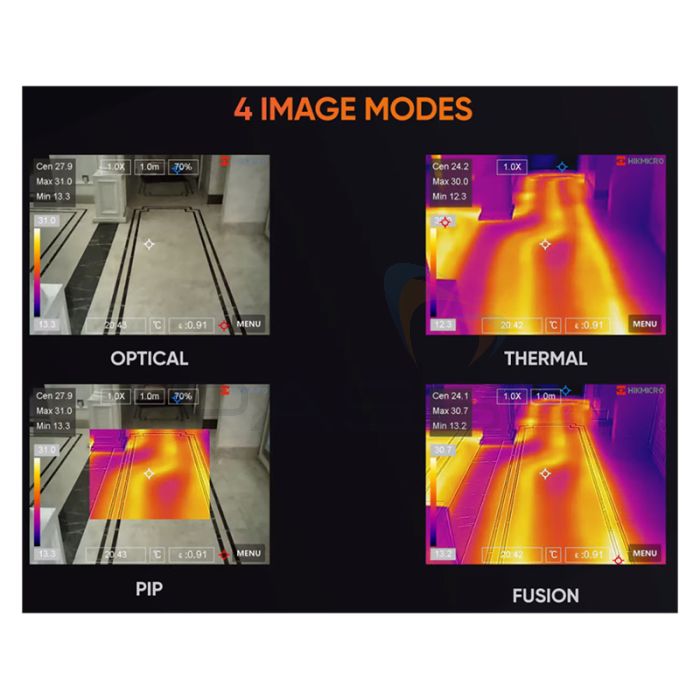

| Image Modes | Thermal/Optical/Fusion/PIP | |
| Measurement and Analysis | Object Temperature Range | -20 °C to 400 °C ( -4 °F to 752 °F ) |
| Accuracy | Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
|
| Measurement Presets | Center Spot, Hot Spot, Cold Spot, Off | |
| High-Temperature Alarm | Audible/visual alarm of above temperature threshold, User-defined temperature threshold |
|
| Storage | Storage Media | EMMC (16 GB) |
| Image Storage Capacity | Approx. 60,000 Images | |
| Image File Format | Radiometric.JPEG with Measurement Data Included | |
| Text Note | Max. 200 Characters | |
| Video Storage Capacity | Approx. 10 h | |
| Video File Format | Standard MP4 Non-radiometric video | |
| Functions | LED Light | Yes |
| Microphone | Yes | |
| Buzzer | Yes | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz, 5 GHz) | |
| Bluetooth | Bluetooth 4.2 | |
| Connect with APP | Yes, HIKMICRO Viewer | |
| Level/Span | Auto/Manual/1-Tap Touch Screen | |
| Power System | Battery Operating Time | 4 Hours Continuous Running |
| General | Menu Language | 21 Languages |
| Protection Level | IP54 | |
| Drop Test Height | 2 m (6.56 ft) | |
| Weight | Approx. 218 g (0.48 lb) |
| SKU | HIK-POCKET2 |
|---|---|
| Manufacturer Part Code | POCKET2 |
