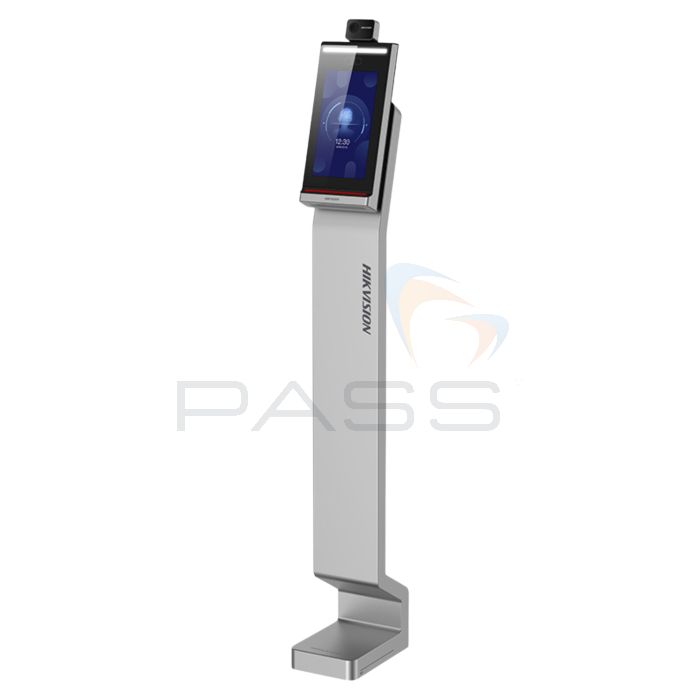

Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal w/ Stand
The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with an integrated stand is an access control instrument capable of face recognition and temperature screening. It can also be connected to a card reader (NOT included) to enable card recognition.
Please see the following video for an overview of the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal and its applications.The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can be set to one of three authentication modes:
- Face recognition and temperature screening
- Card recognition and temperature screening
- Face recognition, card recognition and temperature screening
The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can be used to protect persons in stations, dwellings, factories, businesses, schools and campuses from unauthorised access and further spread of infection.
Practical, Plug & Play Design
The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal is comprised of a 10.1-inch LCD display with adjustable brightness and a stand bracket. These components are integrated and supplied ready-assembled. The Hikvision DS-K5604A-3XF/V Plug & Play Temperature-Screening Terminal with Integrated Stand can be set up within five minutes as it is free of wiring, installation and configuration. It features a watchdog design optimised to protect the access control device and ensure that it is operating correctly. For a quick introduction to the Hikvision DS-K5604A-3XF/V Plug & Play Temperature-Screening Terminal with integrated stand, please see the following video.
Furthermore, to enable face recognition and temperature screening, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal is equipped with 2MP wide-angle lens and a Vanadium Oxide uncooled sensor for temperature measurement. It also features a high-performance processor with a deep learning algorithm, as well as an IO output and Wiegand for communicating with third-party turnstiles.
Temperature Screening
The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal is optimised for conducting fast skin-surface temperature measurements. It will conduct skin-temperature screening upon detection of a human face and does not require identity authentication. It is able to measure temperatures between 30°C and 45°C to an accuracy ±0.5°C.*
Temperature measurements are displayed on the authentication page. The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal will issue a voice prompt when an abnormal temperature is detected. It is also possible to configure the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal door status to open or close when an anomalous skin temperature is measured.
Online and offline temperature measurements are transferred to the client’s software via TCP/IP communication. Data is saved to the client’s software.
Face Recognition
The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can also be used to grant or deny authentication/ building or room access depending on facial recognition. It will issue an audio prompt depending on the authentication result
The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal has the capacity to store up to 50 000 recognised faces as well as up to 100 000 events. It is 99% accurate when recognising faces** and is able to determine face recognition within 0.2s per person. Individuals should stand between 0.3 and 2m away from the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal during this process.
The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal will transfer and save face recognition comparison results and captured pictures to the user’s software.
Face Mask Alerts
In addition to identifying recognised faces, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can assess whether these individuals are wearing a face mask. The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal includes two face mask alerts allowing the user to adapt the terminal to suit the premises’ policies:
- Face Mask Wearing Alert: if the recognised face is not wearing a face mask, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal will issue a voice reminder while granting authentication/ access to the building or room.
- Forced Mask Wearing Alert: if the recognised face is not wearing a mask, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal will issue a voice alert while denying authentication/ access to the room or building.
Attendance Monitoring
Further to the above, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal can be used to monitor attendance and is able to log check-in, check-out, break-in, break-out, overtime-in and overtime-out times.
To ensure accurate timekeeping, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal supports NTP, manual and automatic time synchronisation.
The Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal is a rapid deployment access control and temperature-screening instrument suitable for security and temperature-screening applications.
Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal Key Features
- An access control instrument capable of face recognition and temperature screening
- Includes two face mask alerts
- Can be connected to a card reader (NOT included) to enable card recognition
- Three authentication modes: face recognition and temperature-screening, card-recognition and temperature-screening, face recognition, card recognition and temperature-screening
- Suitable for use in stations, dwellings, factories, businesses, schools and campuses
- Can be used to prevent unauthorised access and further spread of infection
- 10.1-inch LCD with an integrated stand
- Adjustable brightness
- Supplied ready-assembled
- Can be set up within five minutes: free of wiring, installation and configuration
- Watchdog design
- 2MP wide-angle lens
- Vanadium Oxide uncooled sensor for measuring temperature
- High-performance processor with a deep learning algorithm
- IO output
- Wiegand for communicating with third-party turnstiles
- Begins temperature-screening upon detection of a human face
- ID authentication is not required to begin temperature screening
- Temperature range: 30°C to 45°C
- Accuracy: ±0.5°C*
- Temperatures are displayed on the authentication page
- Issues a voice prompt when an abnormal temperature is detected
- The door status can be configured to open or close when an abnormal temperature is detected
- Online and offline temperature measurements are sent to the user’s software via TCP/ IP communication
- Temperature data is saved to the client’s software
- Can store up to 50 000 recognised faces and 100 000 events
- Face recognition accuracy: 99%
- Can determine face recognition within 0.2s per person
- Recognition distance: 0.3m to 2m
- Issues a specific audio prompt depending on the authentication result
- Transfers and saves face recognition comparison results and captured photos to the user’s software
- Face Mask Wearing Alert: if the recognised face is not wearing a face mask, the terminal will issue a voice reminder while granting authentication/ access to the building or room
- Forced Mask Wearing Alert: if the recognised face is not wearing a mask, the terminal will issue a voice alert while denying authentication/ access to the room or building
- Monitor attendance: log check-in, check-out, break-in, break-out, overtime-in and overtime-out times
- Supports NTP, manual and automatic time synchronisation
- A rapid deployment access control and temperature-screening instrument
- Suitable for security and temperature-screening applications
*To achieve this accuracy, the Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal should be switched on and left to warm up for ninety minutes.
**Biometric recognition products are not 100% suitable for anti-spoofing environments. Multiple authentication modes should be used for applications requiring a higher level of security.
What’s Included?
- Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand
Hikvision DS-K5604A-3XF/V Plug & Play MinMoe Temperature-Screening Terminal with Integrated Stand Technical Specifications
| Temperature Measurement | |
| Temperature range | 30 °C to 45 °C (86 °F to 113 °F) |
| Sensor | Vanadium Oxide uncooled sensor |
| Resolution | 120 × 160 |
| Frame rate | 25 fps |
| Measurement accuracy | 0.1 °C |
| Measurement deviation | ± 0.5 °C, without black body calibration |
| Measuring distance | 0.3 to 2 m |
| Screen | |
| Size | 10.1-inch |
| Type | Touch screen |
| Camera | |
| Pixel | 2 MP |
| Lens | Dual-lens |
| Network | |
| Wired network | Support, 10/100/1000 Mbps self-adaptive |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| Capacity | |
| Face capacity | 50,000 |
| Event capacity | 100,000 |
| Authentication | |
| Face recognition duration | ＜ 0.2 s per person |
| Face recognition distance | 0.3 to 2 m |
| Function | |
| Face anti-spoofing | Support |
| Audio prompt | Support |
| Others | |
| Power supply | 12 VDC/2 A |
| Working temperature | 0 °C to 50 °C (32 °F to 122 °F) For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F) |
| Working humidity | 10 to 90% (No condensing) |
| Application environment | Indoor and windless environment use only |
| SKU | DS-K5604A-3XF/V |
|---|---|
| Manufacturer Part Code | DS-K5604A-3XF/V |
