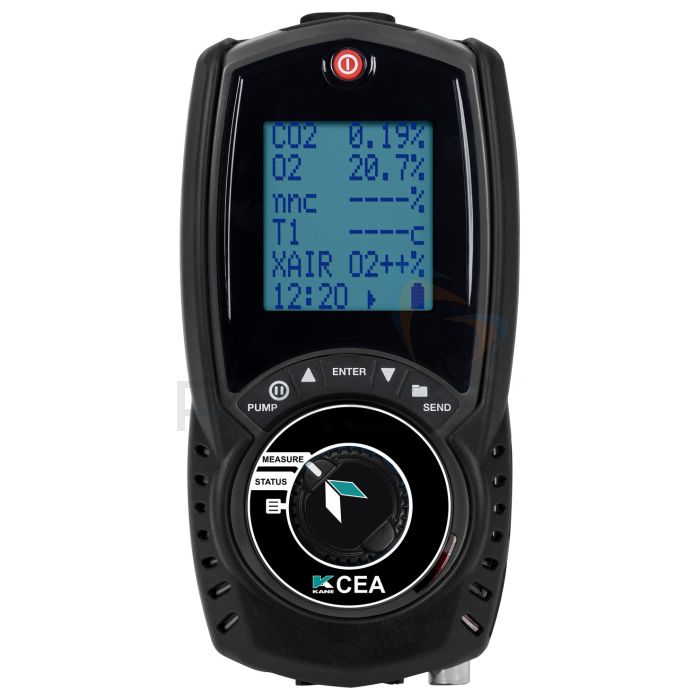

Kane CEA Combustion Efficiency Analyser

The KANE CEA Combustion Efficiency Analyser tests boilers up to 5MW, with stack draughts reaching up to 50 mbar. The CEA has a long-life NDIR CO₂ sensor that provides measurements of CO₂ levels up to 20%.

It has a large, high-contrast display, an intuitive rotary dial, and a built-in worklight. It is compatible with a wide range of fuel types, including natural gas, LPG, biogas, oil, coke, coal, and wood pellets, with onboard calculations.

View, hold, store, or print results on-site using the optional KANE IRP3 infrared printer. Additionally, the analyser supports wireless connectivity through the KANE LIVE module, making data transfer and record-keeping seamless. It also includes a high-capacity water trap and particle filter as standard.

Key Features

• High capacity water trap & particle filter
• Unique long life NDIR CO₂ sensor
• Real time measurements & calculations
• Large display & unique rotary dial
• KANE LIVE wireless module
• Rugged, battery-powered go anywhere analyser
• View, hold, store & print test results to optional KANE-IRP3 printer
• Worklight
• Test boilers up to 5MW & 50mbar stack draught
• Save fuel, reduce pollution & increase efficiency
• Payback in months: 1% efficiency = 1% lower fuel bill
• Measure flue stack temp & CO2 in real time
• Calculate O2, combustion efficiency & excess air
• Print results to optional KANE-IRP3 printer
• Large display & easy to use rotary dial
• Long life NDIR CO2 sensor
• Made in Britain
• Measures
  • CO2 to 20%
  • Flue temperature to 600°C
• Calculates
  • O2, combustion efficiency & excess air
  • Net temperature
• Fuel Types
  • Natural Gas, LPG & Biogas
  • Propane & Butane
  • Light & Heavy Oil
  • Coke, Coal & Wood pellets

What's Included?

• Boiler Efficiency Analyser
• SM50056 high capacity water trap & filter
• CP2 probe
• 3 x AA rechargeable batteries
• USB1 charger
• MSC00237 protective pouch
