Made specifically for use in gas network testing, the KIMO MP130 is an essential instrument for gas professionals.
Portable and easy to use with simple, five-button design, a large-size, backlit LCD screen and a number of useful functions, the KIMO MP130 delivers consistent, reliable results.
The KIMO MP130 can test pressure levels from -200 to +200mbar with selectable pressure measurement units of Kpa, inWg, mbar, mmHg and daPa. Resolution is as low as 0.01mbar (from 0 to 20mbar) and 0.1mbar (from 20 to 200mbar).

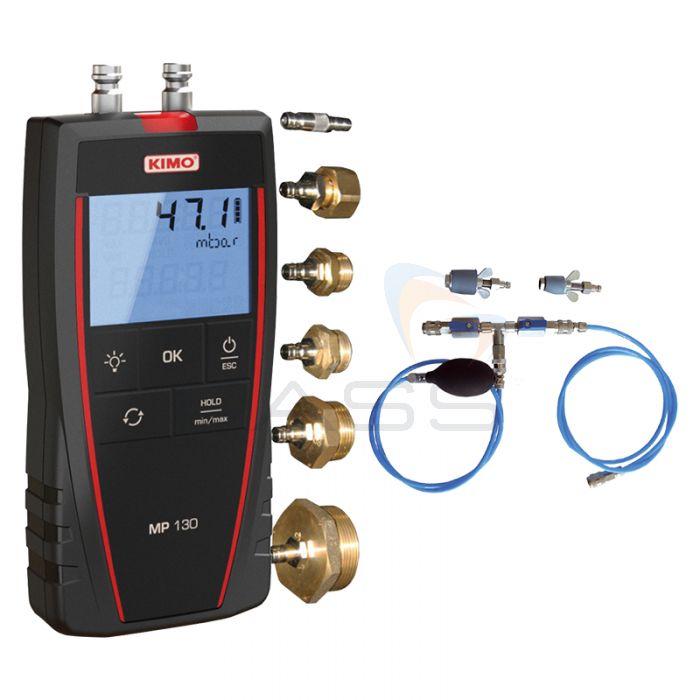

This version of the MP130 is supplied with a seal kit which includes stainless steel male and female connectors, two plugs, a tap with 2 valves and 3 channels, a pressurisation pump and different connector types.
KIMO MP130 Micro Manometer for Gas Network Leak Testing Key Features
Special manometer specifically designed for gas network leak testing
4.6mm diameter threaded connectors made from nickelled brass
Measure pressure in selectable units: Kpa, inWg, mbar, mmHg and daPa
Measurement range from -200 to +200mbar
Manual self calibration function
Hold function temporarily freezes current value shown on the screen
Display MAX/MIN values taken over a period of time
Configurable automatic shutoff
Backlight - ideal for use in darkened areas
180 hour battery life
What's Included?
KIMO MP130 Manometer
Calibration Certificate
Transport Case
This unit also includes a Seal Kit, which includes:
Stainless Steel Male Connector (9mm Diameter)
Stainless Steel Female Connector (9mm Diameter)
Plug - Outside Diameter 22-44mm, 9mm Male Connector
Plug - Outside Diameter 18-32mm, 9mm Male Connector
Tap with 2 Valves and 3 Channels
Rubber Pressurisation Pump
10-32 Connector
6-20 Connector
Male Bottle Connector
M20x1.5 Connector
1/2G Connector
Fast Connector
£402.93
£483.52 inc vat
Free Delivery*
Important Notice This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
