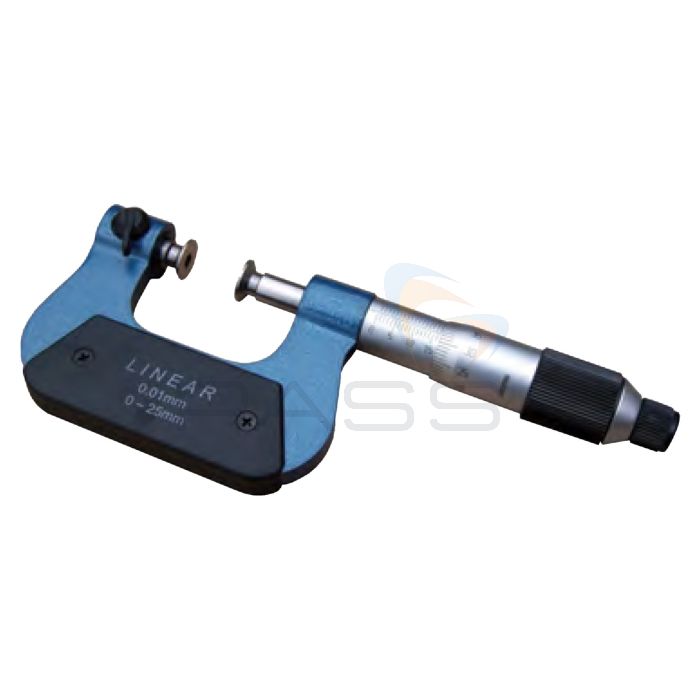

Linear Tools Mechanical Universal Multi Anvil Micrometer
- Seven pairs of anvils
- Ratchet-style barrel
- 0-25mm or 25-50mm range
SKU
LIN-50-192-025/50
These Linear Tools micrometers include seven pairs of easily interchangeable push-in anvils for a wide range of measurement applications. They have a ratchet-style barrel and a non-glare satin chrome finish. Models above 25mm include a setting rod.
Key Features
- Complete with seven pairs of special push-in anvils
- Ratchet style barrel for easy one-handed use
- Non-glare satin chrome barrel and sleeve
- Micrometers above 25mm supplied with setting rod
- Also accepts screw thread elements supplied separately
- Set includes following pairs of tips:
- Flat: 6.5mm diameter x 4.5mm long
- Spherical: 6.5mm x 4.5mm long with 5mm radius
- Blade: 0.7mm wide x 4mm long
- Spline: 2mm diameter x 3.7mm long
- Disc: 12mm diameter x 4.5mm long
- Conical Point: 60º x 4.5mm long
- Knife: 60º x 4.5mm long
Product Range
- Linear Tools 50-192-025 Mechanical Universal Multi Anvil Micrometer, 0-25mm
- Linear Tools 50-192-050 Mechanical Universal Multi Anvil Micrometer, 25-50mm
Technical Information
Document Downloads
Additional Information
SKU
LIN-50-192-025/50
Linear Tools Mechanical Universal Multi Anvil Micrometer
£308.00
£369.60 inc vat
£308.00
£369.60 inc vat
