Mark-10 ES20 Handwheel- Operated Test Stand

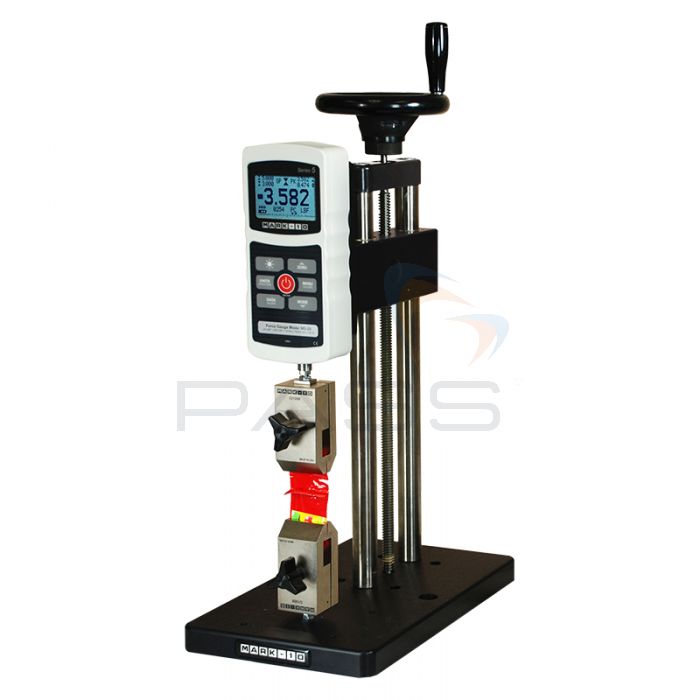

The Mark-10 ES20 Hand Wheel Operated Test Stand can be used with Mark-10’s force gauges to conduct compression and tensile tests on small samples. This test stand is optimised for precision testing and as such includes a top-mounted handwheel to ensure repeatable and reliable results.

This compact test stand features a large base plate with 5 #10-32 UNF holes for fixture mounting and holes for bench mounting. The Mark-10 ES20 Hand Wheel Operated Test Stand can also be used with grips and OPTIONAL dial and digital indicators (display up to 1”/ 25mm of displacement), as well as the aforementioned force gauges to create a complete, customised and cost-effective testing system.

The Mark-10 ES20 Hand Wheel Operated Test Stand is a compact, cost-effective and customisable manual test stand.

Mark-10 ES20 Hand Wheel Operated Test Stand Key Features

  • Use with Mark-10’s force gauges to conduct compression and tensile tests on small samples
  • Optimised for precision testing
  • Top-mounted handwheel ensures results are repeatable and reliable
  • Large base plate with 5 #10-32 UNF holes for fixture mounting
  • Holes for bench mounting
  • Can be used with OPTIONAL grips, force gauges and dial and digital indicators to create a complete, cost-effective testing system
  • A compact, cost-effective and customisable manual test stand

What’s Included?

  • Mark-10 ES20 Hand Wheel Operated Test Stand
  • Hand Wheel
  • Thumb-screw for Force Gauge
  • Resource CD

Mark-10 ES20 Hand Wheel Operated Test Stand Technical Specifications

Maximum Force 100 lbF [500 N]
Maximum Travel 9" [229 mm]
Loading Method Top-mounted hand wheel
Travel Rate 0.083" [2.1 mm] / wheel rev.
Weight 10 lb [4.5 kg]
