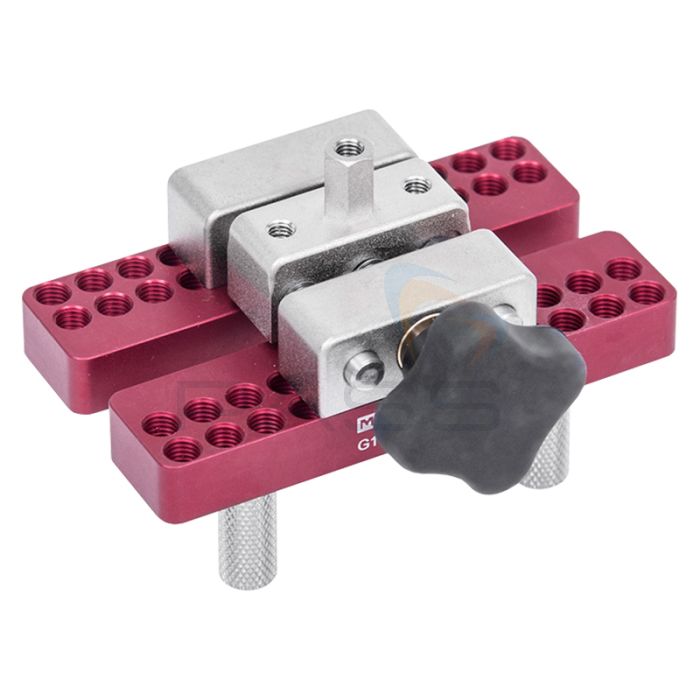

Mark-10 G1058 Cap Grip, Hex / #10-32F

This Mark-10 G1058 grip is designed to effectively secure samples for torque and pull tests. Typical applications include bottle cap torque testing, lid pull-off testing, and other tests requiring vice-action.

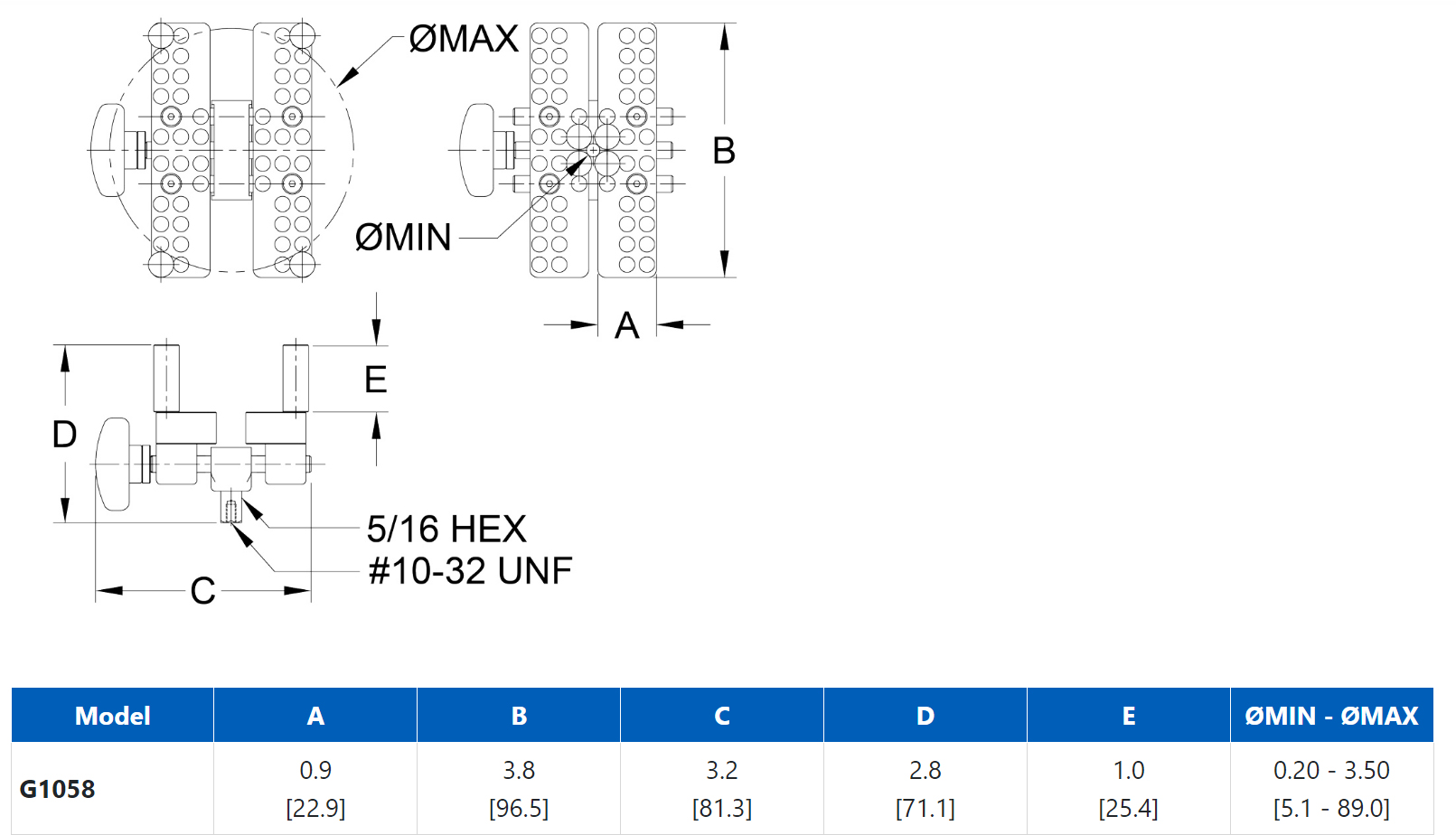

A matrix of threaded holes allows the serrated steel posts to be placed in positions specific to the test sample, with a broad diameter range of 0.2 - 3.5in (5.1 - 89mm).

An ergonomic, rubberized knob easily engages and disengages samples, while a precision Acme screw provides durability and longevity over repeated engagements.

This grip can be used either manually with an R50 torque sensor or TT03 torque gauge or in test stand-controlled applications with the TSTM-DC torque test stand.

A hex tail with female threads permits mounting to a torque gauge, force gauge, or test frame.

Thread size #10-32F.

Key Features

• Adjustable posts and vise-action mechanisms accommodate a wide range of sample shapes and sizes
• May be used in torque and force measurement applications
• Capacity: 100 lbFin [11.3 Nm] or 50 lbF [250 N]
• Weight: 0.65 lb [0.29 kg]
