Mark-10 G1061 Wedge Grips – Choice of Model
- Optimised for performing tensile tests on a variety of materials
- Four models available that vary in regards to size, capacity and jaw material
- Jaws are designed to prevent jamming and to improve grip
SKU
G1061-X

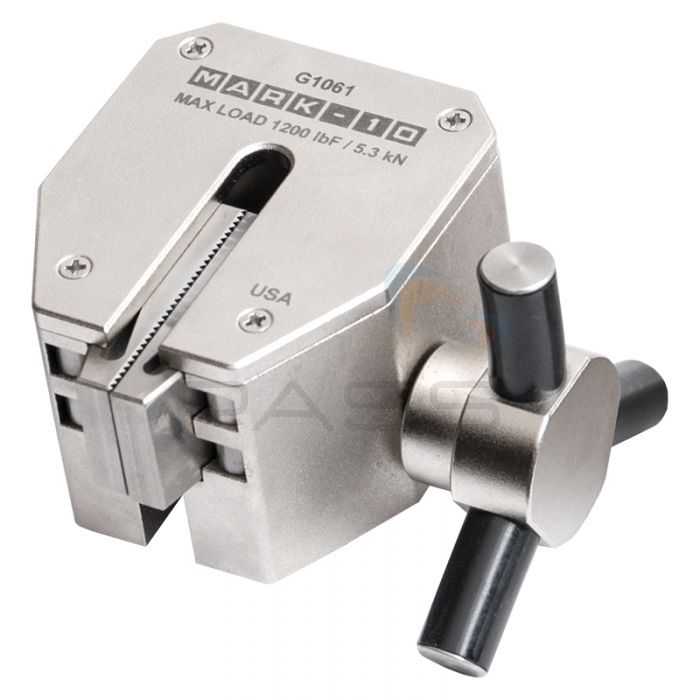

The Mark-10 G1061 Wedge Grips are designed for use with Mark-10’s force gauges and test stands. They are optimised for performing tensile tests on a wide variety of materials, including paper and film.
The Mark-10 G1061 Wedge Grips are available in different sizes and with serrated steel jaws or rubber jaws. The capacity of the grip is also dependent on the model, for further information regarding the differences between the Mark-10 G1061 Wedge Grips, please see the following table.
| Model | Capacity lbF (kN) | Width In | Weight lb (kg) | Jaw Material | Included Adapters |
| G1061 |
1200 (5.3) |
0.75 |
0.8 (0.36) |
Serrated Steel (Hardness: 416 SS/ 55 RC) |
#10-32F to 5/16-18M adapter, #10-32 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
| G1061-1 |
200 (0.9) |
0.375 |
0.5 (0.23) |
||
| G1061-2 |
2000 (9.0) |
1 |
0.9 (0.41) |
5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
|
| G1061-3 |
50 (0.25) |
1 |
Neoprene Rubber (Durometer: 70) |
5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
The Mark-10 G1061 Wedge Grips’ jaws have been designed to prevent jamming and to improve grip. To this end, the jaws are mounted on rollers and do not slide along the surface of the housing like traditional-style wedge grips.
An ergonomic rack and pinion lever mechanism ensure that the Mark-10 G1061 Wedge Grips’ jaws can be opened easily and smoothly.
Finally, these ergonomic, fully enclosed and versatile Mark-10 G1061 Wedge Grips feature a thru slot able to accommodate samples of unlimited width.
The Mark-10 G1061 Wedge Grips are easy-to-use, ergonomic and effective tensile test grips.
Mark-10 G1061 Wedge Grips Key Features
- Designed for use with Mark-10 force gauges and test stands
- Optimised for performing tensile tests on a variety of materials including paper and film
- Four models available that vary in regards to size, capacity and jaw material
- Models with serrated steel jaws are available
- Models with rubberised jaws are available
- Jaws have been designed to prevent jamming and to improve grip
- Jaws are mounted in rollers
- Ergonomic rack and lever for smoothly and easily opening the jaws
- Fully enclosed
- Thru slot able to accommodate samples of unlimited width
- Easy-to-use, ergonomic and effective tensile test grips
What’s Included?
- Your Choice of Mark-10 G1061 Wedge Grip
Technical Information
Specification
Mark-10 G1061 Wedge Grips Technical Specifications
| Model | Capacity lbF (kN) | Width In | Weight lb (kg) | Jaw Material | Included Adapters |
| G1061 |
1200 (5.3) |
0.75 |
0.8 (0.36) |
Serrated Steel (Hardness: 416 SS/ 55 RC) |
#10-32F to 5/16-18M adapter, #10-32 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
| G1061-1 |
200 (0.9) |
0.375 |
0.5 (0.23) |
||
| G1061-2 |
2000 (9.0) |
1 |
0.9 (0.41) |
5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
|
| G1061-3 |
50 (0.25) |
1 |
Neoprene Rubber (Durometer: 70) |
5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts |
