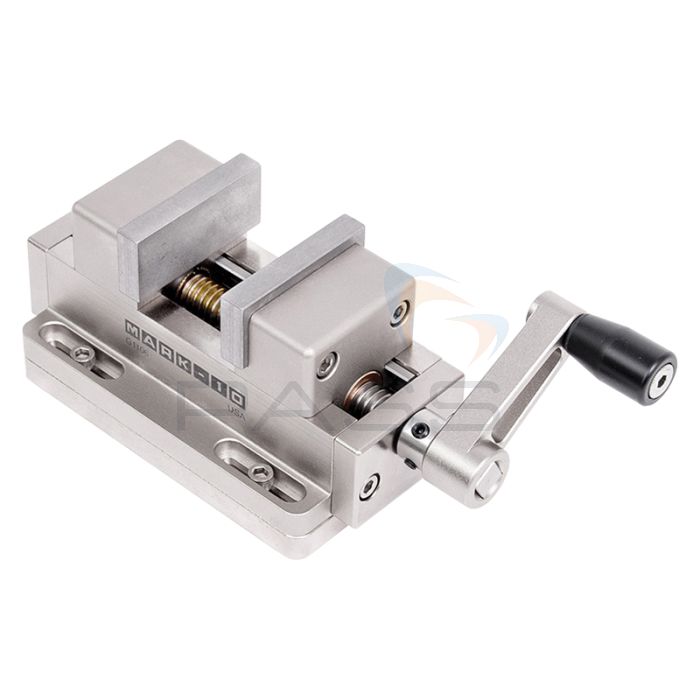

Mark-10 G1106 Vice Grip, Self-Centering

This Mark-10 G1106 general-purpose self-centering vice can be used in a wide range of tension and compression testing applications. A wide opening range accommodates large and unique samples.

Rugged design permits testing up to 500lbF (2,500N). Smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull-testing applications. Replaces Model G1070.

Key Features

• Removable jaws
• Self-centering design
• Ergonomic lever, smooth operation
• Mounts directly to the following test frames (motorized test frames recommended):
  F105, F305, F505, F755, and F1505 test frames.
  ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands.
  Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.
• Maximum Tension Force: 500 lbF [2,500 N]
• Weight: 3 lb [1.4 kg]

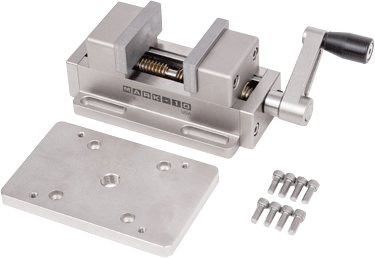

What's Included?

• (1)G1106 vice
• (1) Vice assembly
• (1) Test stand adapter plate
• (8) #10-32 mounting screws
